Washing Machine Stator Assembly

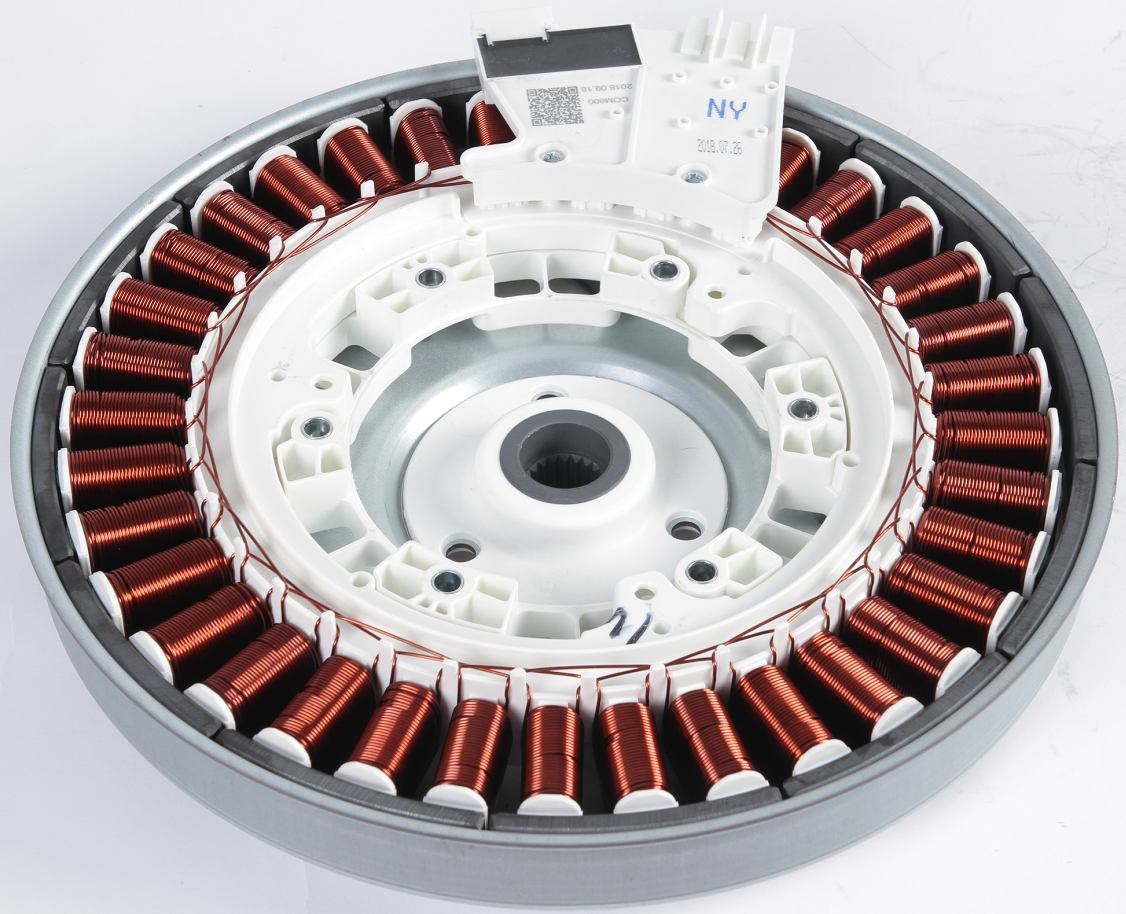

This is a stator assembly designed for direct drive washing machines. It generates a magnetic field when energized, which interacts with the rotor to drive the washing machine's drum.
Technical Specifications
Overview
High-Efficiency Direct Drive Stator
This stator assembly is a critical component for direct drive washing machine motors, engineered to generate the powerful magnetic fields necessary for drum rotation. By eliminating the need for belts or gears, this design ensures quieter operation, reduced vibration, and enhanced reliability. The assembly features densely packed copper coil windings within a robust plastic housing and metal frame, optimized for maximum torque and energy efficiency.
Technical Specifications
Production Identification
| Model ID | Production Date |
|---|---|
| CCW600 | 2018.06.18 |
| COM800 | 2018.09.18 |
- Motor Compatibility
- Direct Drive (DD)
- Construction Materials
- Copper WindingsPlastic HousingMetal Frame
Features
Key Operational Benefits
- Eliminates belt and gear wear
- Quieter operation
- High torque efficiency
- Integrated electrical connector
- Robust mounting points
