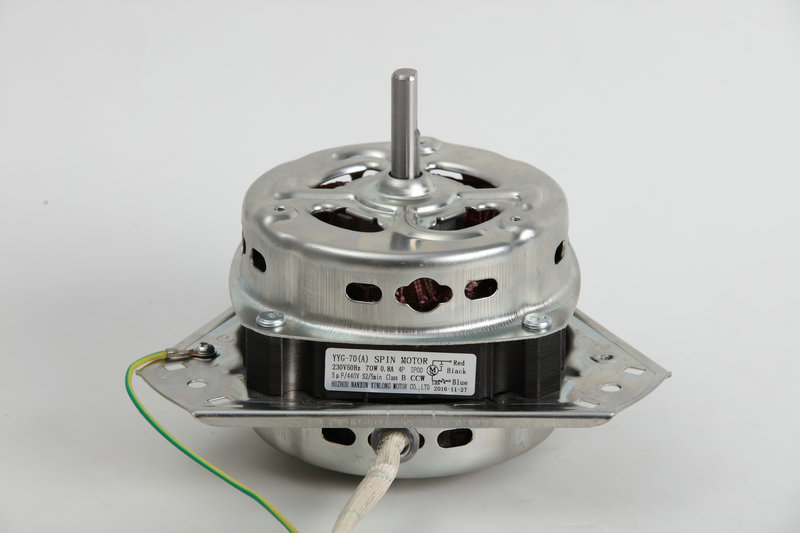

Washing Machine Spin Motor 70W 1700 RPM
This spin motor is designed for use in washing machines. It operates at 230V/50Hz with a power rating of 70W and a speed of 1700 RPM.
Technical Specifications
Product Overview
High-Efficiency Spin Motor
This 70W spin motor is engineered for reliable performance in twin tub washing machines. Featuring a robust metal housing and a durable shaft, it is designed for seamless integration and long-lasting operation in household appliances. The unit provides consistent rotational power with a speed of 1700 RPM, ensuring efficient performance for your laundry equipment.
Technical Specifications
Electrical Characteristics
230 V
Voltage
50 Hz
Frequency
0.8 A
Rated Current
Mechanical Details
| Feature | Specification |
|---|---|
| Poles | 4P |
| Insulation Class | Class B |
| Rotation | CCW |
| Capacitor | 5µF/440V |
- Rated Power
- 70 W
- Speed
- 1700 RPM
Application & Features
Wiring Color Codes
- Red
- Black
- Blue
- Key Features
- Robust Metal HousingDurable ShaftHigh-EfficiencyCompact Design
