Washing Machine Heating Element
This heating element is designed for use in washing machines. It provides efficient and reliable heating for optimal washing performance.
Technical Specifications
Product Overview
High-Performance Washing Machine Heating Element

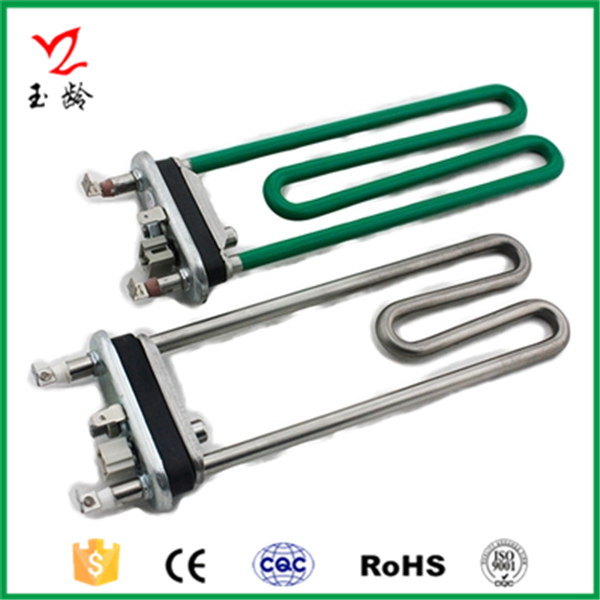

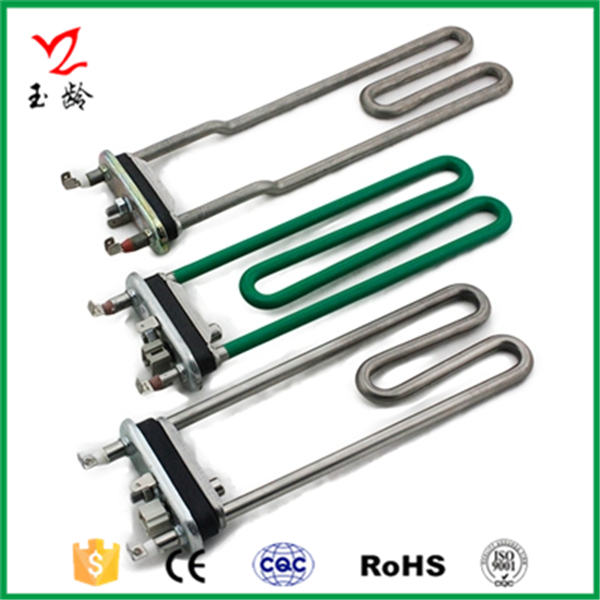

This premium tubular heating element is engineered for efficient and reliable water heating in professional washing machine applications. Featuring a robust double U-shaped configuration, it ensures optimal heat distribution and long-lasting performance. The component is built with high-grade materials, including a magnesium oxide core and high-resistance wiring, to withstand harsh operating conditions and ensure secure electrical integration.
Technical Specifications
Sheath Material Options
- SUS316L
- Copper coating Ni
- SUS321
- Incoloy 804
- Incoloy 800
Power Performance
230 V
Voltage
2 KW
Min Wattage
5.5 KW
Max Wattage
- Available Tube Diameters
- 6.5mm6.6mm7.0mm8.0mm8.5mm10.0mm
Components & Materials
Internal Materials
| Component | Material |
|---|---|
| Resistance Powder | Magnesium Oxide |
| Resistance Wire | Ni80Cr20 |
| Faston Terminal | Nickel plated iron |
| Leads | Stainless steel |
Compliance & Certification
Certifications
CECQCRoHSISO 9001
