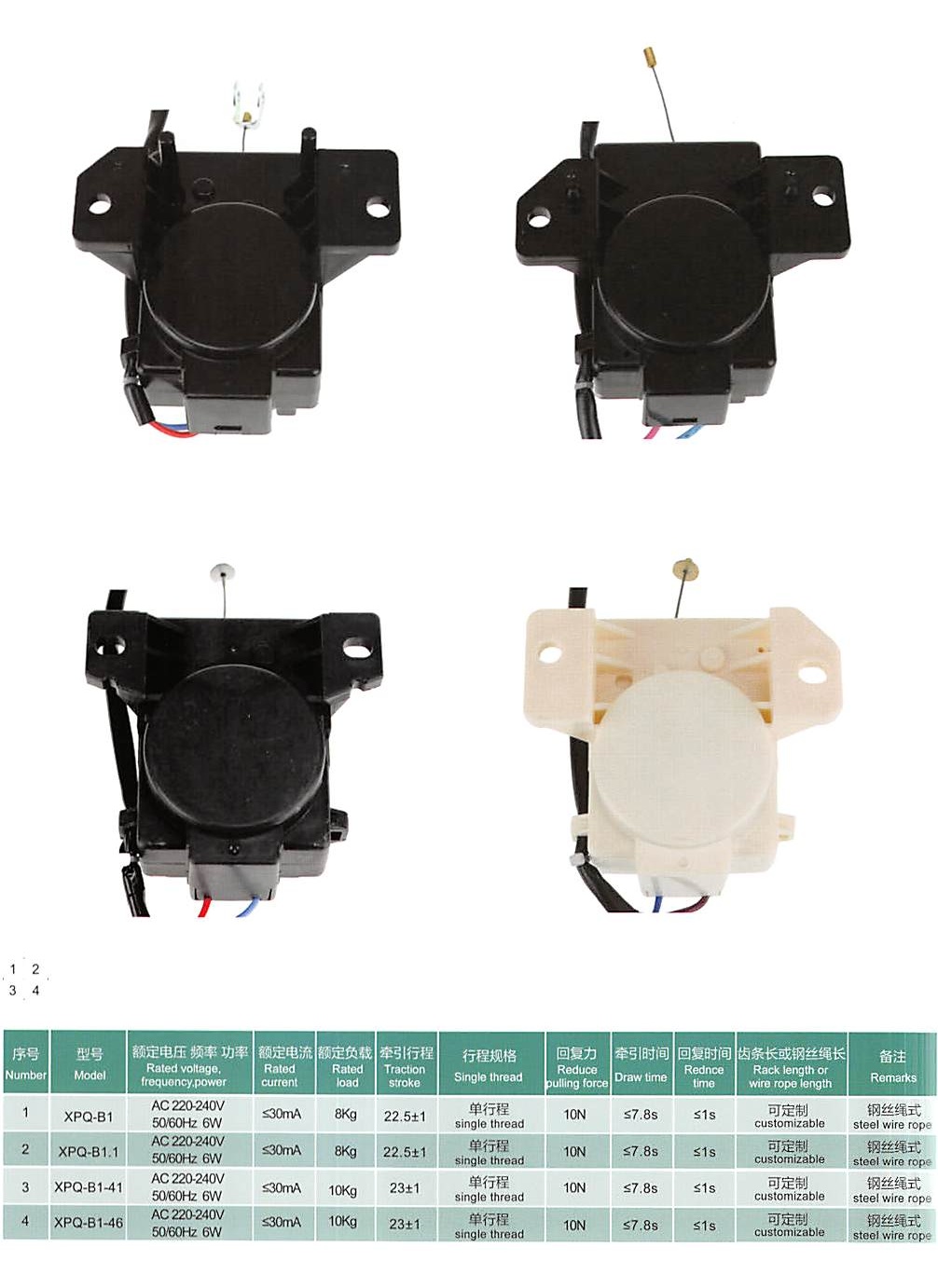

Washing Machine Drain Pump Motor Assembly
This is a drain pump and motor assembly designed for washing machines. It operates on AC 220-240V at 50/60Hz with a power consumption of 6W.
Technical Specifications
Product Overview
High-Efficiency Drain Pump Motor
This versatile washing machine drain pump and motor assembly is engineered for reliable operation across multiple model variants. Featuring a standard 220-240V power input and a low power consumption of 6W, these units are built to withstand heavy-duty use with rated loads up to 10Kg. The assembly utilizes a durable steel wire rope mechanism, ensuring consistent performance and long service life.
Electrical Specifications
Core Electrical Metrics
240 V
Max Rated Voltage
6 W
Power Consumption
30 mA
Rated Current
Technical Performance
Model Specifications
| Model | Rated Load | Traction Stroke |
|---|---|---|
| XPQ-B1 | 8Kg | 22.5±1 |
| XPQ-B1.1 | 8Kg | 22.5±1 |
| XPQ-B1-41 | 10Kg | 23±1 |
| XPQ-B1-46 | 10Kg | 23±1 |
| XPQ-B40 | 8Kg | 23±1 |
Design Features
Mechanical Configuration
- Steel wire rope mechanism
- Single thread stroke
- Customizable rack or wire rope length
Operating Times
Cycle Timing
7.8 s
Max Draw Time
1 s
Max Reduce Time
