Washing Machine Clutch Assembly
This clutch assembly is designed for use in washing machines. It is available in multiple models with different specifications.
Technical Specifications
Overview
Professional Washing Machine Clutch Assembly
This high-performance clutch assembly is engineered for vertical axis washing machines, ensuring smooth operation and durability. Available in multiple configurations to suit different rated capacities and washing styles, these units provide precise torque control and reliable braking. Designed for professional maintenance and original equipment integration, these assemblies support both standard and hand-washing wash cycles.
Technical Specifications

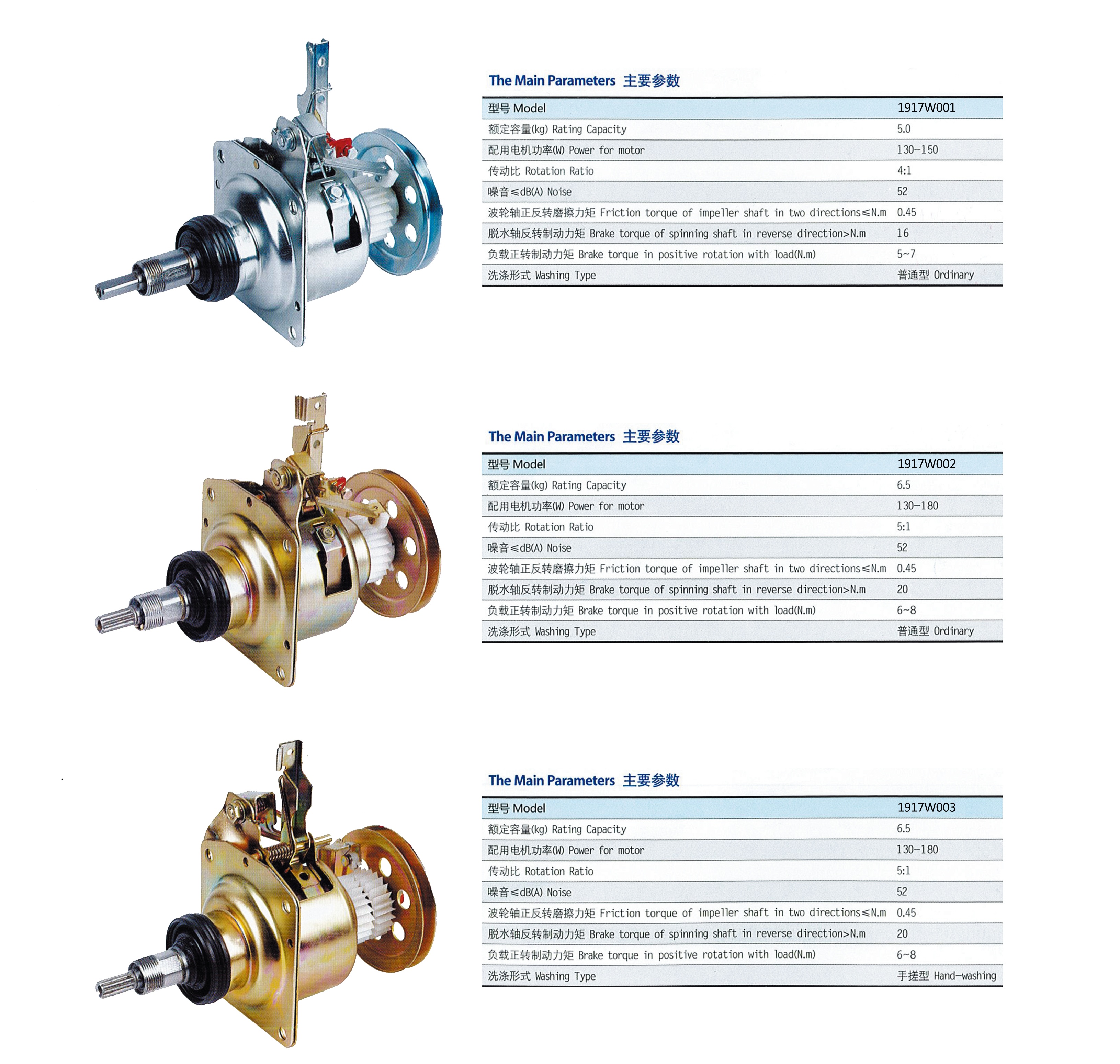

Model Specifications
| Model | Capacity (kg) | Power (W) | Ratio | Wash Type |
|---|---|---|---|---|
| 1917W001 | 5 | 130-150 | 4:1 | Ordinary |
| 1917W002 | 6.5 | 130-180 | 5:1 | Ordinary |
| 1917W003 | 6.5 | 130-180 | 5:1 | Hand-washing |
| 1917W004 | 5 | 130-180 | 5:1 | Ordinary |
| 1917W005 | 6.5 | 130-180 | 5:1 | Ordinary |
| 1917W006 | 6.5 | 130-180 | 5:1 | Hand-washing |
Performance Metrics
Noise Level
52 dB(A)
Max Noise
Torque Specifications
- Impeller shaft friction torque: ≤0.45 N.m
- Spinning shaft brake torque (reverse): >16-20 N.m
- Load positive rotation brake torque: 5-8 N.m
