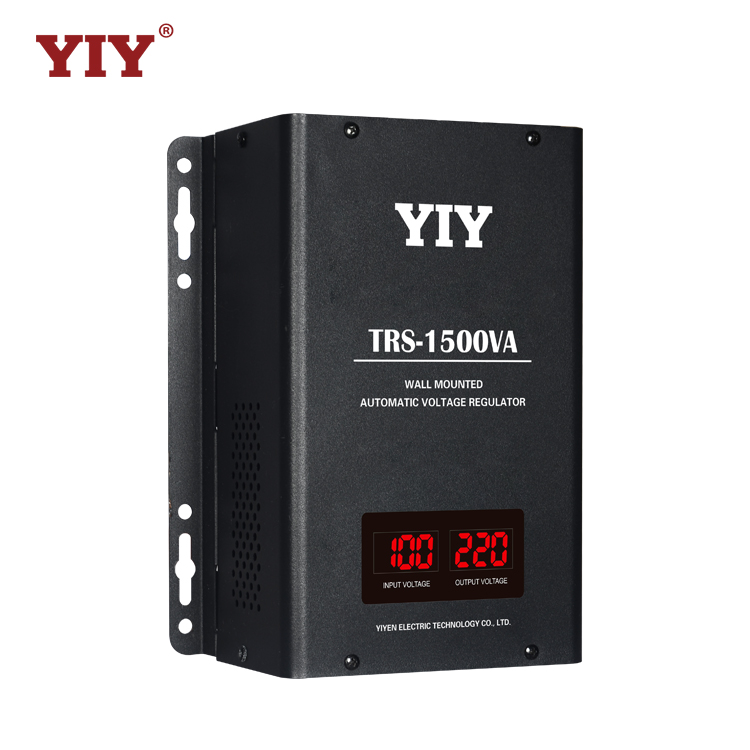

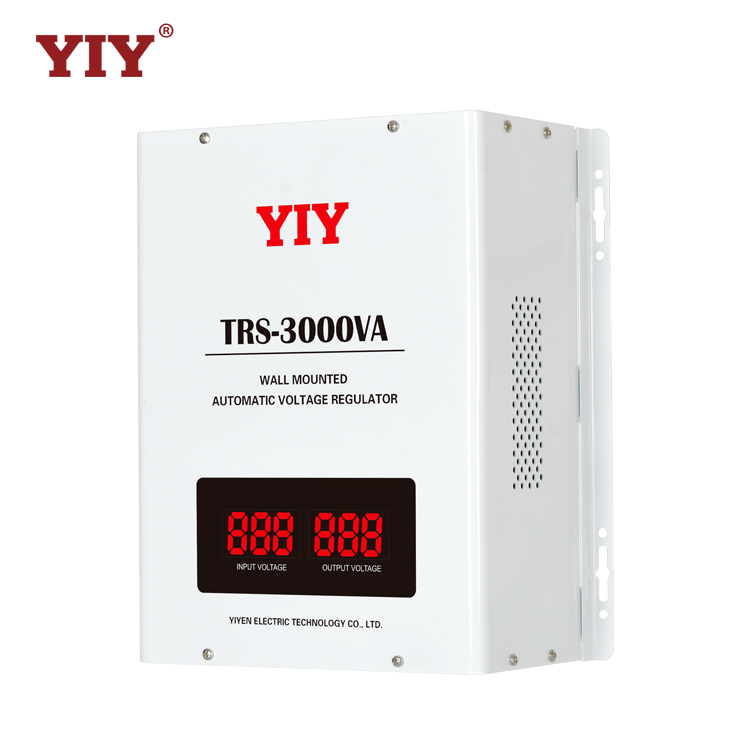

Wall-Mounted Single-Phase Voltage Regulator
This wall-mounted, single-phase voltage regulator automatically maintains a stable output voltage. It protects sensitive equipment from voltage fluctuations, ensuring consistent power delivery.
Technical Specifications
Overview
Smart Voltage Regulation
The wall-mounted single-phase voltage regulator utilizes advanced MCU control technology to deliver precise voltage output for sensitive electronic equipment. Designed for high efficiency and reliability, it features a fast response time of less than 60ms and a robust toroidal transformer. This unit ensures comprehensive protection against power irregularities, making it an ideal choice for residential, office, and light industrial applications.
Technical Specifications
- Input Voltage Range
- 90V - 270V
- Output Voltage Tolerance
- ±10%
- Capacity Range
- 500VA - 15KVA
- Efficiency
- 95 %
- Operating Frequency
- 50Hz / 60Hz

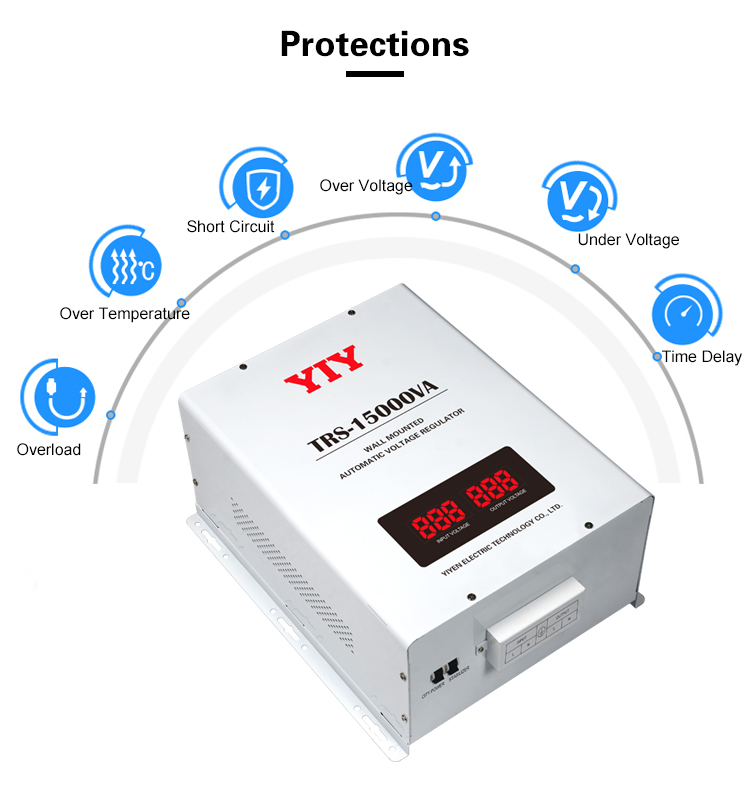

Protection Features
- Key Protection Systems
- Over VoltageLow VoltageOver TemperatureOverloadShort CircuitRelay Failure Detection
- Cooling System
- Integrated Fan
Key Features
Key Performance Metrics
60 ms
Response Time
5 s
Default Delay Time
Application
Suitable Applications
- Computer and IT Equipment
- Medical Devices
- Industrial Automation Tools
- Home Appliances
- Lighting Systems
- Security and Alarm Systems
