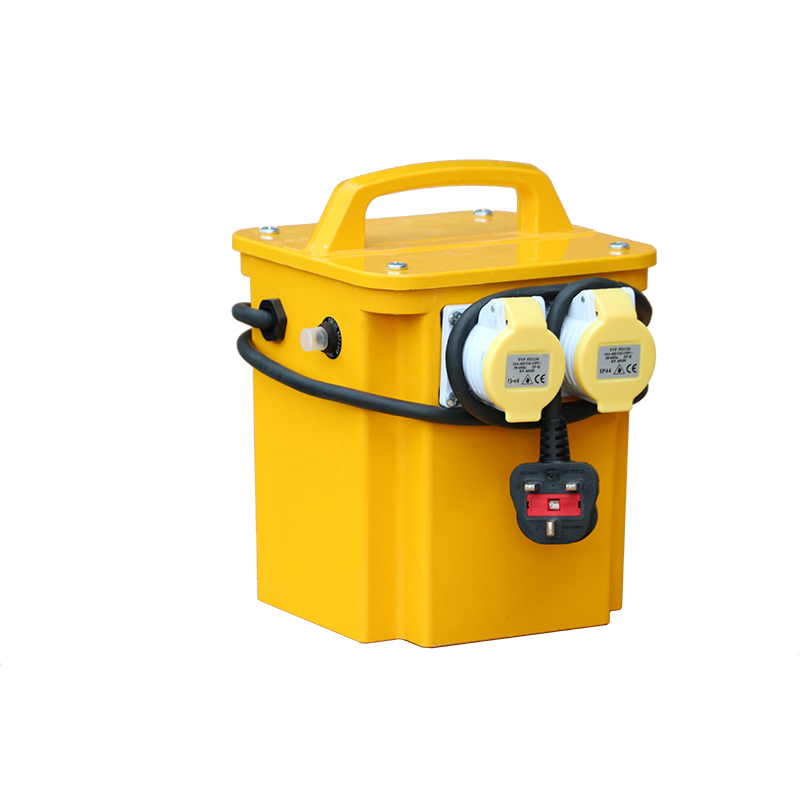

Portable Step-Down Transformer
This portable step-down transformer provides safe and reliable power distribution on construction sites. It steps down voltage to a safer level for powering tools and equipment.
Technical Specifications
Product Overview
Professional Portable Power Solutions
These robust, portable transformers are designed to provide safe and reliable power distribution for heavy-duty construction and industrial site use. By stepping down supply voltage to a 110V center-tapped-to-earth (CTE) output, they offer essential isolation from the mains and significantly reduce the risk of electrical shock. Available in a variety of configurations, these units ensure compliance with reduced low-voltage regulations and are ideal for powering professional construction and industrial tools.
Technical Specifications
Key Performance Metrics
230 V
Standard Input Voltage
110 V
Standard Output Voltage

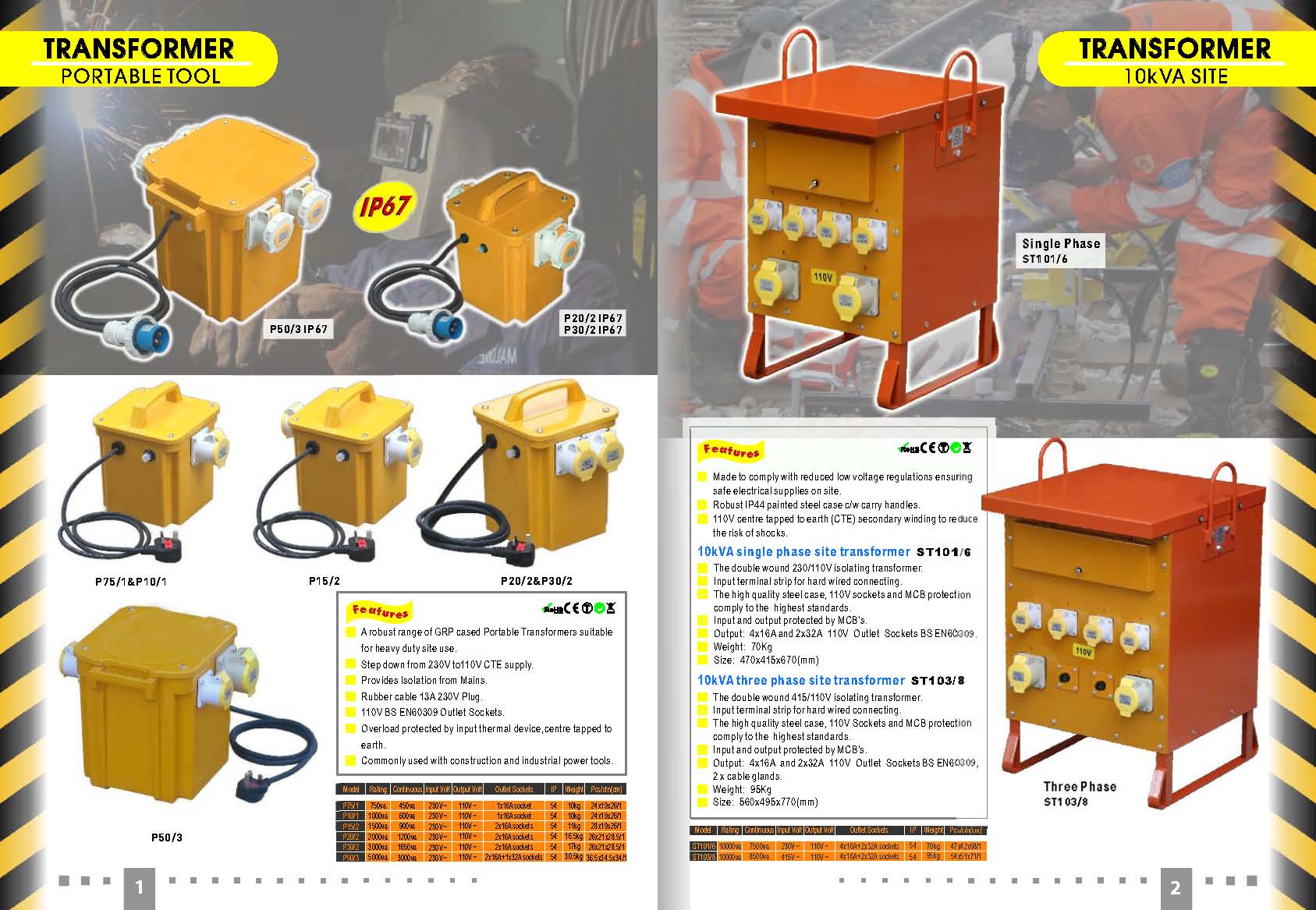

Model Specifications
| Model | Rating | Weight |
|---|---|---|
| P75/1 | 750 | 10kg |
| P15/2 | 1,500 | 11kg |
| P30/2 | 3,000 | 17kg |
| ST101/6 | 10,000 | 70kg |
| ST103/8 | 10,000 | 95kg |
- Safety Compliance
- CEBS EN60309IP44IP54IP67
Features
Core Features
- Robust GRP or painted steel enclosure
- Center tapped to earth (CTE) secondary winding
- Overload protection via input thermal device or MCB
- Heavy-duty rubber cable with 13A plug
- Weatherproof outlet sockets with covers
