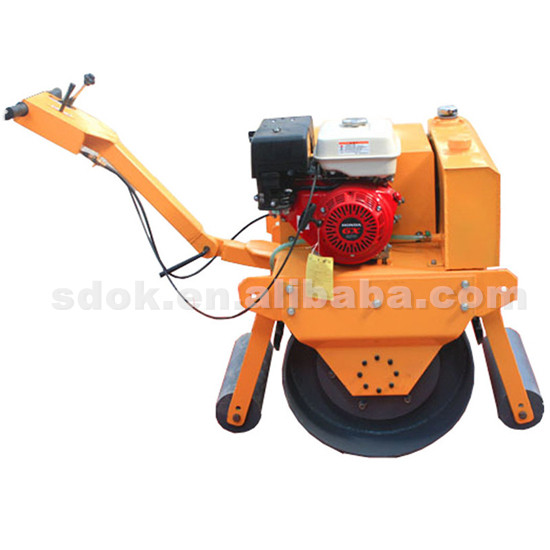

Walk-Behind Vibratory Road Roller
This vibratory road roller is suited for maintaining various roads, expressway shoulders, and parking areas. The single drum roller is applicable for compaction of narrow areas like pipeline channels and drainage trenches.
Technical Specifications
Product Overview
Compact Vibratory Road Roller
This walk-behind single steel wheel vibratory roller is engineered for high-performance compaction tasks in confined spaces. It is ideal for asphalt surfaces, gravel foundations, and sandy soil, making it a reliable tool for small-to-medium construction, road maintenance, and landscaping projects. Powered by a high-efficiency gasoline engine, this unit delivers consistent excitation force and operational maneuverability.
Technical Specifications
Performance Metrics
25 KN
Exciting Force
70 Hz
Vibration Frequency
0.6 mm
Nominal Amplitude
4 km/h
Max Walk Speed
Engine Specifications
| Attribute | Detail |
|---|---|
| Engine Model | GX160 |
| Power Output | 5.5 Hp |
| Engine Speed | 3600 rpm |
| Cooling System | Air cooling 4 stroke |
Physical Dimensions
Physical Dimensions
- Overall Size: 1300x700x1100mm
- Total Length (Flat): 1420mm
- Total Height (Stand): 1100mm
- Weight: 420KG
- Water Tank Capacity: 17L
Product Features
- Equipment Features
- Bidirectional hydraulic driveSingle steel wheelVibratory compactionGasoline-powered
