Technical Specifications

Product Overview

Compact Performance for Road Maintenance

This professional-grade walk-behind milling machine is engineered for high-efficiency concrete and asphalt surface preparation. Powered by a robust gasoline engine, it delivers consistent power for demanding road maintenance tasks. The unit features an adjustable milling depth and a replaceable tungsten alloy knife drum, ensuring precise material removal and long-term durability in various site conditions.

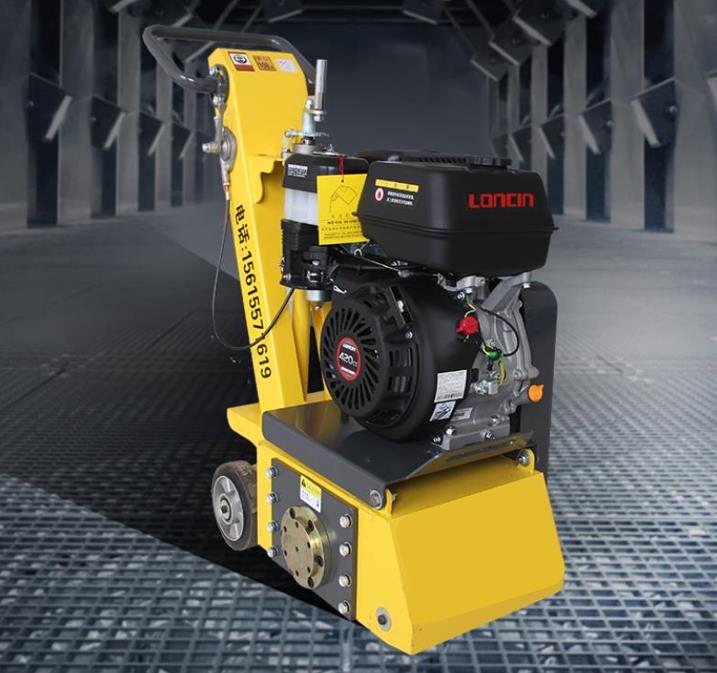

Overview of the road milling machine on site

Technical Specifications

Work Efficiency

200 ㎡/h

Surface Coverage

Milling Width: 260 mm
Milling Depth: 0-15mm
Engine Power: 7 KW
Machine Weight: 170 kg
Dimensions (L*W*H): 1125*500*1125mm

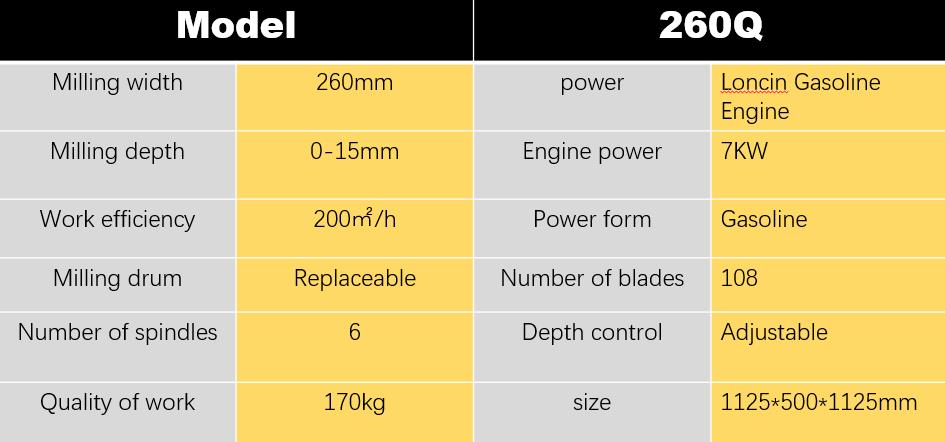

Table showing technical specifications for the milling machine

Features & Construction

Milling Drum Details

Replaceable drum design
108 Tungsten alloy blades
6 spindles

Operational Features: Adjustable depth controlAutomatic walkingHandle adjustmentWalk-behind design

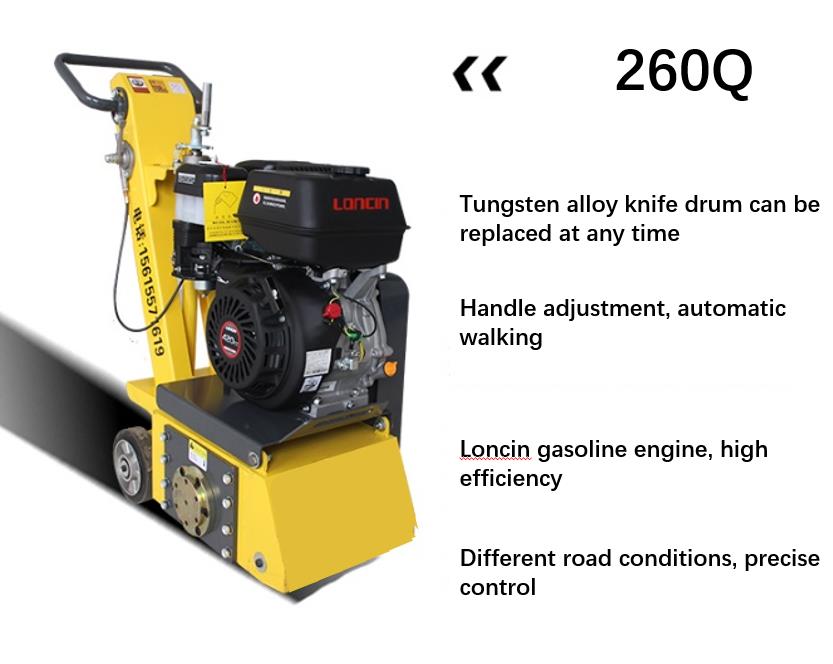

Diagram highlighting operator controls and drum replacement

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Walk-Behind Gasoline Road Milling Machine

This walk-behind milling machine is powered by a gasoline engine, providing strong power and stable performance. Its milling cutter head uses durable tungsten alloy blades for precise and continuous milling.

Request a Quote Download PDFPDF
