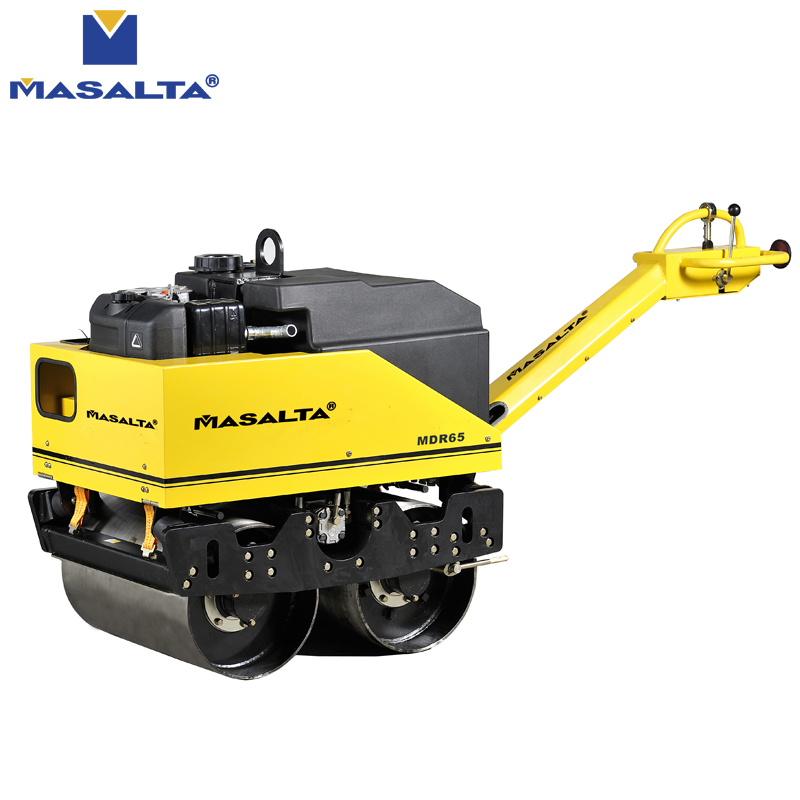

Walk Behind Double Drum Vibratory Road Roller
This walk-behind road roller is designed for rugged use in the construction industry. It delivers excellent compaction to gravel and asphalt surfaces in both large and confined areas.
Technical Specifications
Product Overview
Rugged Compaction Performance

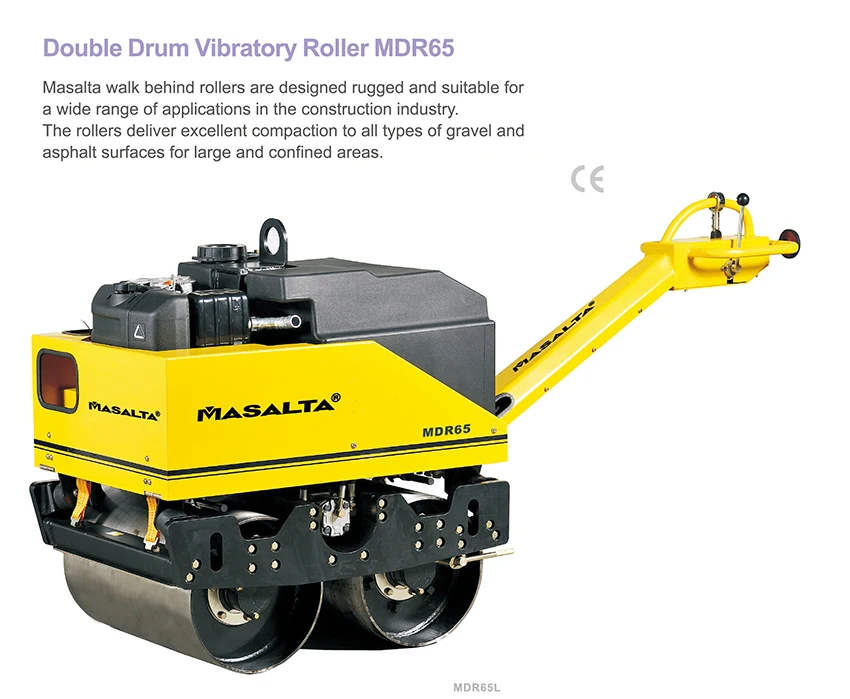

Designed for versatility in the construction industry, this double drum vibratory roller delivers excellent compaction results on both gravel and asphalt surfaces. Its robust construction makes it suitable for both large open areas and confined spaces where maneuverability is critical. The fully hydraulic-drive system eliminates the need for frequent chain or belt maintenance, ensuring consistent, infinitely variable working speeds for optimal efficiency.
Key Features
Safety & Control

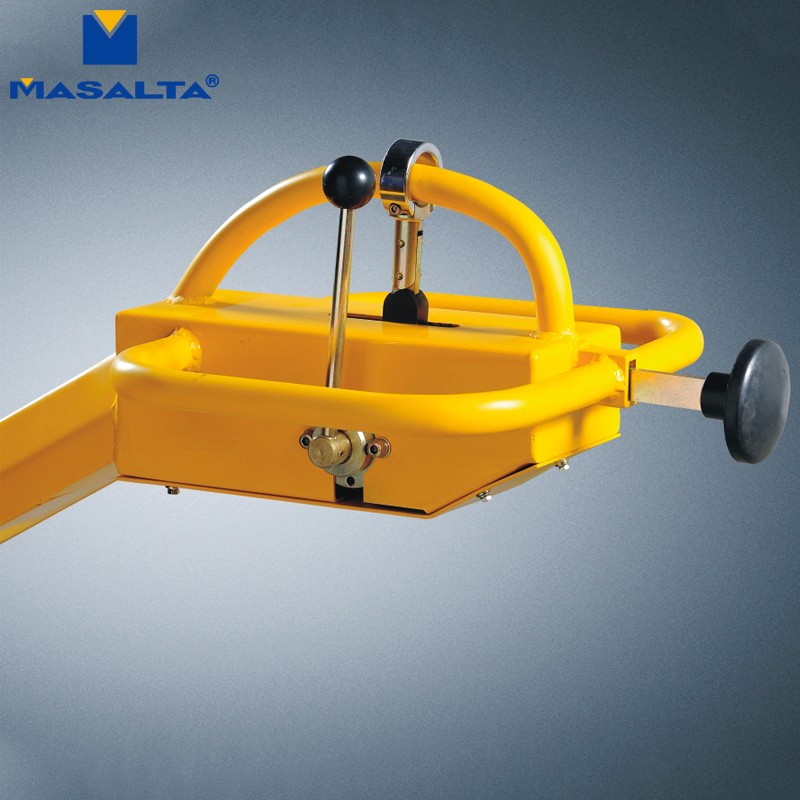

- Deadman control lever for reversing protection
- Mechanical parking brake
- Anti-vibration controls for reduced operator fatigue
- Easy-to-reach vibration on/off switch
Operational Advantages
- Fully hydraulic-drive system for travel and vibration
- Multi-position handle for operator comfort and transport
- Built-in oil cooler for increased productivity
- Dual scraper bars on each drum for clean operation on asphalt
- Unique clutch/pump system for easy cold weather starting
Technical Specifications
Performance Metrics
54 N/cm
Static Linear Force
21 kN
Centrifugal Force
3,300 vpm
Frequency
Model Specifications
| Feature | MDR65L | MDR65A |
|---|---|---|
| Engine Type | Lombardini 15LD440 | Hatz 1B40 |
| Power (kW) | 8.1 | 7.5 |
| Power (hp) | 11 | 10.2 |
| Weight (kg) | 718 | 721 |
General Information
- Certifications
- CE
