Vortex Water Pump
This vortex pump is designed for transferring clean water and other liquids with similar properties. The pump features a compact design, high efficiency, and reliable performance.
Technical Specifications
Product Overview

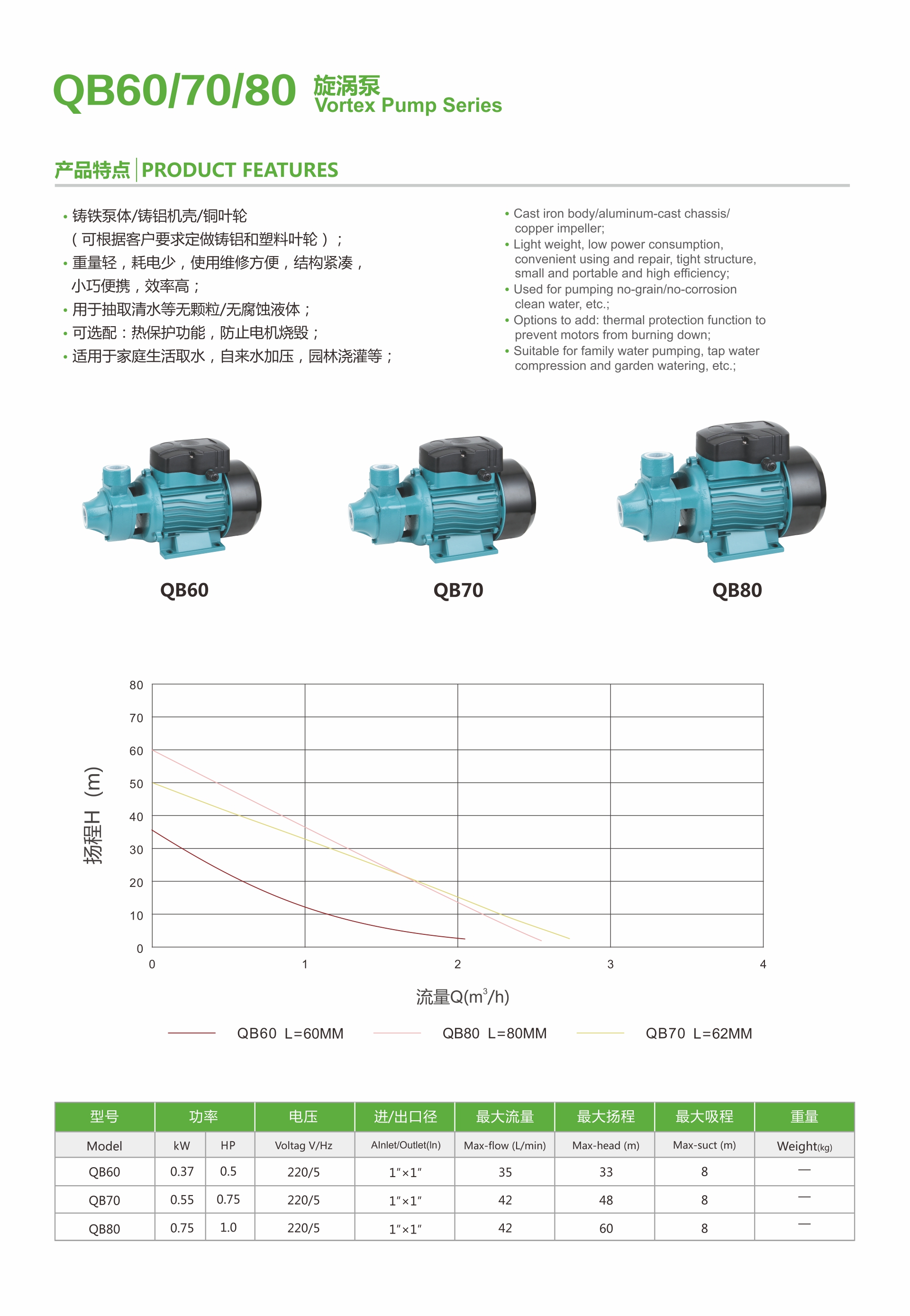

Vortex Water Pump Series
The QB series vortex pumps are designed for efficient transfer of clean water in residential and light commercial settings. Constructed with a durable cast iron body and copper impeller, these pumps offer a compact, lightweight, and portable solution for various fluid transfer needs. They are ideal for applications such as household water supply, tap water compression, and garden irrigation.
Technical Specifications
Performance Metrics
0.75 kW
Max Power
60 m
Max Head
42 L/min
Max Flow
Model Specifications
| Model | Power (kW) | Max Flow (L/min) | Max Head (m) |
|---|---|---|---|
| QB60 | 0.37 | 35 | 33 |
| QB70 | 0.55 | 42 | 48 |
| QB80 | 0.75 | 42 | 60 |
Features
- Key Features
- Cast iron bodyAluminum-cast chassisCopper impellerCompact designOptional thermal protection
Operational Details
- Connection Size
- 1 inch x 1 inch
- Power Supply
- 220V/50Hz
