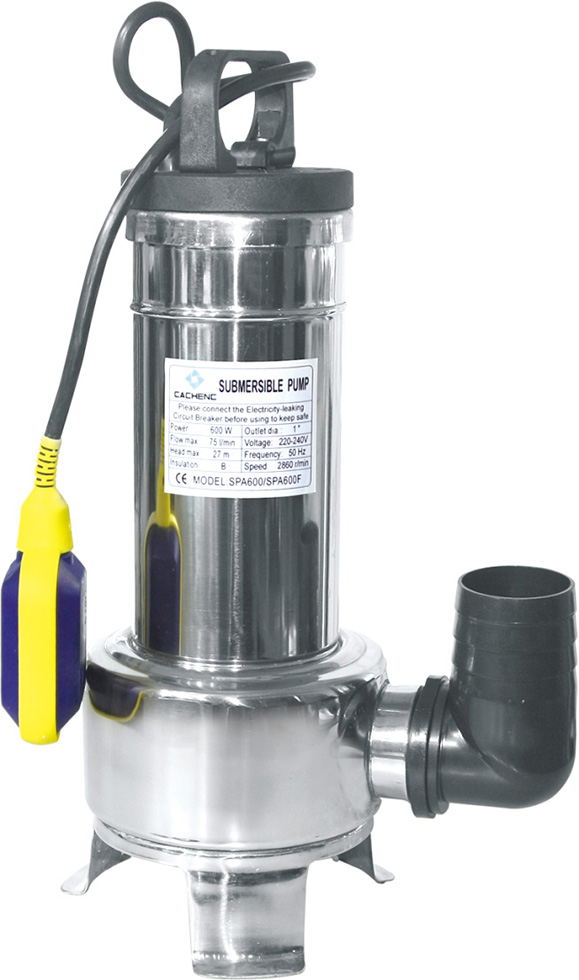

Vortex Submersible Sewage Water Pump
This submersible pump is designed to handle dirty water and sewage in domestic and civil applications. It is fitted with a stainless steel double vane impeller, and is suitable for pumping liquids containing suspended solids, including short fibres.
Technical Specifications
Product Overview
High-Efficiency Vortex Sewage Pump
This vortex submersible pump is engineered for reliable sewage water removal, featuring a specialized vortex impeller design that efficiently handles fluids containing solids and fibrous materials to prevent clogging. Built with robust, corrosion-resistant materials, it offers exceptional durability and a long service life in demanding environments. It is an ideal solution for sewage treatment plants, drainage systems, and industrial wastewater management.
Performance Metrics
Key Performance Indicators
600 W
Power
75 L/min
Max Flow Rate
27 m
Max Head
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 220-240V |
| Frequency | 50Hz |
| Rotational Speed | 2860 r/min |
| Insulation Class | B |
Operating Limits
- Max. depth: 5m
- Max. fluid temperature: 40℃
- Max. ambient temperature: 40℃
- Continuous duty
Model Numbers
SPA600SPA600F
- Safety Features
- Electricity-leaking circuit breakerSubmersibleCorrosion-resistant
- Outlet Diameter
- 1 inch
