VGSM06 Gear Motor
This gear motor is designed for audio-video applications, providing reliable and precise motion control. Its compact design and durable construction allow for easy integration into existing systems.

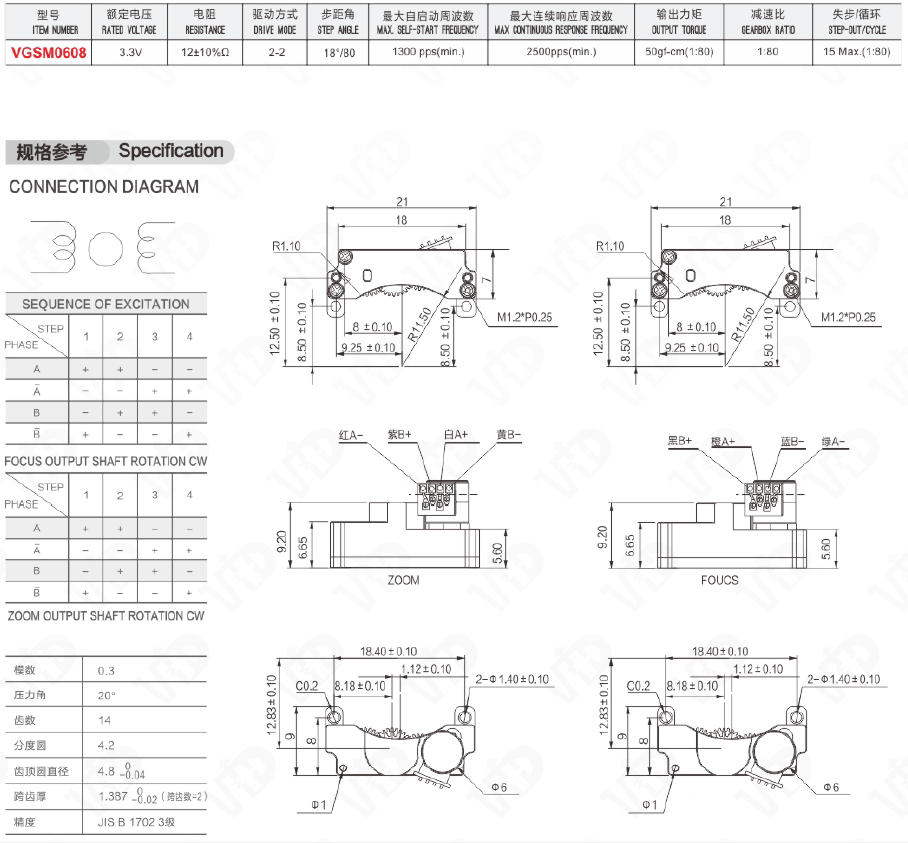

Technical Specifications
Overview
Precision Gear Motor for AV Applications
The VGSM06 is a specialized gear motor engineered for precise motion control in audio-video equipment. Featuring a compact design and durable construction, it integrates seamlessly into electronic systems requiring reliable rotational movement. With a gearbox ratio of 1:80 and adherence to JIS B 1702 3 grade manufacturing standards, this motor ensures consistent performance for zoom and focus functions.
Electrical Specifications
- Rated Voltage
- 3.3 V
- Resistance
- 12±10%Ω
- Drive Mode
- 2-2
Performance Metrics
Key Performance Metrics
18 °/80
Step Angle
50 gf-cm
Output Torque
1,300 pps
Max Self-Start Frequency
2,500 pps
Max Continuous Response Frequency
Mechanical Specifications
Manufacturing Standard
JIS B 1702 3 Grade
- Gearbox Ratio
- 1:80
- Step-out/Cycle
- 15 Max.(1:80)
Gear Specifications
Gear Technical Data
| Parameter | Value |
|---|---|
| Module | 0.3 |
| Pressure Angle | 20° |
| Number of Teeth | 14 |
| Pitch Circle | 4.2 |
| Addendum Circle Diameter | 4.8-0.04 |
