VGSM08 Gear Motor with Dual Potentiometers
This gear motor features dual potentiometers for precise control and feedback. It is designed for audio-video applications and includes a mounting bracket and wire harness.
Technical Specifications
Overview

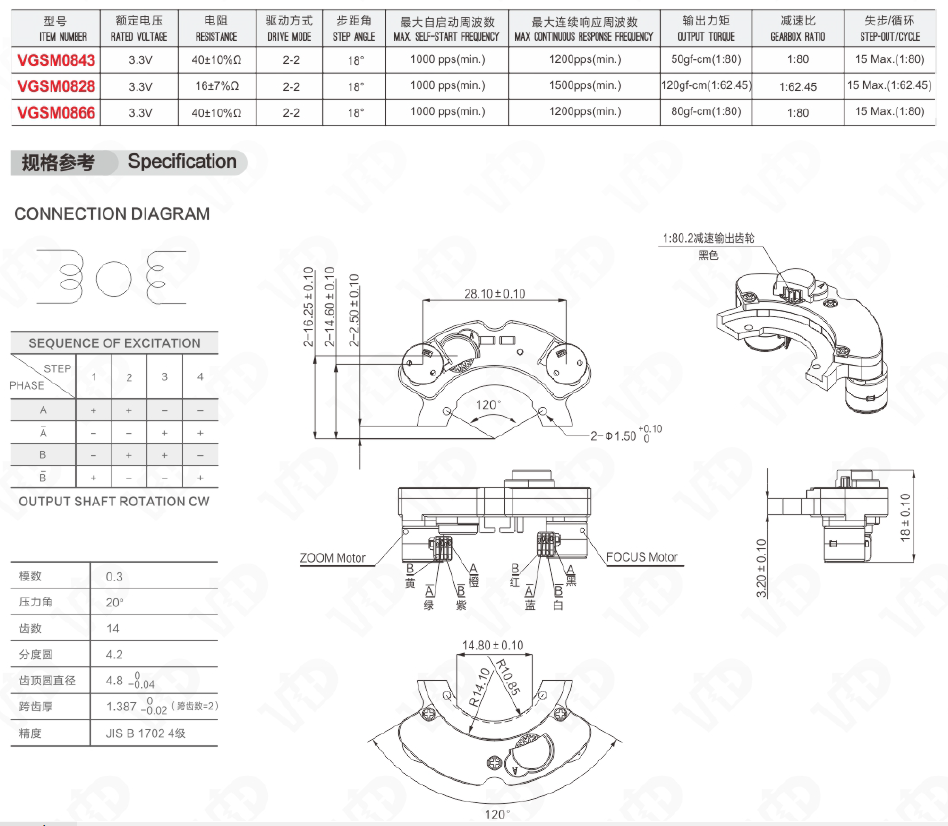

VGSM08 Series Gear Motor
The VGSM08 series is a precision gear motor assembly designed for demanding audio-video applications requiring accurate control and feedback. Available in multiple configurations (VGSM0843, VGSM0828, and VGSM0866), these motors feature dual potentiometers and robust mounting brackets. Engineered with a 0.3 module gear system and high-precision JIS B 1702 4th grade standards, they ensure reliable performance and precise motion control.
Electrical Specifications
- Rated Voltage
- 3.3 V
- Drive Mode
- 2-2
Performance Metrics
Key Performance Metrics
18 °
Step Angle
1,000 pps
Max Self-Start Frequency
Model Comparison
Model Specifications
| Model | Resistance | Gear Ratio | Output Torque |
|---|---|---|---|
| VGSM0843 | 40±10%Ω | 1:80 | 50gf-cm |
| VGSM0828 | 16±7%Ω | 1:62.45 | 120gf-cm |
| VGSM0866 | 40±10%Ω | 1:80 | 80gf-cm |
Mechanical Design
Gear Specifications
- Module: 0.3
- Pressure Angle: 20°
- Number of Teeth: 14
- Indexing Circle: 4.2
- Precision: JIS B 1702 4th Grade
- Compliance & Quality
- JIS B 1702 4th Grade
