Vertical Water Pressure Tank

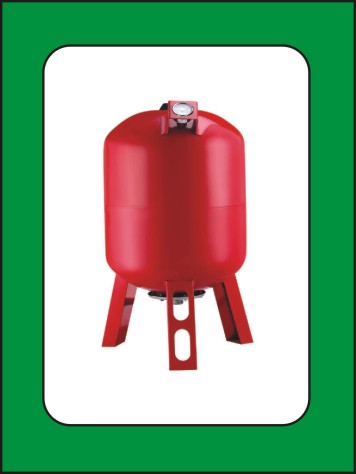

This vertical pressure tank maintains consistent water pressure in various systems. Its durable steel construction includes sturdy legs for stable floor mounting and a pressure gauge for monitoring internal pressure.
Technical Specifications
Product Overview
Professional Vertical Pressure Tanks
These vertical pressure tanks are engineered to maintain stable and consistent water pressure within diverse industrial and commercial systems. Featuring a robust red-painted steel construction supported by a three-leg base, these units offer durability and reliable floor mounting. They are ideally suited for water well systems, irrigation networks, and applications requiring sustained pressurized water storage.
Technical Specifications
Key Performance Metrics
8 bar
Maximum Pressure
99 °C
Maximum Temperature
1.8 bar
Air Pressure Range
Capacity and Dimensions
| Capacity (L) | Diameter (mm) | Height (mm) |
|---|---|---|
| 50 | 265 | 510 |
| 60 | 265 | 580 |
| 80 | 383 | 700 |
| 100 | 390 | 790 |
| 200 | 455 | 830 |
- System Connection
- 3/4" to 1" G
Design Features
- Design and Build
- Vertical OrientationSteel ConstructionFloor StandingThree-leg BaseIntegrated Pressure Gauge
