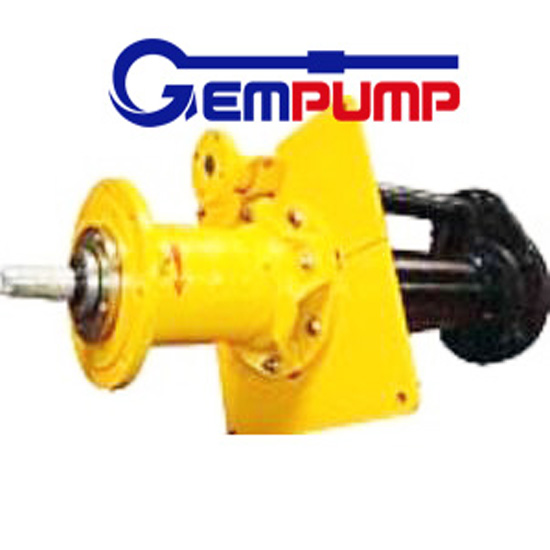

Vertical Spindle Sump Slurry Pump
This vertical slurry pump is submerged in a sump for operation. It is engineered to deliver abrasive, large particle, and high-density slurries without the need for shaft seals or sealing water.
Technical Specifications
Product Overview
Vertical Spindle Sump Slurry Pump
This vertical centrifugal slurry pump is designed for immersion directly into the liquid, featuring a vertically downward inlet and an upward outlet. Engineered for durability, it operates without the need for shaft seals or seal water, making it highly effective even in conditions of insufficient suction. Constructed with wear-resistant materials, it is specifically built to handle abrasive, coarse particles, and high-concentration slurries in demanding industrial environments.
Technical Specifications
- Discharge Diameter
- 40 to 150 mm (2" to 6")
- Max Flow Rate
- 450 m3/h
- Max Total Head
- 36 m
- Transmission Types
- Belt Drive (BD)Direct Drive (DC)
- Rotation Direction
- Counterclockwise (viewed from suction port)
Applications
Suitable Industries
- Metallurgy
- Mining
- Coal Processing
- Electric Power
- Building Materials
- Environmental Protection
Performance Data
Model Performance Specifications
| Model | Max Power (kW) | Max Efficiency (%) | Impeller Dia (mm) |
|---|---|---|---|
| 40PV-GSP | 15 | 40 | 188 |
| 65QV-GSP | 30 | 50 | 280 |
| 100RV-GSP | 75 | 56 | 370 |
| 150SV-GSP | 110 | 52 | 450 |
| 200SV-GSP | 110 | 64 | 520 |
| 250TV-GSP | 200 | 60 | 575 |
| 300TV-GSP | 200 | 50 | 610 |
