Vertical Self-Priming Centrifugal Pump for Marine Applications
This vertical self-priming centrifugal pump is designed for marine applications on ships and warships. It serves as a ballast, bilge, cooling, drainage, and fire pump, and can also be used in petrochemical pipelines and water circulation systems.
Technical Specifications
Product Overview
High-Efficiency Marine Pumping Solution

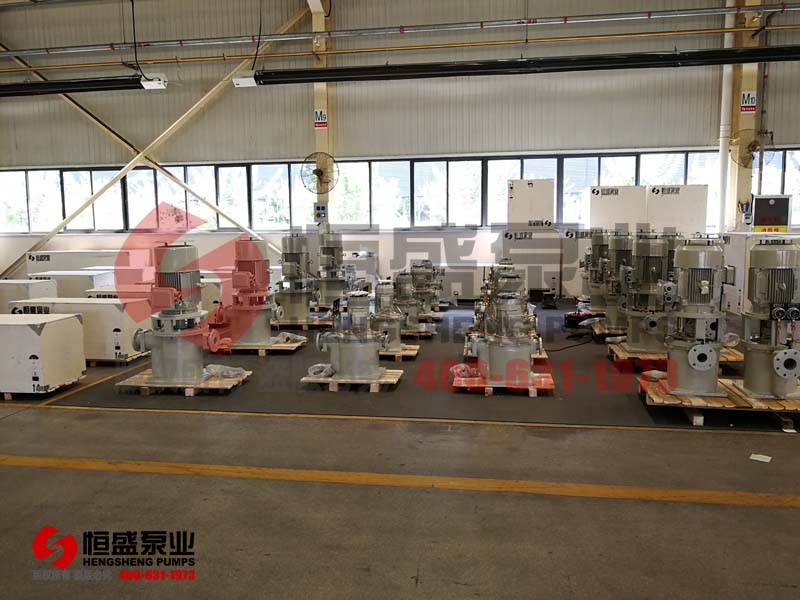

The CLZ series consists of vertical self-priming centrifugal pumps specifically engineered for the rigorous demands of marine and naval environments. These pumps are characterized by their compact vertical design, which significantly reduces deck space requirements while maintaining superior self-priming performance. Built for durability and ease of maintenance, they provide reliable fluid transfer even in systems with intermittent supply or entrained gases.
Performance Specifications
Key Performance Metrics
5 m3/h
Min Flow Rate
600 m3/h
Max Flow Rate
14.5 m
Min Head
120 m
Max Head
- Maximum Operating Temperature
- 80 ℃
Design & Construction
- Pump Type
- Vertical Self-Priming Centrifugal
- Key Features
- Self-PrimingVertical ConfigurationSpace-SavingLightweightCentrifugal Impeller
Applications
Marine & Naval Uses
- Ballast pumping
- Bilge pumping
- Cooling systems
- Drainage systems
- Firefighting services
- Seawater desalination auxiliary feeding
Industrial & Civil Uses
- Petrochemical pipeline boosting
- Cold and hot water circulation
- High-rise building domestic water supply
