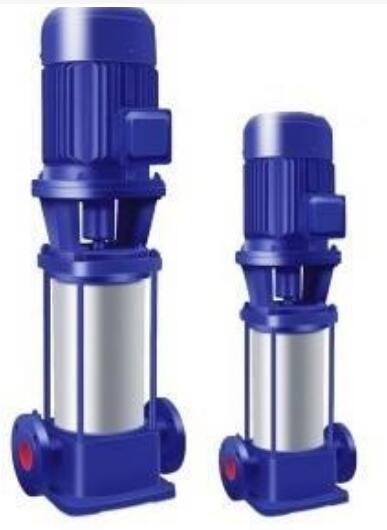

Vertical Multistage Centrifugal Water Pump
This pump is used to feed water. Its multistage design offers energy saving, small volume, and steady performance.
Technical Specifications
Overview
High-Efficiency Vertical Multistage Pump
The GDL Series vertical multistage pipeline pump is engineered for energy efficiency, compact installation, and steady performance. Constructed with durable stainless steel (304) cylinders and wearable mechanical seals, this pump ensures a long service life and leak-free operation. Its hydraulic balance design minimizes axis force, resulting in stable, low-noise operation suitable for high-rise buildings, deep wells, and mining applications.
Technical Specifications
Key Features
Energy SavingCompact VolumeSteady PerformanceLow NoiseHydraulic Balance
- Max Liquid Temperature
- 100 °C
- Maximum Pressure
- 0.6 MPa
- Construction Materials
- Stainless Steel 304Wearable Mechanical Seal
Performance Data
Performance Parameters
| Model | Capacity (m³/h) | Head (m) | Suction Height (m) | Power (kW) |
|---|---|---|---|---|
| 25GDL2-12×3 | 2 | 36 | 7.5 | 1.1 |
| 25GDL2-12×4 | 2 | 48 | 7.5 | 1.1 |
| 25GDL2-12×5 | 2 | 60 | 7.5 | 1.5 |
Components
Key Pump Components
- Pump body
- Impeller
- Mechanical seal
- Shaft
- Cylinder
- Coupling
- Sliding bearing
