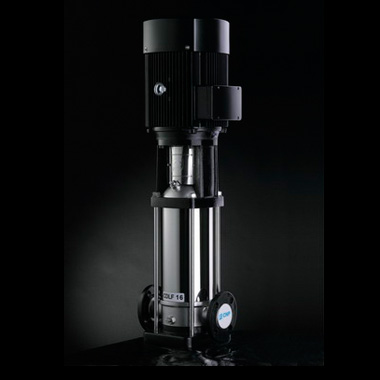

Vertical Multistage Centrifugal Pump
This high-pressure, non-self-priming pump is designed for industrial and municipal applications. Constructed from stainless steel, it offers a compact design, high efficiency, and ease of maintenance.
Technical Specifications
Product Overview
Vertical Multistage Centrifugal Pump
This vertical non-self-priming multistage centrifugal pump is engineered for high-pressure applications, featuring durable stainless steel 304 or 316 construction for all liquid-contacting parts. It is driven by a standard electric motor with a direct shaft coupling, ensuring efficient performance and reliability. Designed for versatility, it is suitable for urban water supply, industrial circulation, boiler feeding, and water treatment systems.
Technical Specifications
Protection Class
IP55
Insulation Class
Class F
Frequency
- 50
- 60
- Material
- Stainless Steel 304Stainless Steel 316
- Motor Type
- TEFC (Totally Enclosed Fan Cooled)
Performance Metrics
Capacity Range
1 m3/h
Min Capacity
180 m3/h
Max Capacity
Head Range
6 m
Min Head
305 m
Max Head
Operation Conditions
Fluid Requirements
- Thin liquid
- Clean liquid
- Non-flammable
- Non-explosive
- No solid granules
- No fibers
- Medium Temperature
- -15°C to +120°C
Features
Intelligent Protection
- Dry-running prevention
- Out-of-phase protection
- Overload protection
Applications
Typical Applications
| Sector | Application |
|---|---|
| Municipal | Water supply and pressure boosting |
| Industrial | Circulating and processing systems |
| Infrastructure | Boiler feed and high-rise buildings |
| Safety | Fire fighting systems |
| Treatment | Water treatment and RO systems |
| HVAC | Cooling water systems |
