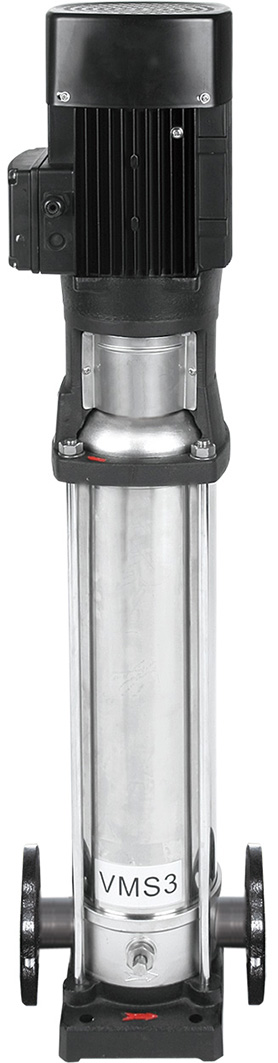

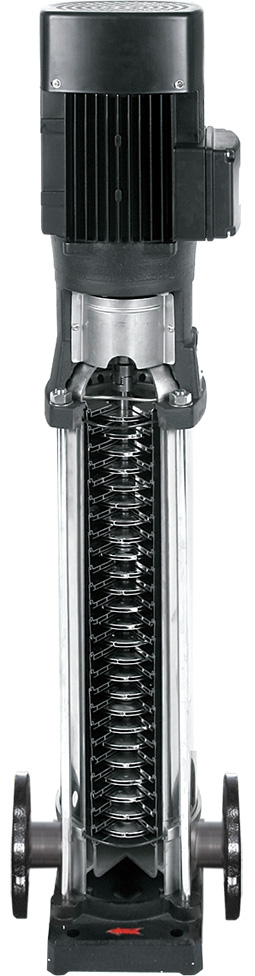

Vertical Multistage Centrifugal Pump
This vertical multistage centrifugal pump is a non-self-priming pump driven by a standard electric motor. It features a pressure-resistant cylinder and flow passage components fixed with tie-bolts.
Technical Specifications
Product Overview
Versatile Multistage Centrifugal Pump
The VMS/VMN series is a professional-grade, non-self-priming vertical multistage centrifugal pump driven by a standard electric motor. Designed for durability, the motor shaft connects directly to the pump shaft via a coupling, while pressure-resistant components are secured with robust tie-bolts. This series features a compact inline inlet and outlet configuration at the base, making it ideal for streamlined industrial installations.
Operating Limits
- Maximum Pressure
- 25 bar
- Normal Temperature Range
- 15 to 70 °C
- Hot Water Temperature Range
- 70 to 104 °C
- Max Ambient Temperature
- 50 °C
- Maximum Altitude
- 1000 m
Design Features
Pump Type
Vertical MultistageCentrifugalNon-self-priming
- Integrated Protections
- Dry-running protectionPhase loss protectionOverload protection
- Inlet/Outlet Layout
- Radial suction and discharge on same plane
