Vertical Milling and Drilling Machine
This vertical milling and drilling machine features a work table with 'T' slots and an all-steel gear drive headstock. The drill-mill head swivels 360° vertically, and both the headstock and worktable are adjustable.
Technical Specifications
Product Overview
Industrial Vertical Milling and Drilling Machine

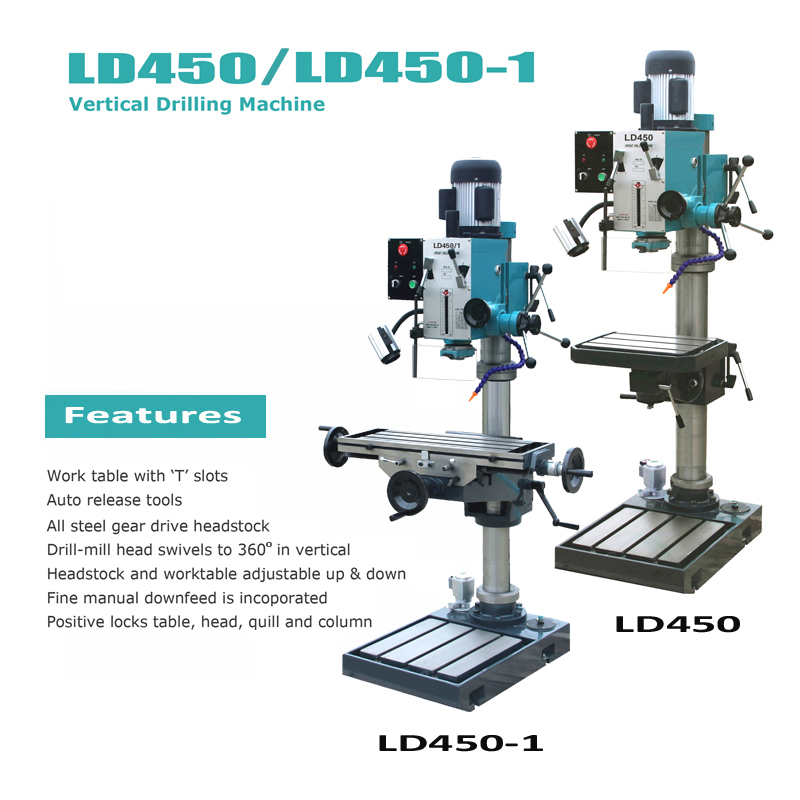

The LD450 is a robust vertical drilling and milling machine engineered for precision and industrial-grade reliability. It features an all-steel gear drive headstock and a versatile drill-mill head that swivels 360 degrees. Designed for high performance, the unit includes fine manual downfeed capabilities and positive locking mechanisms for the table, head, quill, and column.
Mechanical Features
Key Mechanical Features
- 360° swiveling drill-mill head
- All-steel gear drive headstock
- Fine manual downfeed
- Auto-release tools
- Adjustable worktable
- Positive Locking Systems
- Table LockHead LockQuill LockColumn Lock
Design Specifications
Compatible Model Series
LD450LD450-1
- Work Table Features
- Equipped with 'T' slots for secure workpiece mounting and adjustable vertical positioning.
