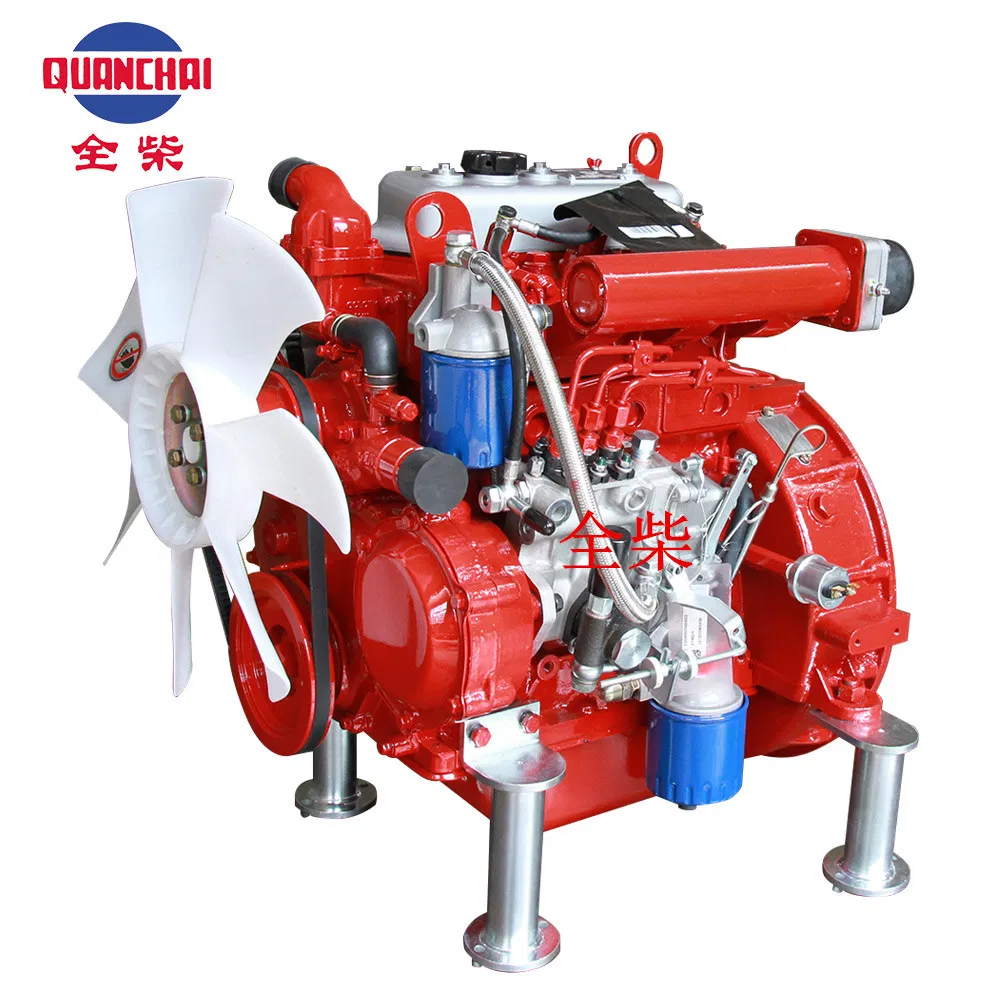

Vertical In-Line Four-Stroke Diesel Engine
This is a vertical, in-line, water-cooled, four-stroke diesel engine with direct injection. It is naturally aspirated and conforms to SAE4# and SAE7.5# standards.
Technical Specifications
Product Overview
Reliable Power for Generator Sets
The QC380D is a robust vertical, in-line four-stroke diesel engine specifically engineered for generator set applications. Featuring direct injection and a naturally aspirated intake system, it provides a dependable and efficient power source for industrial and commercial use. Its water-cooled design and wet cylinder liner ensure optimal thermal management and extended service life in demanding environments.
Core Engine Specifications
- Engine Configuration
- VerticalIn-lineWater-cooledFour-strokeNaturally Aspirated
- Number of Cylinders
- 3
- Displacement
- 1.357 L
- Bore & Stroke
- 80mm x 90mm

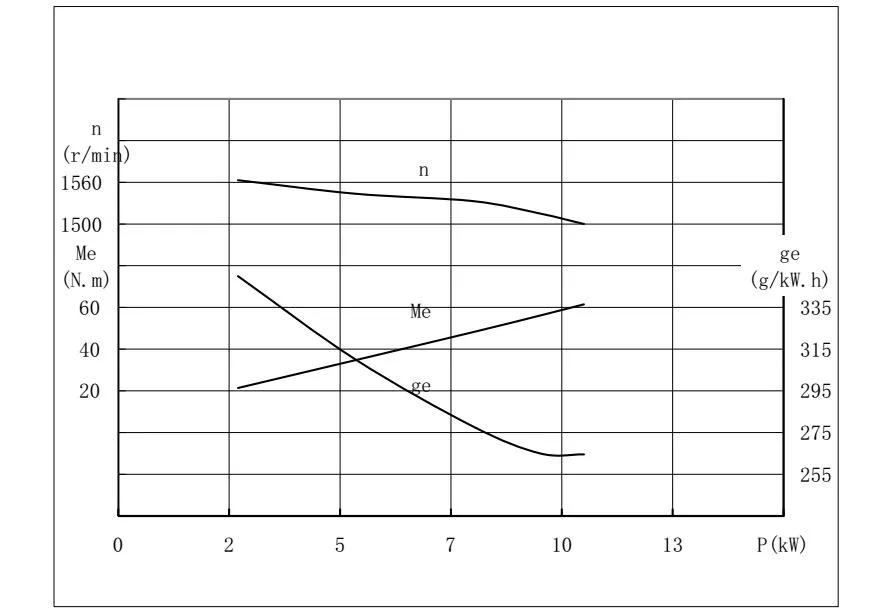

Performance Metrics
Rated Output & Speed
10 kW
Rated Output (Low)
1,500 r/min
Rated Speed (Low)
12 kW
Rated Output (High)
1,800 r/min
Rated Speed (High)
- Fuel Consumption Rate
- ≤ 255 g/kw.h
- Smooth Speed Rate
- ≤ 5%
Mechanical Interface
Flywheel and Housing
- Flywheel Type: SAE 7.5#
- Flywheel Cover: SAE 4#
- Ring Gear Teeth: 115
- Cooling Fan Diameter
- 410 mm
Technical Features
Combustion & Intake
| Feature | Specification |
|---|---|
| Chamber Type | Direct Injection |
| Cylinder Liner | Wet Type |
| Intake Method | Naturally Aspirated |
