Vertical Cantilever Sump Pump for Abrasive Slurries
This heavy-duty cantilever sump pump excels in applications requiring enhanced reliability and durability compared to conventional vertical process pumps. The design is ideally suited for continuous handling of abrasive and corrosive liquids and slurries while submerged in sumps or pits.
Technical Specifications
Overview
Heavy-Duty Sump Pump Solution
The TS/TSR heavy-duty cantilever sump pump is specifically engineered for applications demanding superior reliability and durability compared to standard vertical process pumps. Its robust cantilever design eliminates the need for submerged bearings, packing, or mechanical seals, making it ideal for continuous handling of abrasive and corrosive slurries. With options for hard metal or rubber-covered construction, this pump provides versatile performance in challenging industrial environments.
Design Features
- Key Features
- Cantilever DesignNo Submerged BearingsDouble Suction ImpellerHard Metal ConstructionRubber-Covered ConstructionAbrasive Slurry Handling
Performance Specifications
Performance Data by Model
| Model | Capacity (m3/h) | Head (m) | Max Power (kW) | Speed (rpm) |
|---|---|---|---|---|
| 40PV | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
| 65QV | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
| 100QV | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
| 150SV | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
| 200SV | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
| 250TV | 363-1188 | 7-36 | 200 | 400-750 |
| 300TV | 385-1492 | 7.8-55 | 250 | 400-700 |

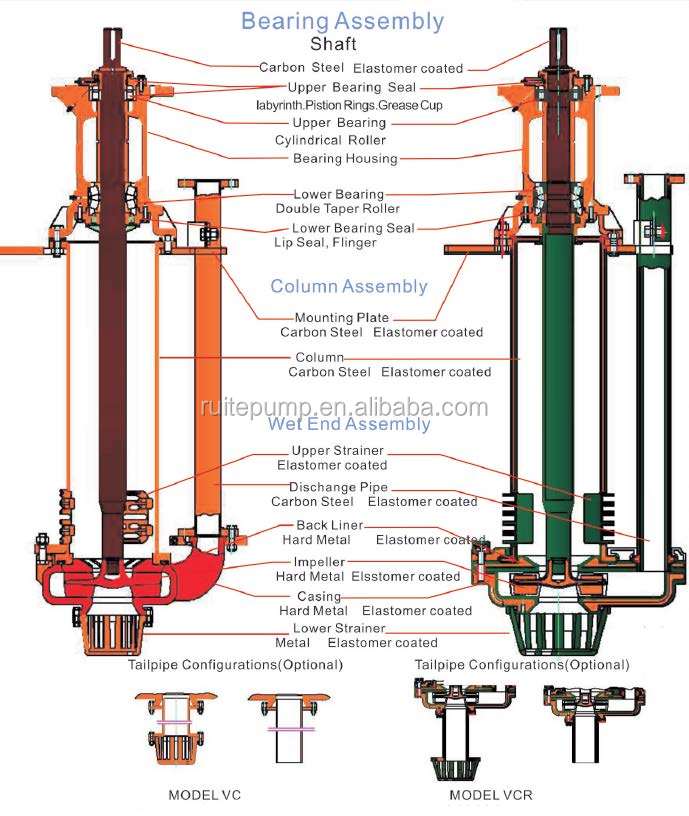

Construction
Construction Types
- TS Pump: Hard metal construction
- TSR Pump: Rubber-covered construction
