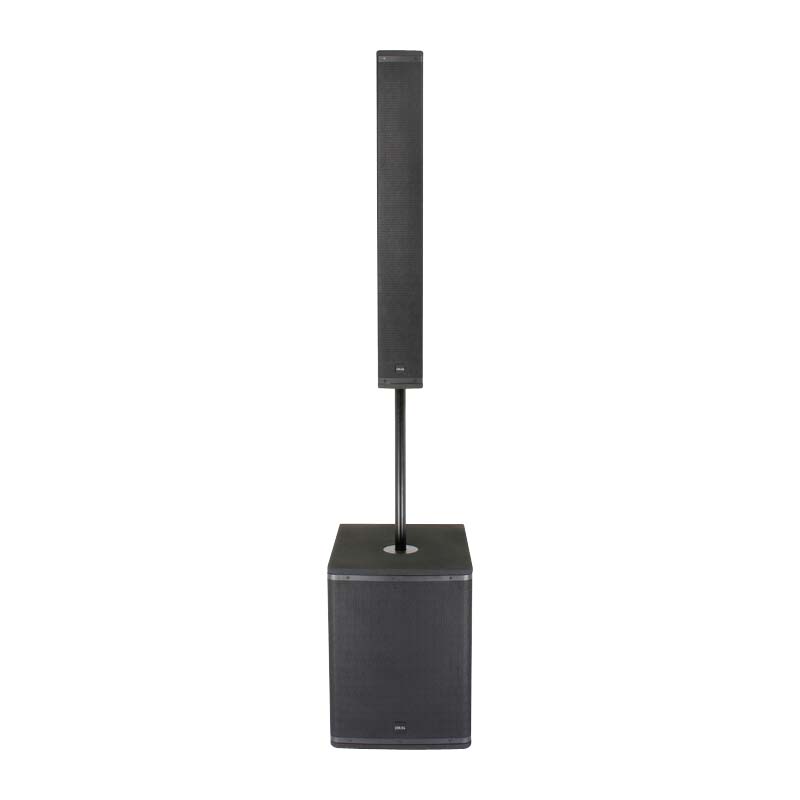

Vertical Array Speaker System with Bluetooth and DSP
This vertical array speaker system features a 900W D-Class amplifier for efficient power delivery and a built-in Bluetooth receiver for wireless audio streaming. The integrated DSP processor allows for precise sound shaping and optimization.
Technical Specifications
Overview
Professional Vertical Array System
This high-performance vertical array speaker system is engineered for professional audio reinforcement, delivering a combined 900W of power. Featuring an integrated Class D amplifier, built-in Bluetooth connectivity, and an advanced DSP processor with 5 selectable modes, it offers versatile sound shaping for live events and presentations. The system combines a powerful 15-inch subwoofer with a precision satellite array to ensure clear, impactful audio across a wide frequency range.
Audio Performance
Total System Power
900 W
Total System Power
125 dB
Max SPL (Continuous)
Frequency Response
| Component | Range |
|---|---|
| System | 40Hz - 18KHz |
| Subwoofer | 40Hz - 180Hz |
| Satellite | 180Hz - 18KHz |
Technical Specifications
- Amplifier Class
- Class D
- DSP Modes
- 5
- Connectivity
- BluetoothXLR Input1/4" Jack InputXLR Output
Components
Subwoofer Details
- Power: 600W
- Driver: 15 inch
- Voice Coil: 3 inch
Satellite Details
- Power: 300W
- Driver: 4 inch x 8 Full Range
Logistics
Container Capacity
| Container Type | Quantity |
|---|---|
| 20' | 100 |
| 40' | 220 |
| 40'HC | 255 |
