Vehicle Mounted Satellite TV Antenna
This vehicle-mounted satellite TV antenna is designed for mobile use on various vehicles, including SUVs, RVs, buses, and trains. Its low-profile design and automatic signal tracking ensure minimal impact on vehicle appearance while providing continuous connectivity.
Technical Specifications
Product Overview
Mobile Satellite Connectivity

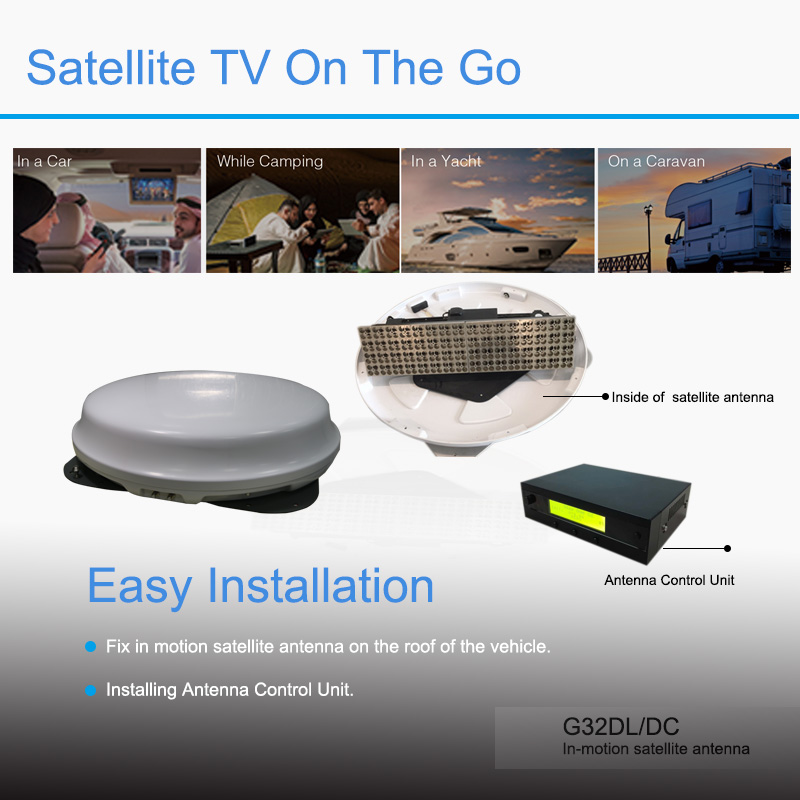

The G32DL is a high-performance, vehicle-mounted satellite TV antenna engineered for seamless in-motion reception. Designed for SUVs, RVs, buses, and trucks, it features a low-profile, aerodynamic dome that ensures minimal impact on vehicle aesthetics and wind resistance. With an advanced automatic tracking algorithm and high-gain waveguide array technology, this system provides stable, live HD satellite television while the vehicle is in motion.
Technical Specifications
- Operating Frequency
- 10.7 ~ 12.75 GHz
- Antenna Gain
- 32.5 dBi
- Minimum EIRP
- 49 dBW
- Stabilization Mode
- 3 Axis / 2 Axis
- Polarization
- Dual LinearDual CircularAuto Tracking
Tracking Performance
Tracking Rates
| Axis | Rate |
|---|---|
| Azimuth | 60°/s |
| Elevation | 60°/s |
| Polarization | 65°/s |
- Azimuth Range
- Unlimited continuous
- Elevation Range
- 0° ~ 90°
Physical & Environmental
Waterproof Class
IP56
- Dimensions
- 788 x 235 mm
- Operating Temperature
- -25 ~ 65 °C
Power & Connectivity
Key Features
- Push-button start
- LCD screen for satellite selection
- USB software update support
- High strength FRP dome
- Operating Voltage
- 12 V
