Technical Specifications
Overview

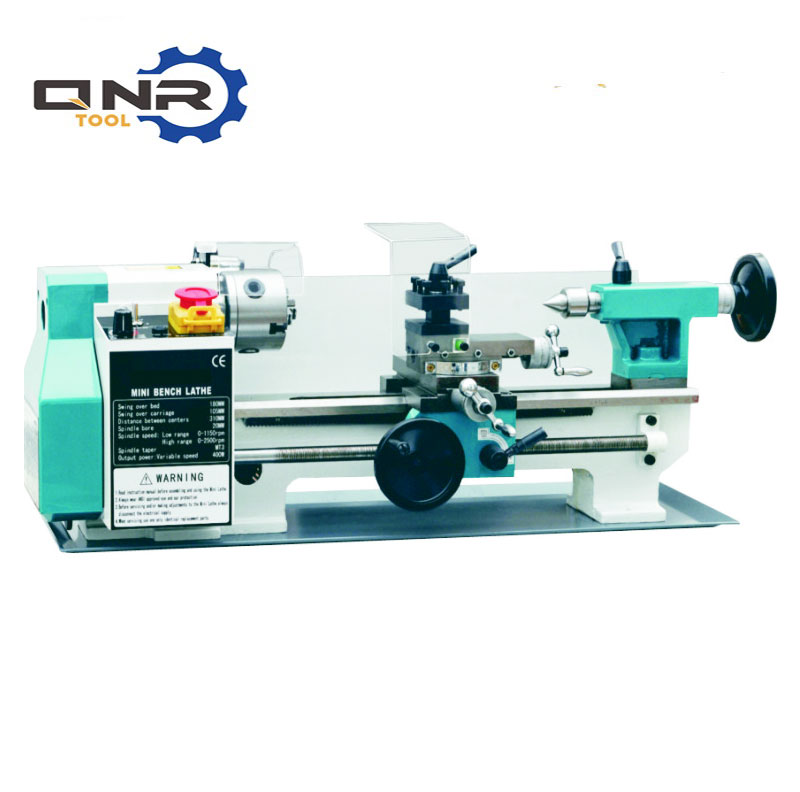

Versatile Mini Metal Lathe
This compact variable speed mini metal lathe is designed for precision metalworking in small workshops or hobbyist settings. Powered by a robust 400W motor, it offers a wide range of speeds to accommodate various materials. The unit is equipped with user-friendly controls, safety features for long feeding, and supports essential functions such as longitudinal feed and thread cutting.
Technical Specifications
Key Performance Metrics
400 W
Output Power
20 mm
Spindle Bore
180 mm
Swing over bed
Spindle Specifications
| Metric | Value |
|---|---|
| Spindle Taper | MT3 |
| Low Range Speed | 0-1150 RPM |
| High Range Speed | 0-2500 RPM |
Machining Capabilities
Variable Speed ControlLongitudinal FeedThread Cutting
Features
Included Equipment
- Self-centering 3 Jaw chuck
- Dead center
- Change gear set
- Allen wrench
- Socket head screw
- Replacement fuse
- Optional Accessories
- Independent 4 jaw chuckSteady restFace plate
