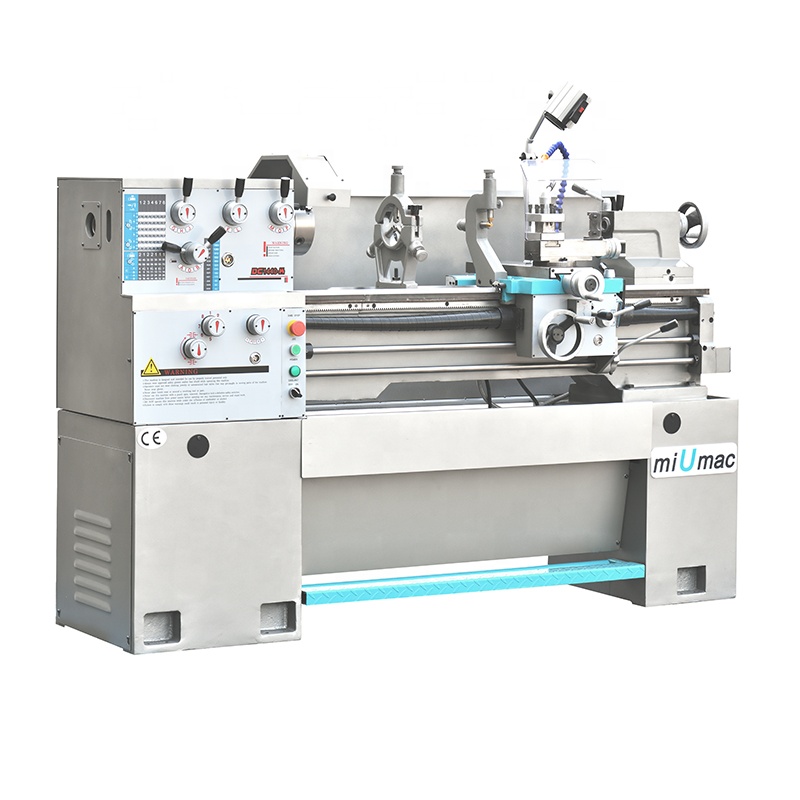

Conventional Metalworking Lathe with 14-inch Swing
This conventional lathe is designed for precision metalworking, offering a maximum swing over bed of Ф356mm. It features a spindle bore of Ф40mm and a spindle speed range of 40-1800rpm, powered by a 2.4kw motor.
Technical Specifications
Overview
Precision Conventional Lathe
This 14-inch swing conventional lathe is engineered for precision metalworking in tool rooms, workshops, and educational environments. It features a robust construction for stability and accuracy, supported by a geared headstock that provides multiple spindle speeds for diverse materials. With integrated coolant systems and essential safety features like chuck guards and emergency stops, it is a versatile solution for turning, facing, threading, and drilling applications.
Key Specifications
- Swing Over Bed
- 14 inches
- Distance Between Centers
- 40 inches
Threading Capabilities
Metric Threading
- 0.4~7mm (37 kinds)
- 0.45~7.5mm (23 kinds)
Inch Threading
- 4~56 T.P.I (28 kinds)
- 4-112 T.P.I (40 kinds)
Features
- Key Features
- Quick-change tool postTailstockCoolant systemGeared headstockVariable speed drive
Safety & Compliance
Safety Equipment
Chuck guardEmergency stop button
