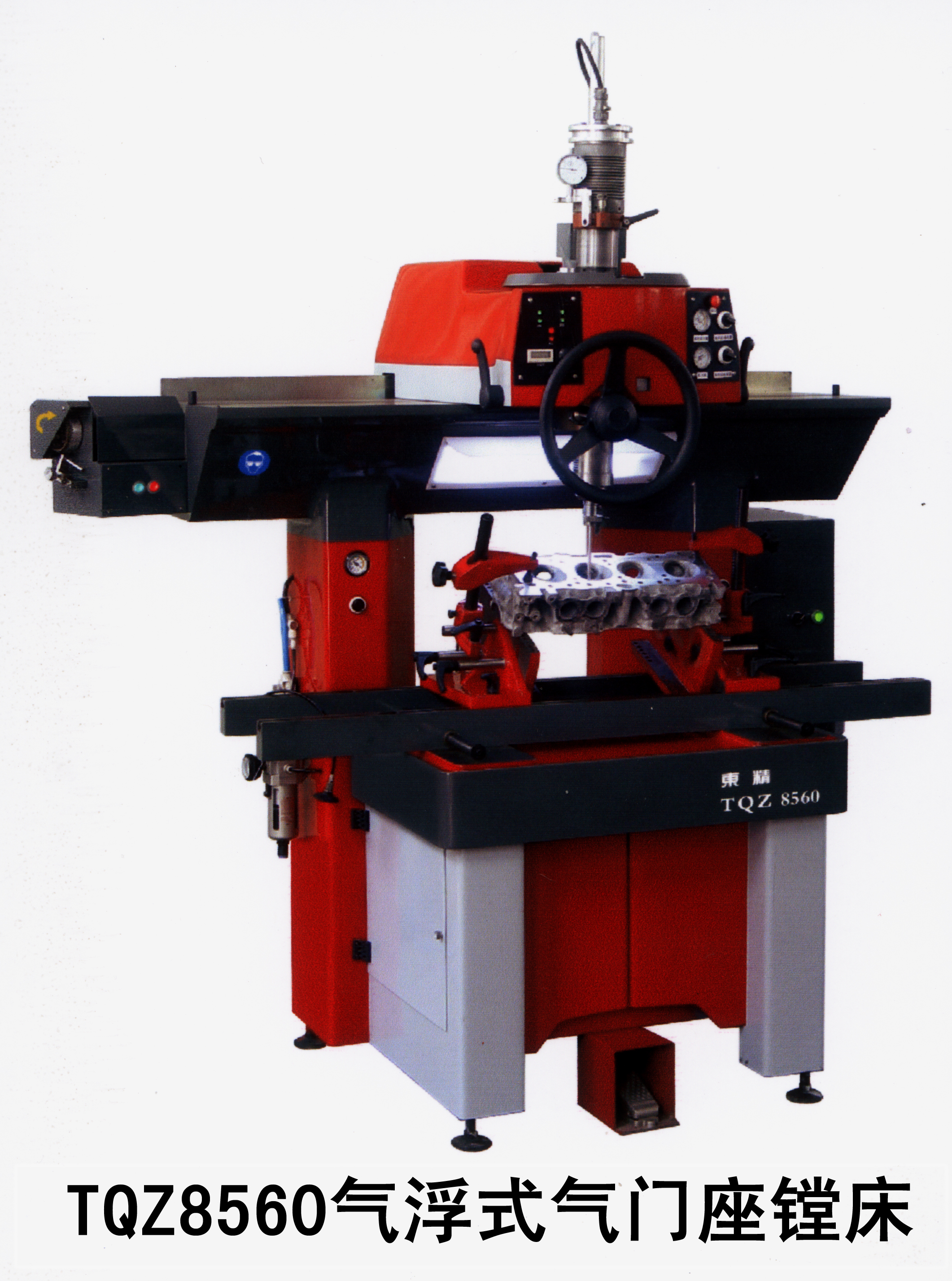

Valve Seat Boring Machine
This valve seat boring machine is designed for accurately machining valve seats in cylinder heads. It features air floating, auto-centering, and vacuum clamping for high accuracy.
Technical Specifications
Overview
Precision Valve Seat Machining
The TQZ85 series valve seat boring machine provides high-precision repair solutions for automotive engine rebuilding and maintenance shops. Featuring an air-float centering system and robust frame construction, it ensures smooth operation, vibration damping, and superior surface finishing on a wide range of cylinder heads. This variable speed machine is engineered to improve workshop efficiency and deliver consistent results across various engine types.
Key Performance Metrics
Key Performance Indicators
1,000 rpm
Max Spindle Speed
1.2 kW
Spindle Motor Power
200 mm
Spindle Stroke
0.7 MPa
Air Pressure
Operational Features
- Quality Standards
- ISO 9001
Technical Data
Series Specifications
| Parameter | TQZ8560 Series | TQZ85100 |
|---|---|---|
| Boring Range | 14-60 mm | 20-100 mm |
| Spindle Swing Angle | 5° | 5° |
| Fixture Rotary Angle | +45° to -15° | +45° to -15° |
| Air Supply Flow | 300 L/min | 300 L/min |
| Power Supply | 220V/50Hz | 220V/50Hz |
