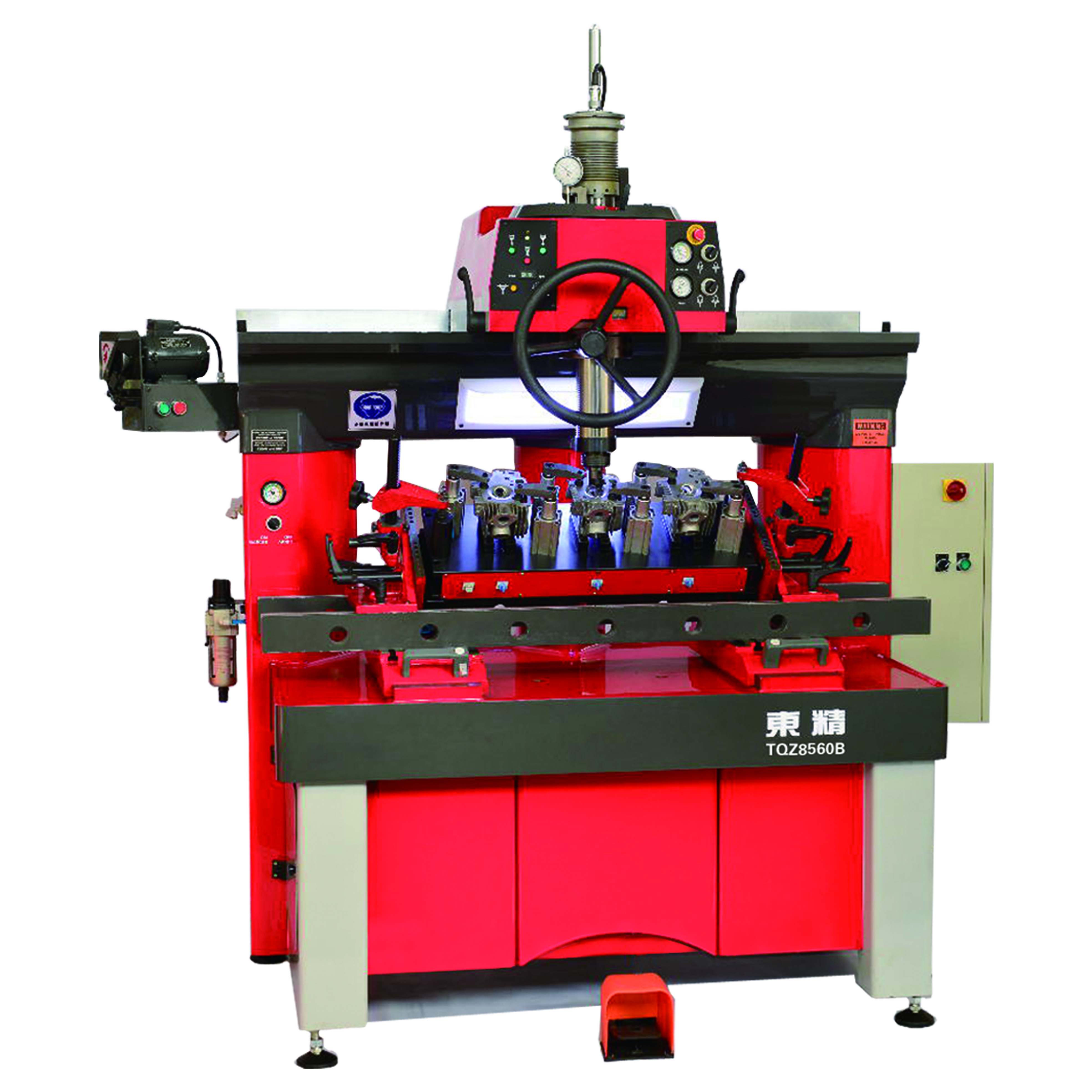

Valve Seat Boring Machine
This boring machine utilizes air floating, auto-centering, and vacuum clamping to ensure high accuracy. It incorporates a frequency motor spindle for stepless speed adjustment and includes a vacuum test device to verify valve tightness.
Technical Specifications
Overview
Precision Valve Seat Boring Machine
The air float centering valve seat boring machine provides a highly accurate solution for engine rebuilding and cylinder head maintenance. Designed with a rigid frame and high-precision spindle, it allows for tight tolerances and excellent surface finishes. This machine features an automated pneumatic clamping system and a multi-cutter boring head for increased efficiency and reduced operator effort in high-volume repair environments.
Performance Metrics
Key Performance Metrics
1.2 kW
Spindle Motor Power
1,000 rpm
Max Spindle Speed
200 mm
Spindle Stroke
0.7 MPa
Required Air Pressure
Technical Specifications
Comparison Table
| Specification | TQZ8560B | TQZ85100 |
|---|---|---|
| Boring Diameter (mm) | 14-60 | 20-100 |
| Max Cylinder Head Size (mm) | 1200x500x300 | 1500x550x350 |
| Spindle Move (mm) | 950x35 | 1200x35 |
| Machine Weight (Net/Gross) (kg) | 1150/1350 | 1400/1800 |
Operating Requirements
Operational Specs
- Power Supply: 220V/50Hz
- Air Supply Flow: 300 L/min
- Fixture Rotary Angle: +45° to -15°
- Spindle Swing Angle: 5°
Certifications & Application
- Application Areas
- Engine RebuildingAutomotive RepairPrecision MachiningCylinder Head Maintenance
