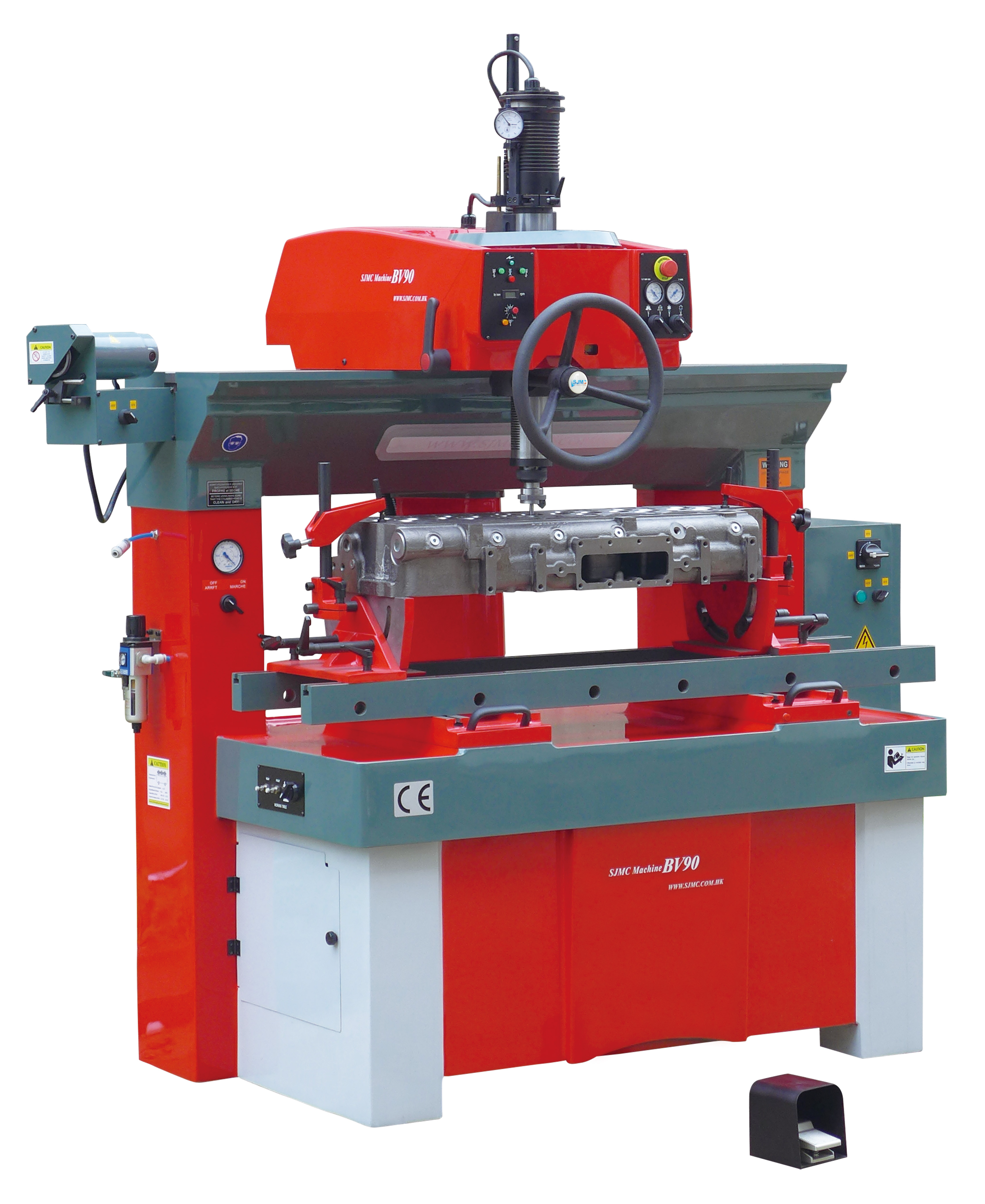

Valve Seat Boring Machine
This valve seat boring machine is designed for precision boring of valve seats in cylinder heads. It features a triple air-float patented centering system and a powerful spindle with a built-in motor.
Technical Specifications
Overview
High-Precision Valve Seat Machining
This professional-grade valve seat boring machine is engineered for high-accuracy boring, reaming, and cutting of engine valve guides and seats. Featuring a patented triple air-float centering system, it offers versatile machining capabilities for engines ranging from micro-units to large stationary systems. The design ensures exceptional precision with a 0.6 Ra finishing roughness, providing a reliable solution for demanding automotive engine repair tasks.
Machining Capacity
Machining Capacity
18 mm
Min Boring Diameter
90 mm
Max Boring Diameter
4 mm
Min Valve Guide Diameter
Technical Specifications
Worktable Specifications
| Feature | Value |
|---|---|
| Max Cylinder Head Width | 500 mm |
| Max Cylinder Head Height | 450 mm |
| Table Travel | 160 mm |
| Work Head Longitudinal Travel | 990 mm |
| Work Head Cross Travel | 40 mm |
Spindle Performance
- Spindle Power: 1.8 kW
- Max Torque: 25 Nm
- Spindle Speed: 50-800 rpm (stepless)
- Vertical Spindle Travel: 200 mm
Requirements & Compliance
Air Supply Requirements
- Rated Air Pressure: 6 Bar / 85 PSI
- Max Air Flow: 400 L/Min
- Continuous Air Flow: 60 L/Min
- Certifications
- CETÜV SÜD
Physical Attributes
Dimensions
- Length: 1685 mm
- Width: 1050 mm
- Height Range: 1980 - 2180 mm
Weight
1,500 Kg
Net Weight
1,800 Kg
Gross Weight
