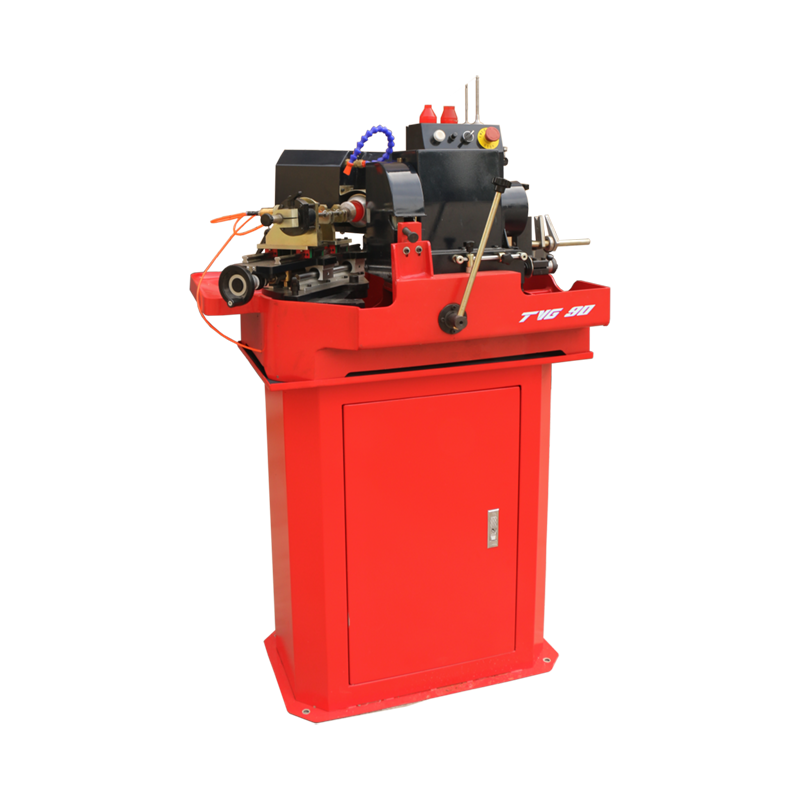

Valve Refacer TVG90 for Engine Valves
The TVG 90 is a high precision horizontal valve refacer for valve stems from 0.16"/4mm to 0.55"/14mm. It features variable speed valve rotation.
Technical Specifications
Overview
High-Precision Valve Refacer
The TVG90 is a precision-engineered valve refacing machine designed for the efficient restoration of engine valves. It accommodates a wide range of valve stem and head diameters, offering versatility for various engine types. With its integrated cooling system and adjustable grinding angles, the unit ensures consistent material removal and high-quality surface finishes, helping to restore optimal engine performance.
Capabilities
Performance Metrics
90 mm
Max Valve Head Diameter
54 degree
Max Grinding Angle
550 W
Spindle Power
Grinding Specifications
| Parameter | Range/Value |
|---|---|
| Valve Stem Diameter | 4 - 14 mm |
| Valve Head Diameter | 12 - 90 mm |
| Valve Length | 70 - 290 mm |
| Grinding Angle | 10 - 54 deg |
Technical Details
Motor Specifications
- Spindle Motor: 550W @ 2850 rpm
- Valve Driving Motor: 100W (120-750 rpm)
- Coolant Motor: 100W
- Electrical Requirements
- 1-230V / 1ph / 50/60Hz
Physical Dimensions
- Dimensions (L x W x H)
- 1050 x 800 x 560 mm
