Technical Specifications
Overview
Versatile Universal Tool Grinder

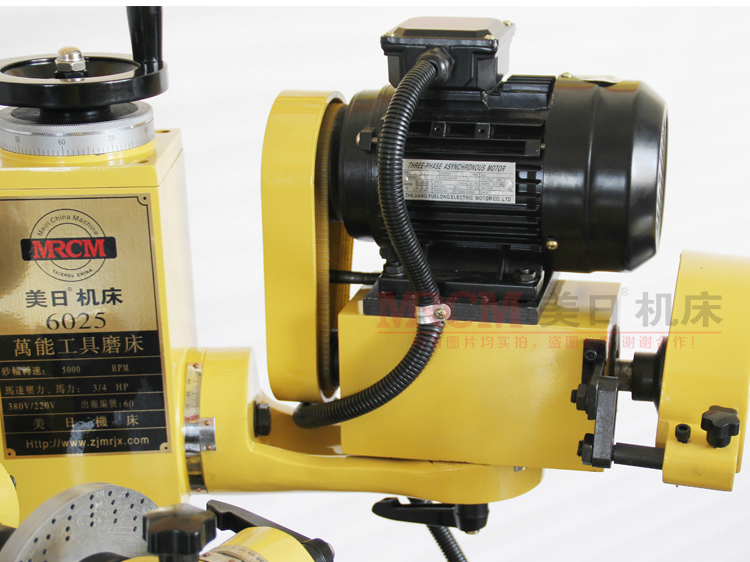

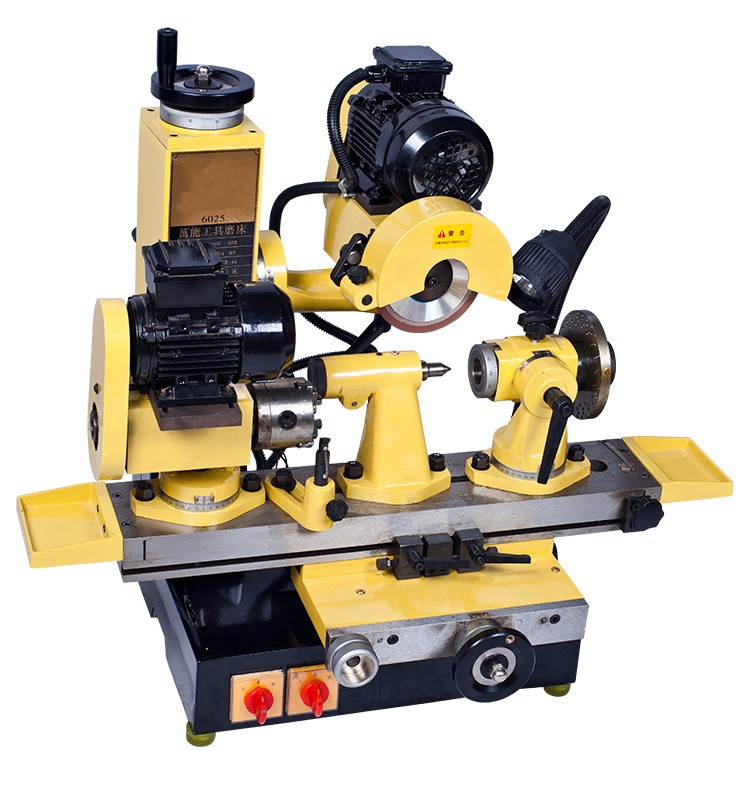

The MR-6025 is a high-precision universal tool grinder designed for sharpening a wide array of cutting tools, including end mills, lathe tools, and gear cutting tools. Featuring a stable bed platform and smooth movement via dovetail or linear guide rails, it ensures reliable performance for industrial applications. The motor offers 360° rotation in the horizontal plane, allowing for rapid grinding wheel adjustments to improve safety and efficiency when switching between different tool geometries.
Technical Specifications
- Max Grinding Diameter
- 250 mm
- Worktable Diameter
- 350 mm
- Worktable Travel
- 150 mm
- Elevating Distance of Wheel Head
- 150 mm
- Wheel Head Rotation Angle
- 360 °
- Grinding Head Speed
- 5000 RPM
- Motor Power
- 0.75 HP

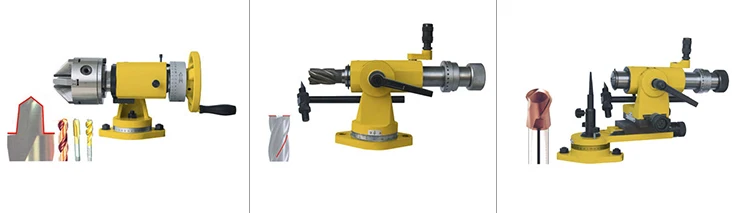

Capabilities
Grinding Features
- In-hole grinding
- Outer annulus grinding
- Column grinding
- Trench grinding
- Taper grinding
- Clockwise and anticlockwise wheel rotation

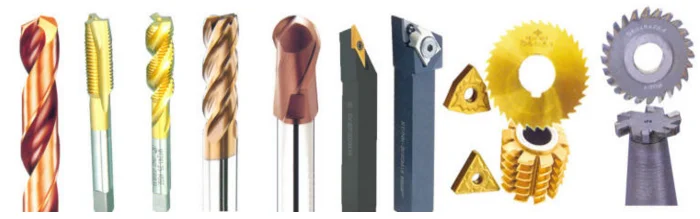

- Compatible Tool Types
- End MillsLathe ToolsGear CuttersDisc CuttersDiamond ToolsSquare Tools
