Valve Refacer and Seat Grinder

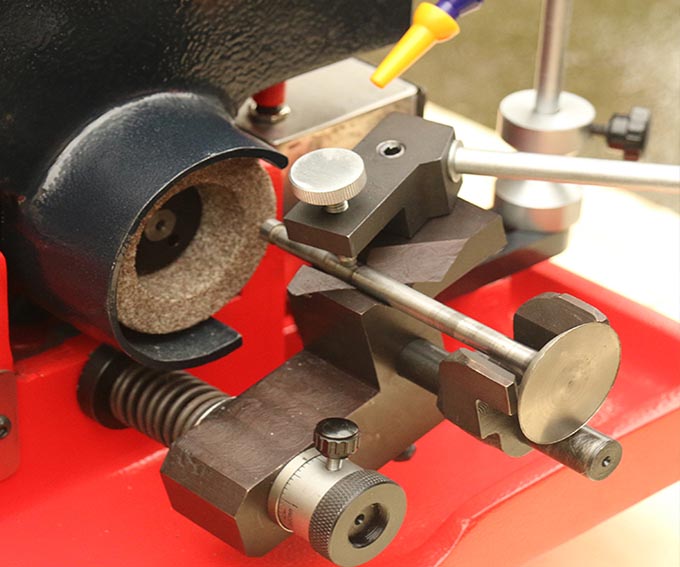

This precision machine is designed for accurately grinding and refacing engine valves and valve seats. It features a 6-ball chuck for fast, accurate centering and adjustable fixtures to accommodate various valve sizes and angles.
Technical Specifications
Overview
Professional Valve Refacing and Grinding
This precision-engineered valve refacer and seat grinder is designed for automotive engine rebuilding and professional repair shops. It provides accurate grinding of valve faces and seats to ensure optimal engine performance, longevity, and sealing efficiency. The unit includes an integrated coolant system and adjustable fixtures, making it a versatile and reliable solution for various engine valve sizes and materials.
Capacity and Range
- Chuck Capacity Range
- 0.1575" - 0.5625" (4mm - 14.3mm)
- Valve Head Diameter Capacity
- 0.75" - 4" (19-101.6mm)
- Minimum Stem Length
- 1.85 in
Performance
Primary Performance Metrics
3,450 rpm
Valve Wheel Speed
65 psi
Minimum Air Required
1 Gallon
Coolant Capacity
- Variable Chuck Speed
- 100-300 rpm
Technical Specifications
Motor Specifications
- Spindle Drive Motor: 1/2 hp
- Chuck Drive Motor: 1/12 hp
Physical Dimensions
| Metric | Value |
|---|---|
| Length | 37" (940mm) |
| Width | 22" (599mm) |
| Height | 16" (406mm) |

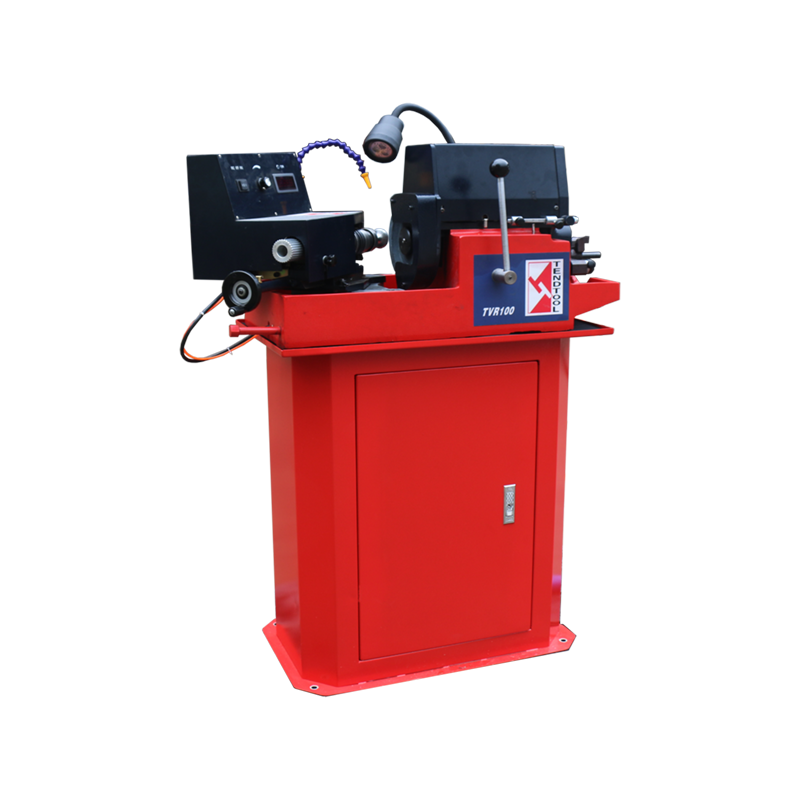

| Height (on cabinet) | 51" (1295mm) |
- Shipping Weight
- 330 lbs
Compliance
- Availability
- 50Hz Export Version Available
