Vacuum Laminating Machine for PVC
This vacuum laminating machine applies laminates to PVC surfaces using vacuum pressure. It ensures a tight and uniform bond between the laminate and the substrate for a smooth, durable finish.
Technical Specifications
Overview
Industrial PVC Vacuum Laminating Solution

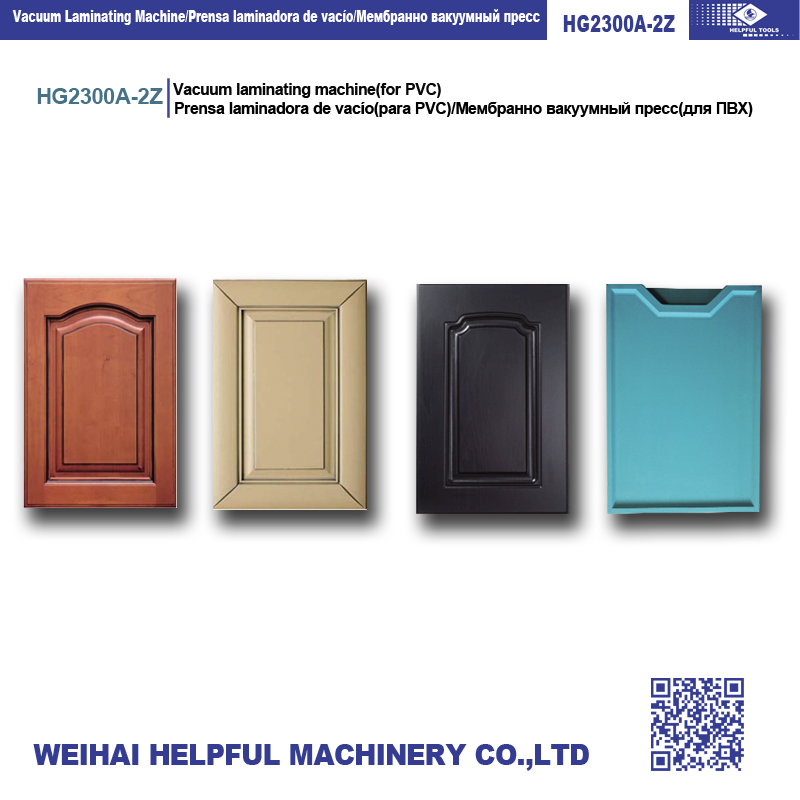

The HG2300A-2Z is a specialized vacuum laminating machine engineered for the precise application of PVC films onto various substrates. By utilizing controlled vacuum pressure, the system ensures a tight, uniform, and durable adhesion, making it an ideal choice for manufacturing furniture components, decorative panels, and cabinet doors. The machine offers advanced control over the entire laminating process, including heating, vacuum timing, and table movement, to guarantee high-quality production results.
Technical Specifications
- Model
- HG2300A-2Z
- Working Table Size
- 2300 x 1100 mm (Dual Table)
- Optional Table Size
- 2600 x 1300 mm
- Total Power
- 25 kW
- Vacuum Pressure
- -0.1 MPa
- Total Weight
- 1600 kgs
- Outline Size
- 7900 x 1800 x 1800 mm
Features
Accessories & Options

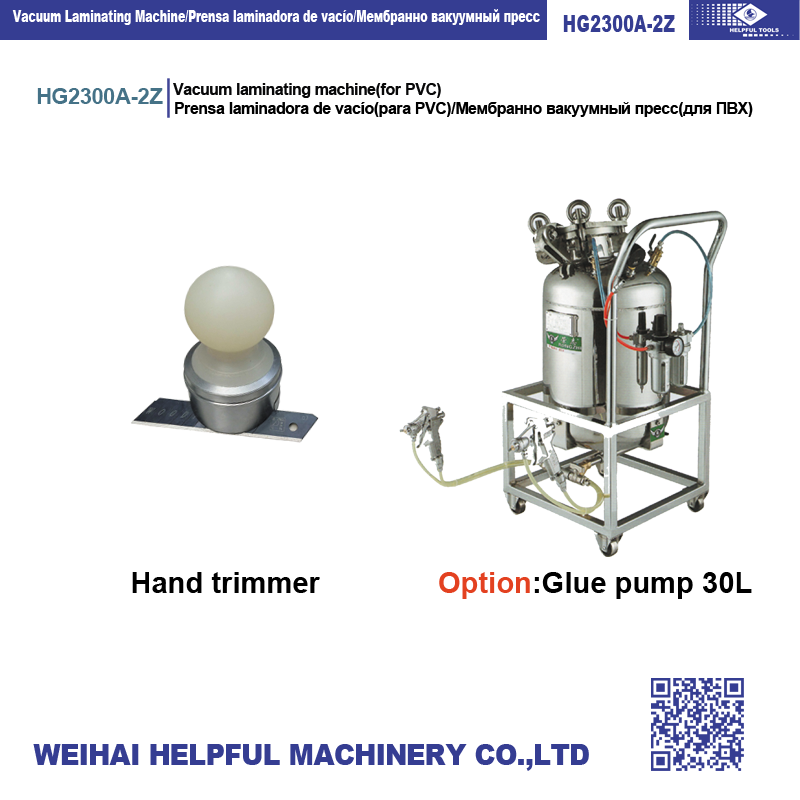

- Hand trimmer for edge finishing
- Optional 30L glue pump

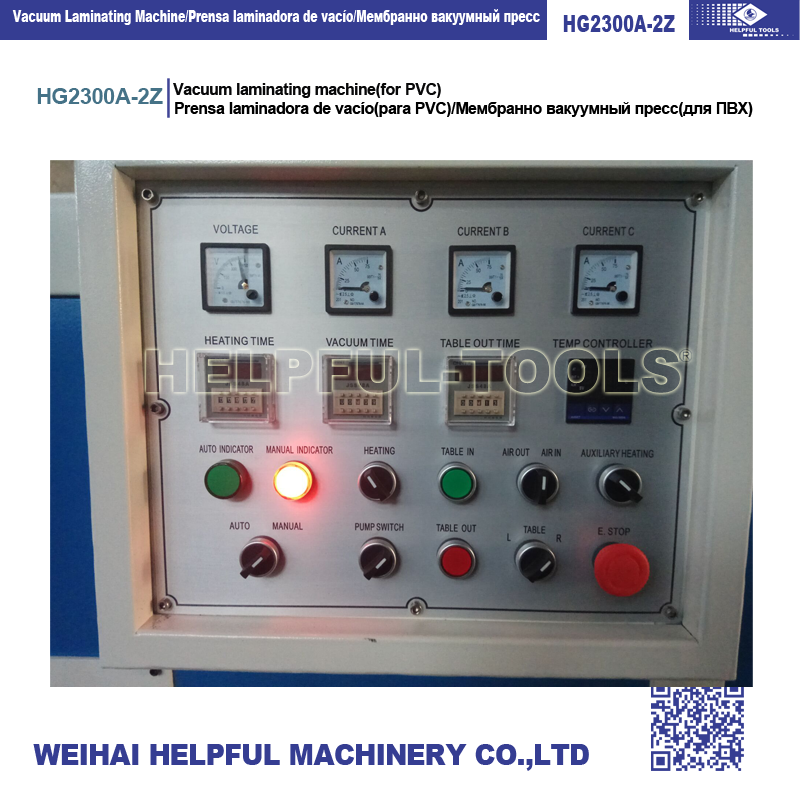

- Control System Features
- Automatic/Manual modesHeating time controlVacuum time controlAuxiliary heatingEmergency stop
