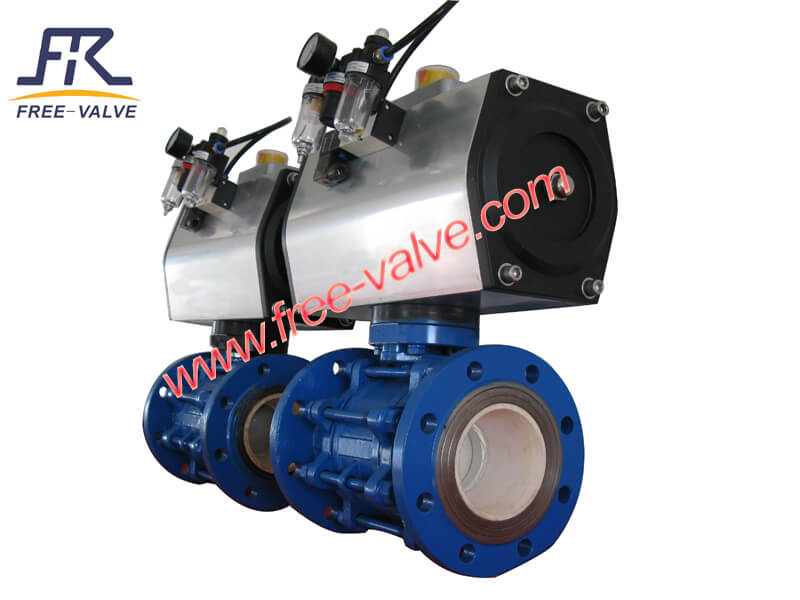

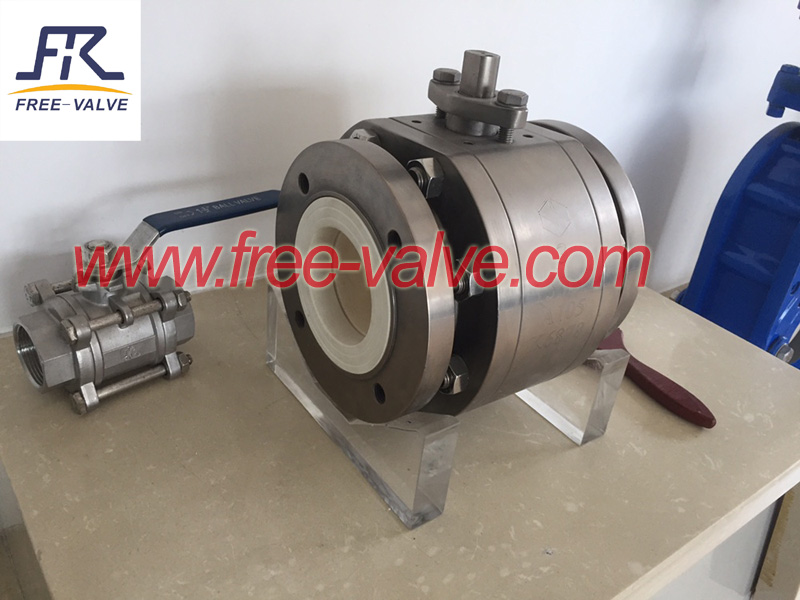

V-Port Ceramic Ball Control Valve
The V-port ceramic ball control valve is engineered with ceramic internal parts, offering exceptional wear resistance. It is widely used for both on/off operations and precise throttling control in corrosive environments containing abrasive materials.
Technical Specifications
Product Overview
Precision Ceramic Flow Control
The V-Port Ceramic Ball Control Valve is engineered for high-performance throttling and open-close functionality in extremely harsh industrial environments. Utilizing advanced engineering ceramics with a hardness exceeding HRC80, this valve provides superior protection against abrasion and corrosion from solids and slurries. Its floating ball design ensures reliable sealing through differential pressure, making it an ideal choice for critical applications in mining, power generation, and chemical processing.
Technical Specifications
Operating Options
- Manual
- Pneumatic
- Electric
- Hydraulic
- Nominal Pressure
- 1.0 MPa, Class 150
- Size Range
- DN50 to DN200 (NPS2 to NPS8)
- Maximum Temperature
- 200 ℃
- Flange Standards
- ASME B16.5GB/T9113
Performance
Ceramic Hardness
Design Advantages
- Floating ball design for tight sealing
- V-port design for accurate throttling
- High wear and corrosion resistance
- Customizable actuation
Applications
- Typical Media Applications
- Silicon PowderAlumina PowderDry Coal PowderLimestone SlurryGypsum SlurryFly AshMining OreMetallurgical Dust
