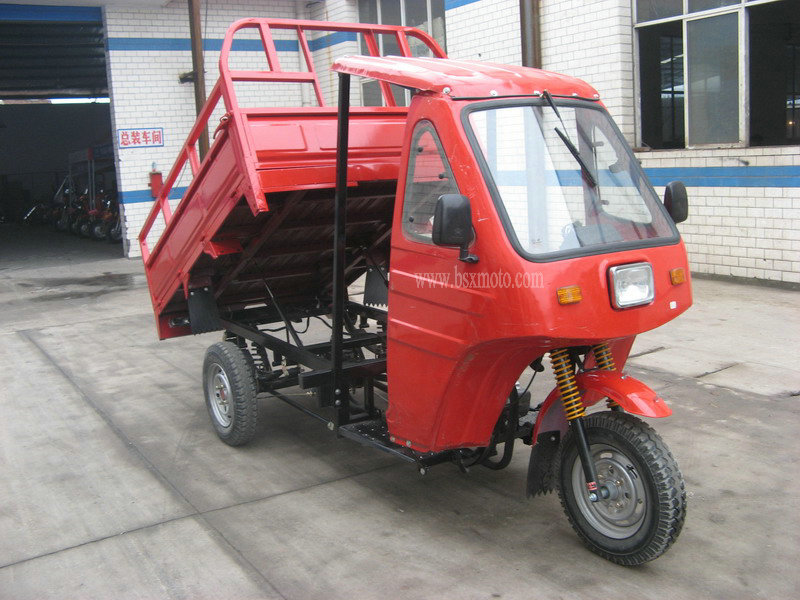

Utility Tricycle with Enclosed Cabin and Tipping Cargo Bed
This tricycle is designed for utility and transportation, featuring a durable chassis and a tipping cargo bed. The enclosed cabin provides weather protection for the operator, enhancing comfort and safety.
Technical Specifications
Product Overview
Rugged Utility Solution
This utility tricycle is engineered for heavy-duty transport, featuring an enclosed cabin for operator protection and a versatile tipping cargo bed. Powered by a reliable 150CC gasoline engine, it offers a load capacity of over 800kg to handle demanding industrial and commercial tasks. With its reinforced frame and robust suspension, this vehicle ensures stability and efficiency in diverse operating environments.
Performance & Engine
Core Performance
150 CC
Displacement
800 kg
Max Load Capacity
60 km/h
Max Speed
Engine Details
- 1 cylinder, 4-stroke
- Air-cooled
- Electric/kick starting system
- 12L Fuel tank capacity
Technical Specifications
Drivetrain & Braking
- Manual-hand clutch
- Shaft drive transmission
- Drum brake system (Front/Rear)
- Dimensions (L x W x H)
- 3200 x 1250 x 1500 mm
- Tire Specifications
- 4.50-12 (Front/Rear)
Logistics & Options
Container Loading
| Container Type | Units per Container |
|---|---|
| 40HQ | 40 |
| 20FT | 16 |
- Color Variants
- RedBright RedBlueYellowSilver
