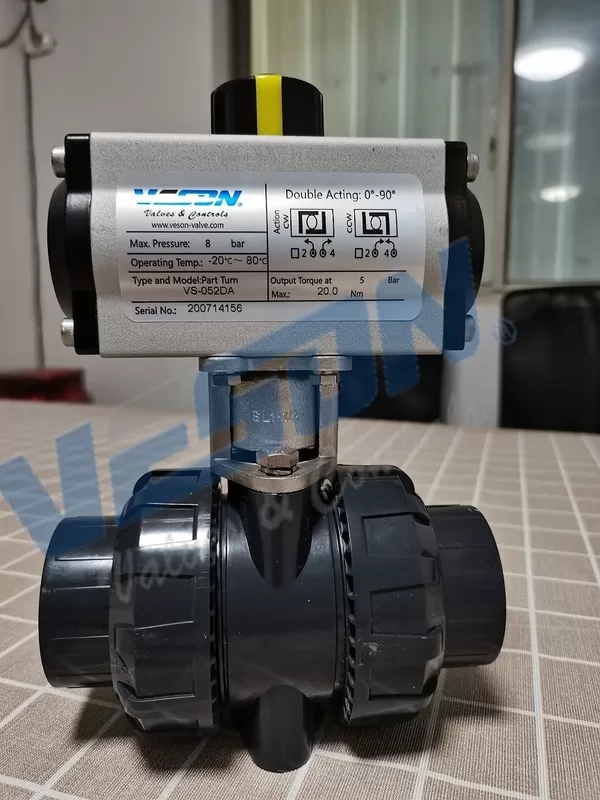

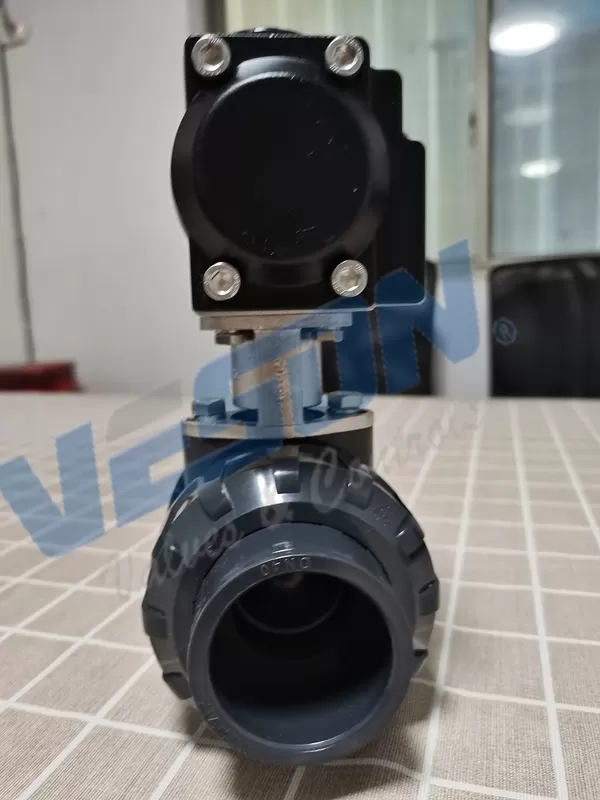

UPVC Pneumatic Actuated Ball Valve
This UPVC pneumatic ball valve is designed for pressure control applications. The valve features an actuated plastic construction, providing corrosion resistance and durability.
Technical Specifications
Product Overview
Automated Flow Control Solution
This pneumatically actuated UPVC ball valve is designed for reliable, remote flow control in industrial applications. Engineered for durability, the valve body offers excellent chemical resistance, making it suitable for water treatment and chemical processing. The double-acting pneumatic actuator ensures precise movement and consistent operation for demanding process environments.
Technical Specifications
- Body Material
- UPVC
- Operating Temperature Range
- 5°C to 55°C
- Maximum Working Pressure
- 8 bar
- Actuator Type
- Double acting
- Joint End Types
- SocketThreadedFusionWelding
Torque Performance
Torque Table (Nm)
| Model | 3 bar | 6 bar | 8 bar |
|---|---|---|---|
| VS-032DA | 4.6 | 9.2 | 12.2 |
| VS-052DA | 12 | 24 | 32 |
| VS-063DA | 21.7 | 43.4 | 57.8 |
| VS-075DA | 30 | 60 | 80 |
| VS-083DA | 46.8 | 93.6 | 124.8 |
| VS-092DA | 67.6 | 135.2 | 180.2 |
| VS-105DA | 97.7 | 195.5 | 260.6 |
| VS-125DA | 150.5 | 301 | 401.3 |
