Upright Metalworking Drilling Machine
This drilling machine is designed for drilling, milling, and tapping operations. Its headstock and worktable move perpendicularly, and the head swivels 360° horizontally.
Technical Specifications
Product Overview
Versatile Upright Metalworking Solution

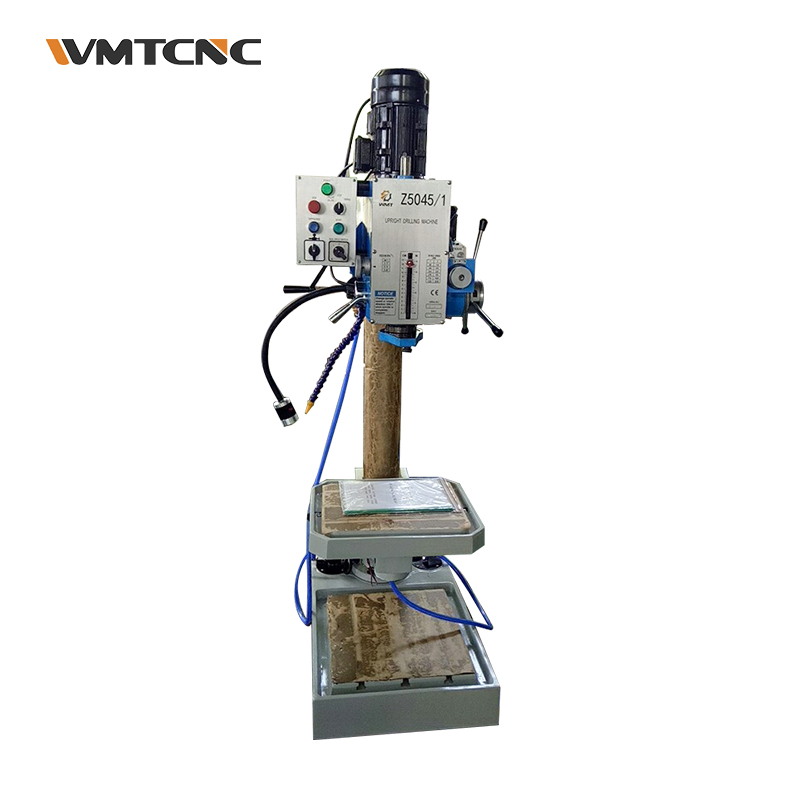

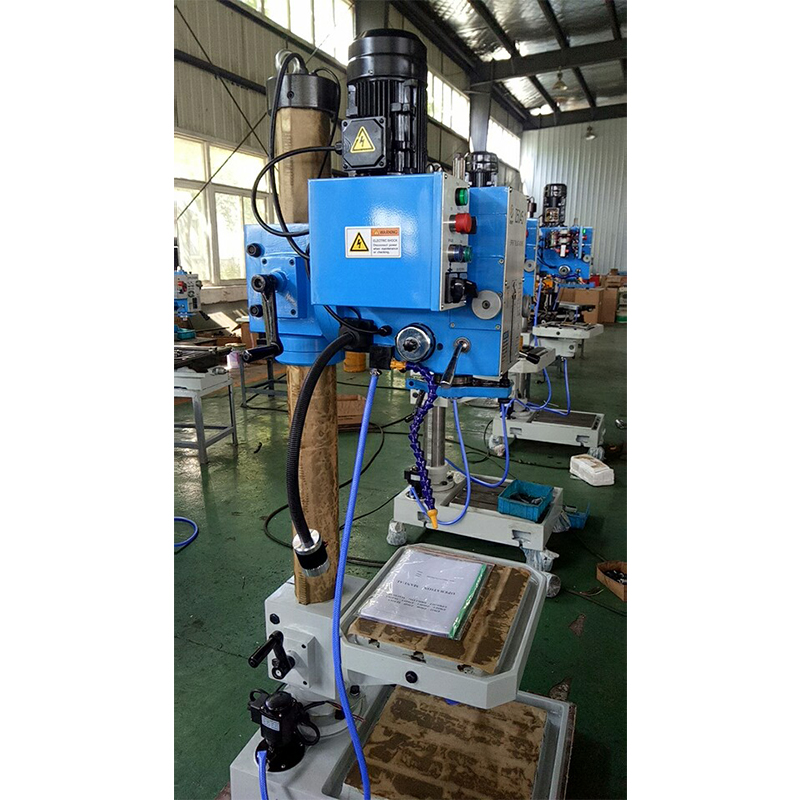

The Z5045/1 is a heavy-duty upright drilling machine engineered for precision metalworking tasks including drilling, milling, and tapping. Its robust gear-driven design ensures lower noise operation while maintaining high torque for demanding manufacturing environments. Featuring a 360° swiveling head and a perpendicularly adjustable worktable, this machine offers exceptional flexibility for complex fabrication projects.
Technical Capabilities
Key Features
- Gear driven transmission for lower noise
- Headstock and worktable move perpendicularly
- Head swivels 360° horizontally
- Positive spindle lock for precision
- Integrated coolant system
- Adjustable depth stop
- Primary Functions
- DrillingMillingTappingReaming
Construction & Design
Robust Construction
Designed for stability and longevity, the machine features a heavy-duty frame and a vertically mounted motor. The multi-speed gearbox allows for manual control over spindle speeds and feed rates, ensuring optimal performance across various metal materials.
Safety & Compliance
Certifications
Safety Equipment
- Emergency stop button
- Protective guards
- Electrical safety warnings
Technical Specifications
- Model Number
- Z5045/1
- Head Swivel
- 360 °
