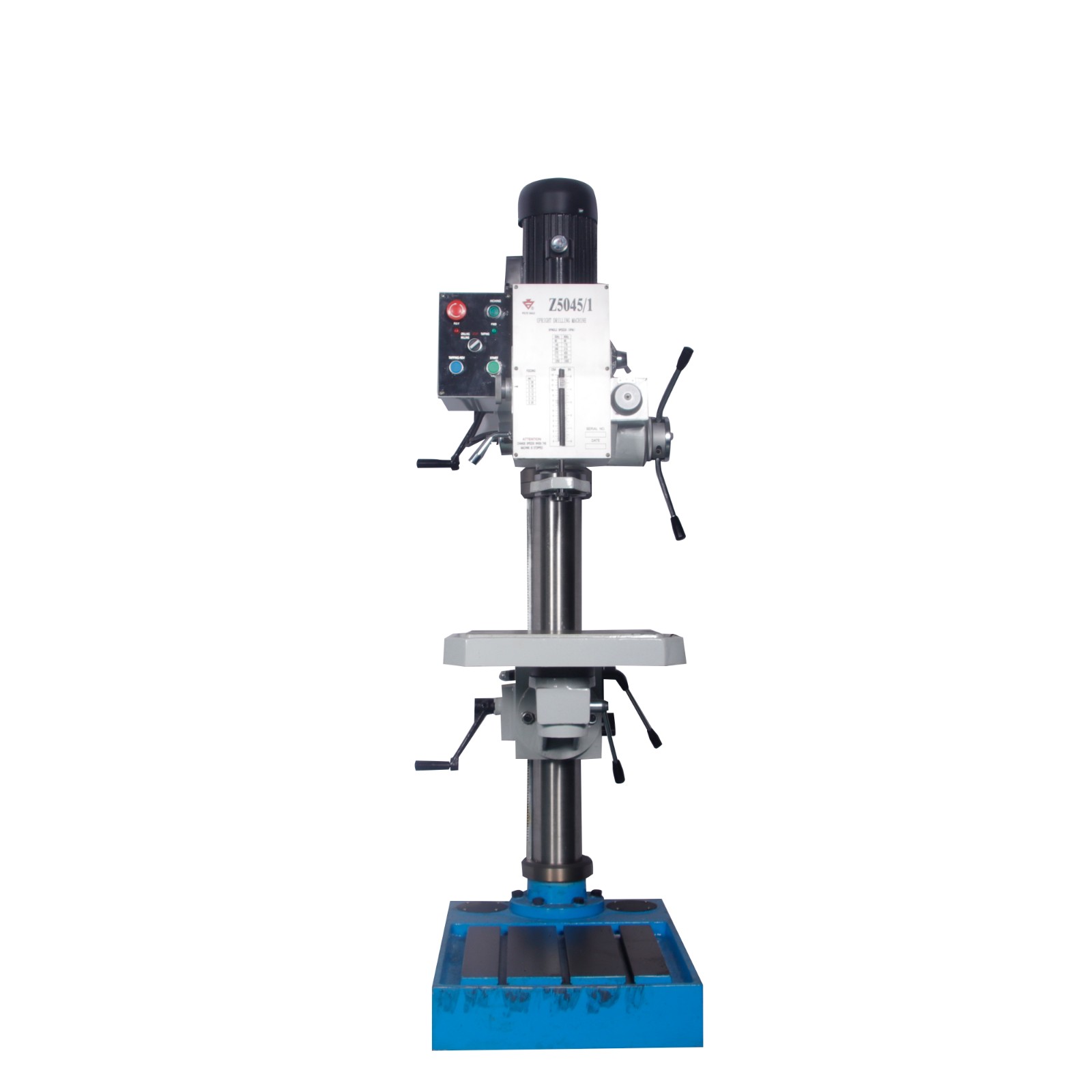

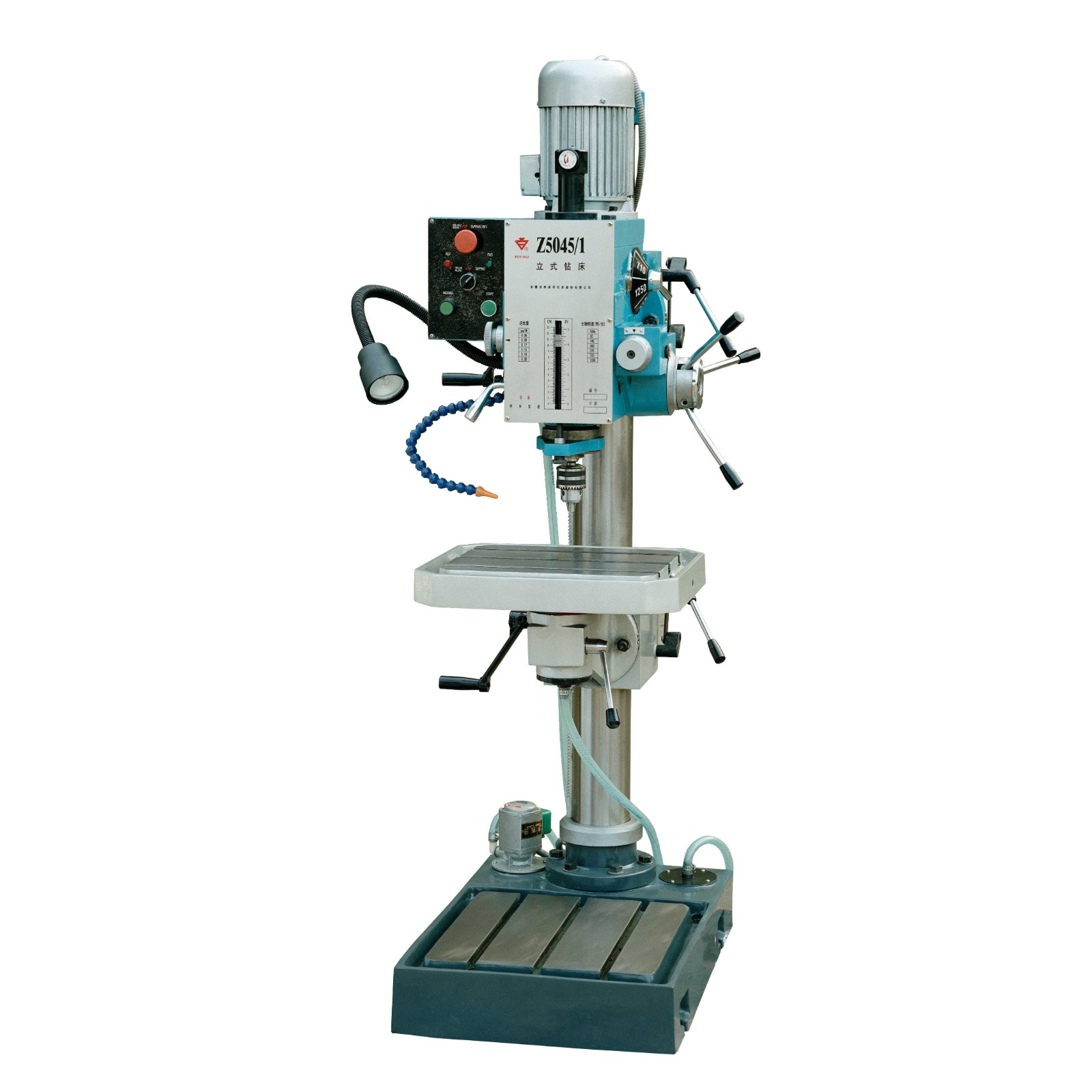

Upright Metal Drilling Machine
This upright drilling machine is designed for precision metalworking. It features a powerful motor for efficient drilling, a sturdy column for stability, and a versatile worktable.
Technical Specifications
Product Overview
Professional Upright Drilling Machine
The Z50 series upright drilling machines provide a robust and versatile solution for precision drilling, milling, and tapping operations. Featuring geared drive technology for reduced noise levels and a 360-degree swiveling head, these machines offer high flexibility for various metalworking tasks. With precision micro-feed mechanisms and a rigid column design, they are engineered to deliver consistent accuracy in demanding industrial environments.
Capabilities
- Supported Operations
- DrillingMillingTapping
Technical Specifications
Spindle Speed Range (50Hz)
- 80
- 145
- 260
- 375
- 710
- 1,250
Feeding Range
- 0.06
- 0.09
- 0.12
- 0.15
- 0.18
- 0.3
Accessories
Standard Accessories
- 1-13mm Drill Chuck
- Removing Block
- Drill Chuck Arbor
Optional Accessories
- 90mm Parallel Vise
- 125mm Parallel Vise
- Milling Cutter Holder
- Mill Chuck
- Coolant System
- Working Lamp
- Auto-tapping Electrical System
- Boring Bar
Mechanical Features
Headstock Features
360° Horizontal SwivelVertical AdjustmentPrecision Micro FeedGeared Drive
