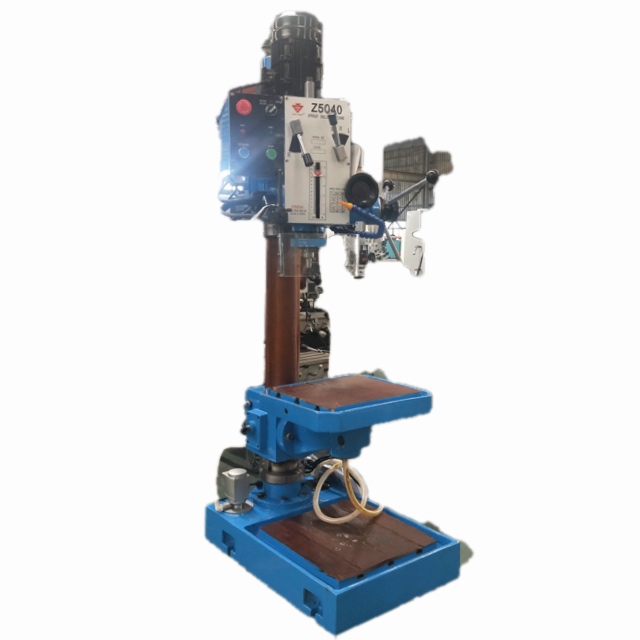

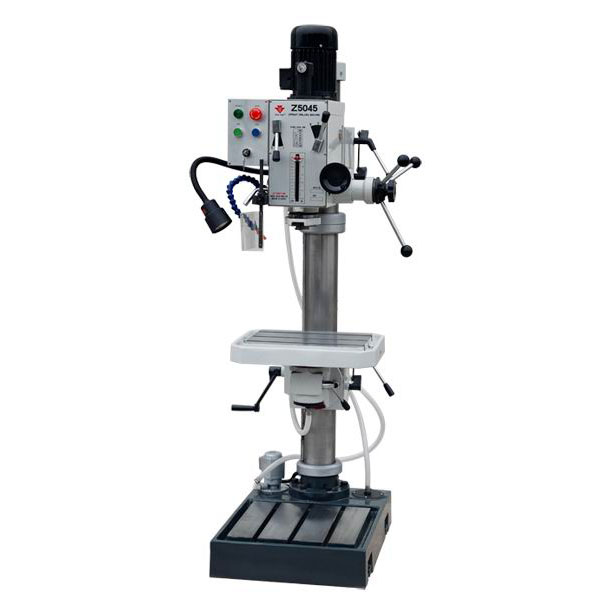

Upright Drilling Machine
This upright drilling machine is capable of drilling, milling, and tapping. The head swivels 360 degrees horizontally, and the headstock and worktable move up and down perpendicularly.
Technical Specifications
Overview
Versatile Upright Drilling Center

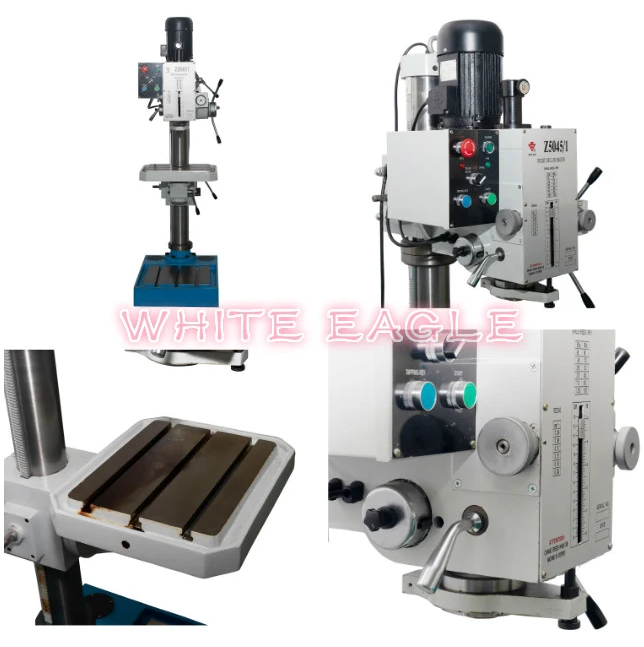

This upright drilling machine is a robust and multi-functional solution designed for professional drilling, milling, and tapping operations. Featuring a geared drive system for reduced noise and a super-high column, it offers exceptional precision and stability. The head swivels 360 degrees horizontally, and both the headstock and worktable provide vertical adjustability to accommodate a wide variety of workpiece sizes.
Key Features
Operational Capabilities
- Drilling, milling, and tapping functionality
- Geared drive for lower operational noise
- Precision micro feed mechanism
- Positive spindle lock for safety and accuracy
- Auto-release device for quick tool changes
- Cyclical spindle speed adjustment
Technical Specifications
Performance at a Glance
45 mm
Max Drilling Capacity (Z5045)
1,500 r.p.m
Max Spindle Speed (60Hz)
360 degree
Horizontal Swivel Angle
Model Specifications
| Feature | Z5032 | Z5040 | Z5045 |
|---|---|---|---|
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3/R8 | M.T.4 | M.T.4 |
| Motor Power | 0.75kW | 1.1kW | 1.5kW |
General Dimensions
- Spindle travel: 130mm
- Max distance spindle to table: 725mm
- Worktable size: 380 x 300mm
- Table tilt: +/- 45 degrees
