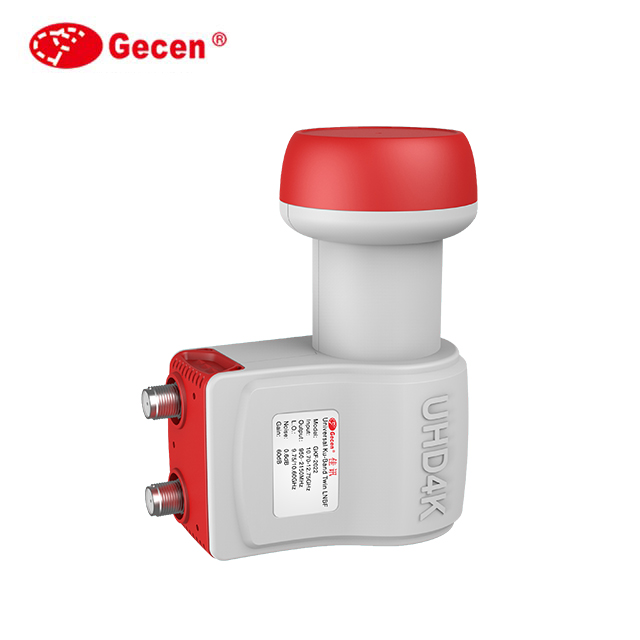

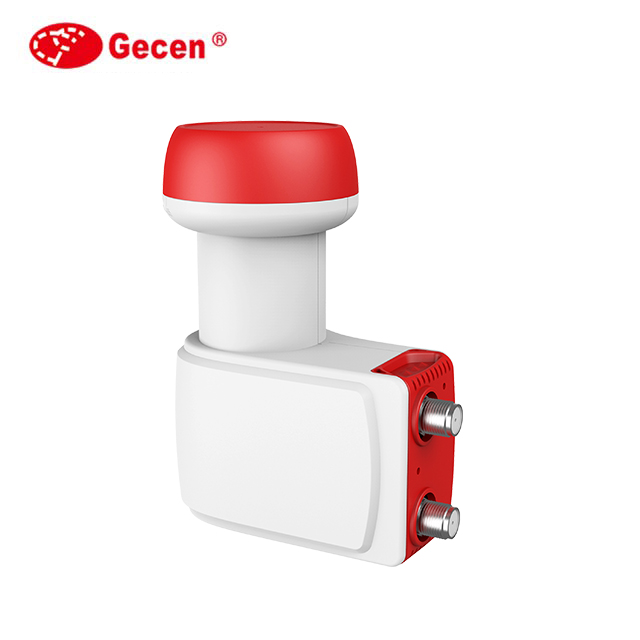

Universal Twin Ku-Band LNB
This universal twin Ku-band LNB is DVB-S2 compliant and features a low noise figure. It has UV-resistant weather protection housing and is extremely heat and cold resistant.
Technical Specifications
Product Overview
Professional Twin Ku-Band LNB
This Universal Twin Ku-Band LNB is designed for high-performance satellite signal reception, supporting both HD and UHD DVB-S2 standards. Featuring dual independent outputs, it allows for seamless distribution to two separate receivers. Engineered for extreme durability, the unit includes a UV-resistant weather-proof housing with a custom-fit cap to ensure reliable operation in harsh environments.
Key Features
- Capabilities
- DVB-S2 CompatibleHD/UHD ReadyLow Noise FigureDual OutputWeather ResistantUV-Resistant
Performance Specifications
Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
0 dBm
P1dB
130 mA
Power Consumption
Technical Details
Frequency and Gain Specifications
| Parameter | Low Band | High Band |
|---|---|---|
| Input Frequency | 10.70-11.70 GHz | 11.70-12.75 GHz |
| Output Frequency | 950-1950 MHz | 1100-2150 MHz |
| L.O. Frequency | 9.75 GHz | 10.60 GHz |
