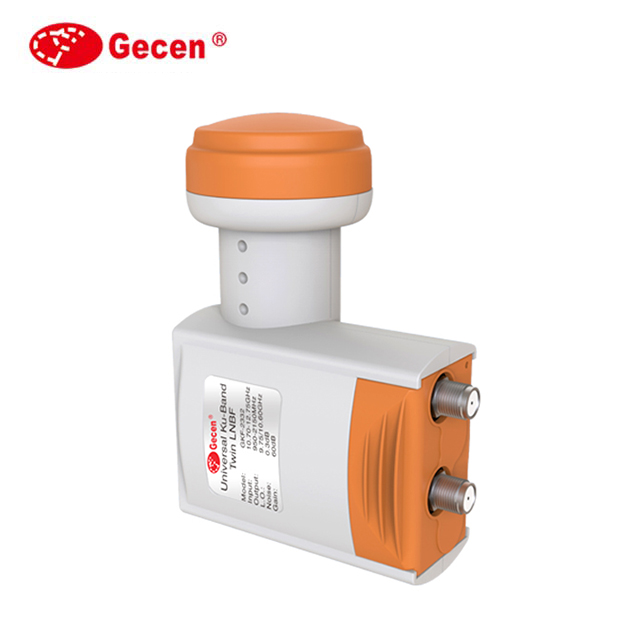

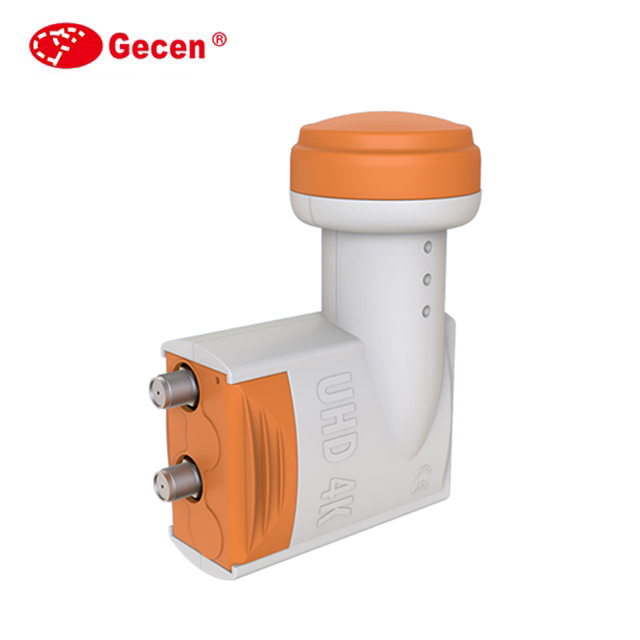

Universal Twin Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features UV-resistant weather protection housing.
Technical Specifications
Product Overview
Professional Satellite Signal Reception
This high-performance Twin Ku-Band LNB is engineered for reliable signal conversion for satellite television systems. It supports DVB-S2 standards, making it ideal for both high-definition (HD) and ultra-high-definition (UHD 4K) broadcasts. With its dual-output design, it enables seamless connectivity for two separate receivers or a twin-tuner setup, ensuring versatility for residential or commercial installations.
Technical Specifications
- Low Band Input Frequency
- 10.70-11.70 GHz
- High Band Input Frequency
- 11.70-12.75 GHz
- Low Band Output Frequency
- 950-1950 MHz
- High Band Output Frequency
- 1100-2150 MHz
Performance Metrics
- Gain Flatness
- ±0.5dB/27MHz
- Cross Pol. Isolation
- 20 dB
- Image Rejection
- 40 dB
- P1dB Output Power
- 0 dBm
Electrical Characteristics
- Low Band L.O. Frequency
- 9.75 GHz
- High Band L.O. Frequency
- 10.6 GHz
- DC Current Consumption
- 130 mA
- Output VSWR
- 2.0:1
Key Features
Product Advantages
- DVB-S2 (HD and UHD) compliant
- Low noise figure
- Low power consumption
- High cross-pol isolation
- High frequency stability
- Extremely heat and cold resistant
- UV-resistant weather protection housing
