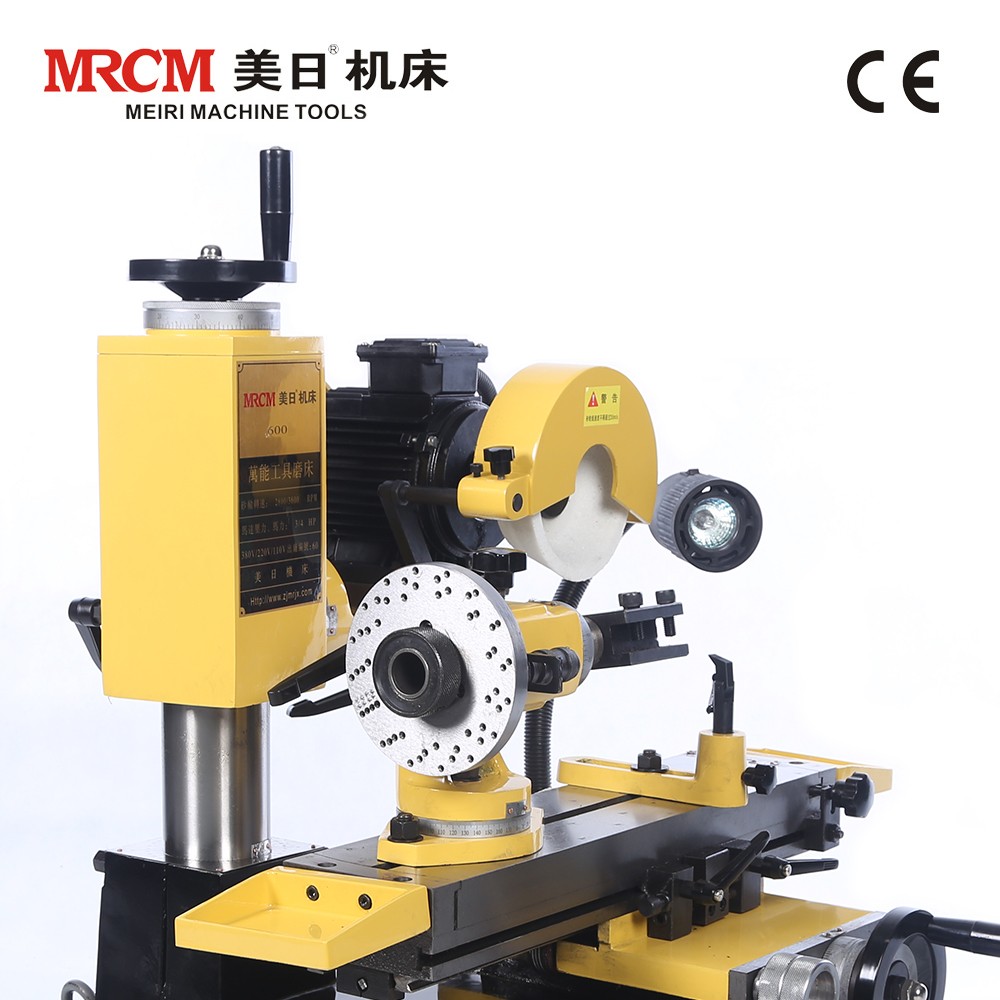

Universal Tool Grinder for Saw Blades and Cutters
This universal tool grinder is designed for sharpening various diameters, shapes, and angles of cutting tools. The working table uses a dovetail guide rail for good rigidity and steady operation, and the motor can rotate 360°.
Technical Specifications
Overview
Universal Tool Grinder

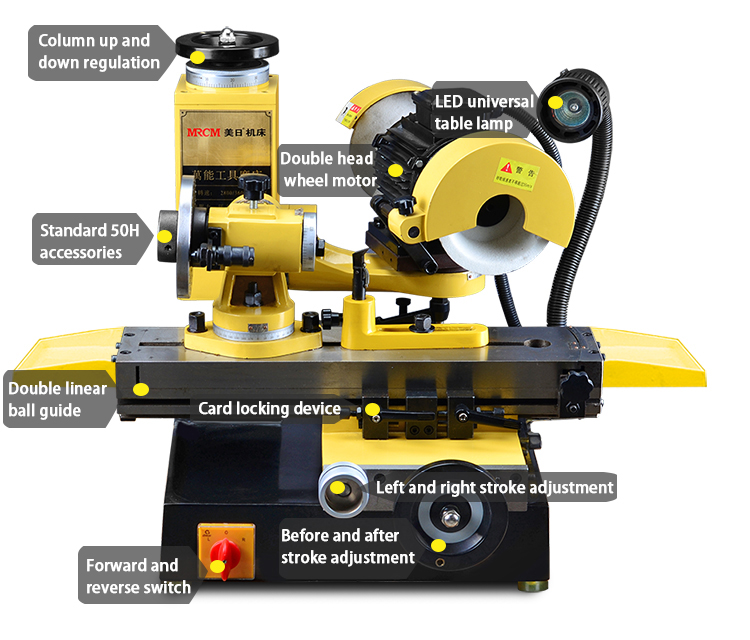

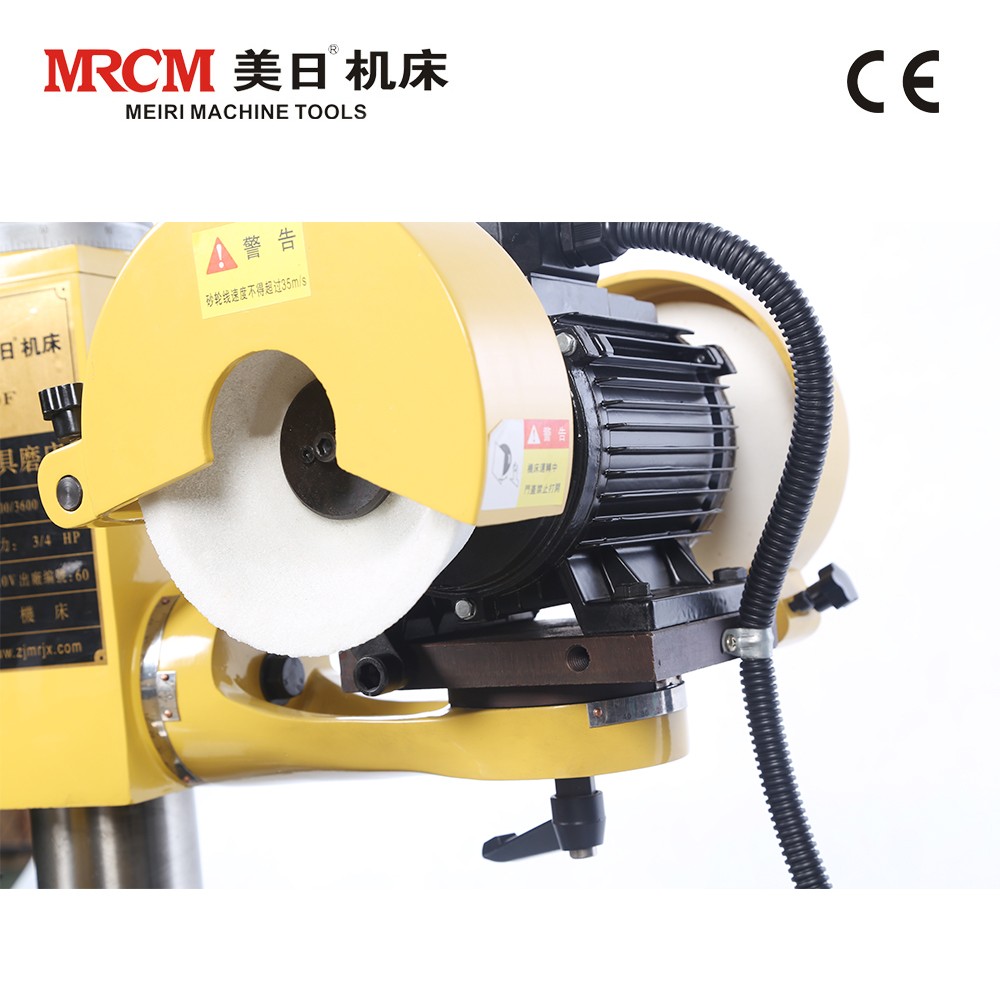

This universal tool grinder is designed for high-precision sharpening of a wide range of cutting tools, including end mills, disc cutters, lathe tools, and gear cutting tools. Featuring a robust bed platform with dovetail guide rails, it offers excellent rigidity and smooth operation. The motor rotates 360° in the horizontal plane, allowing for rapid clockwise and anticlockwise grinding wheel adjustment to enhance safety and efficiency.
Technical Specifications
- Max. Grinding Diameter
- 250 mm
- Worktable Diameter
- 300 mm
- Worktable Traveling Schedule
- 150 mm
- Elevating Distance of Wheel Head
- 160 mm
- Rotating Angle of Wheel Head
- 360 °
- Grinding Head Speed
- 2800 RPM
- Motor Power
- 0.75 HP
- Voltage
- 380V
- Grinding Wheel Size
- 150 x 16 x 32 mm
- Net Weight
- 165 kg
Capabilities

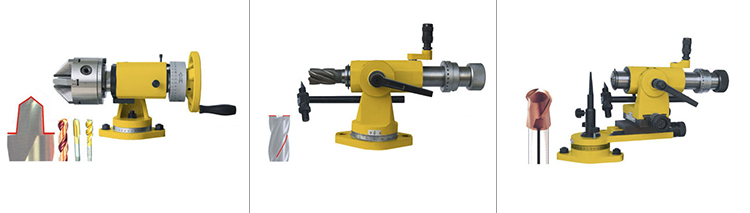

Optional Equipment
| Equipment Code | Function |
|---|---|
| 50E | Grind spiral milling cutter, ball end mill, R type lathe tool, graver |
| 50K | Grind drill bit, screw tap, side mill, round bar |
| 50D | Grind end mill, side mill |
| 50B | Table box |
| 50J | Thimble |

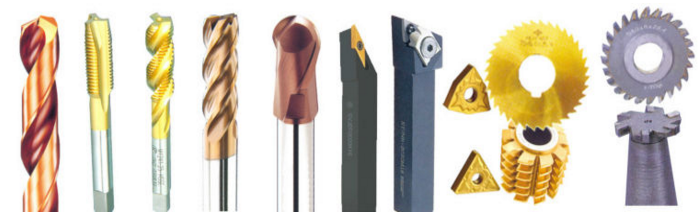

- Sharpening Scope
- End MillDisc CutterLathe ToolSquare Shape ToolDiamond Cutting ToolGear Cutting ToolSlot MillerReamer Bit
