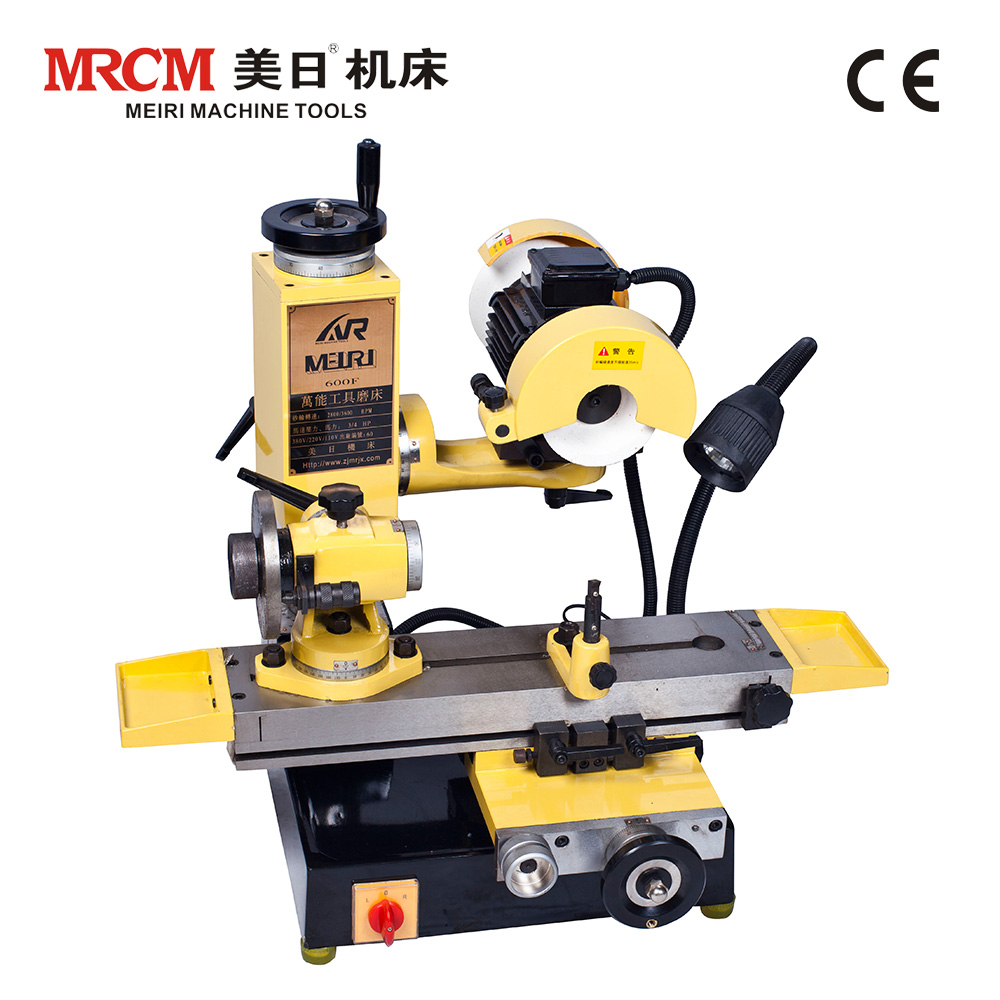

Universal Tool and Cutter Grinder
This universal tool and cutter grinder sharpens various tool shapes and angles. The worktable features a dovetail guide rail for stability and smooth operation.
Technical Specifications
Product Overview
Universal Tool and Cutter Grinder

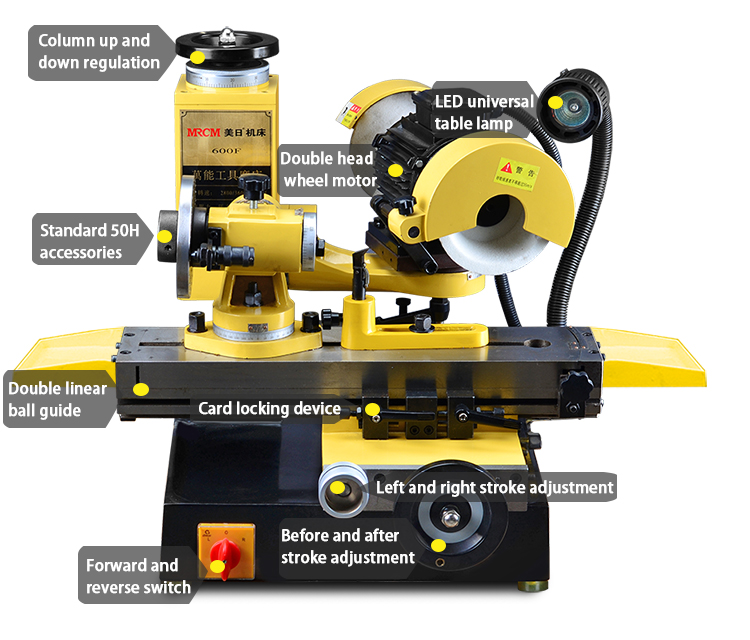

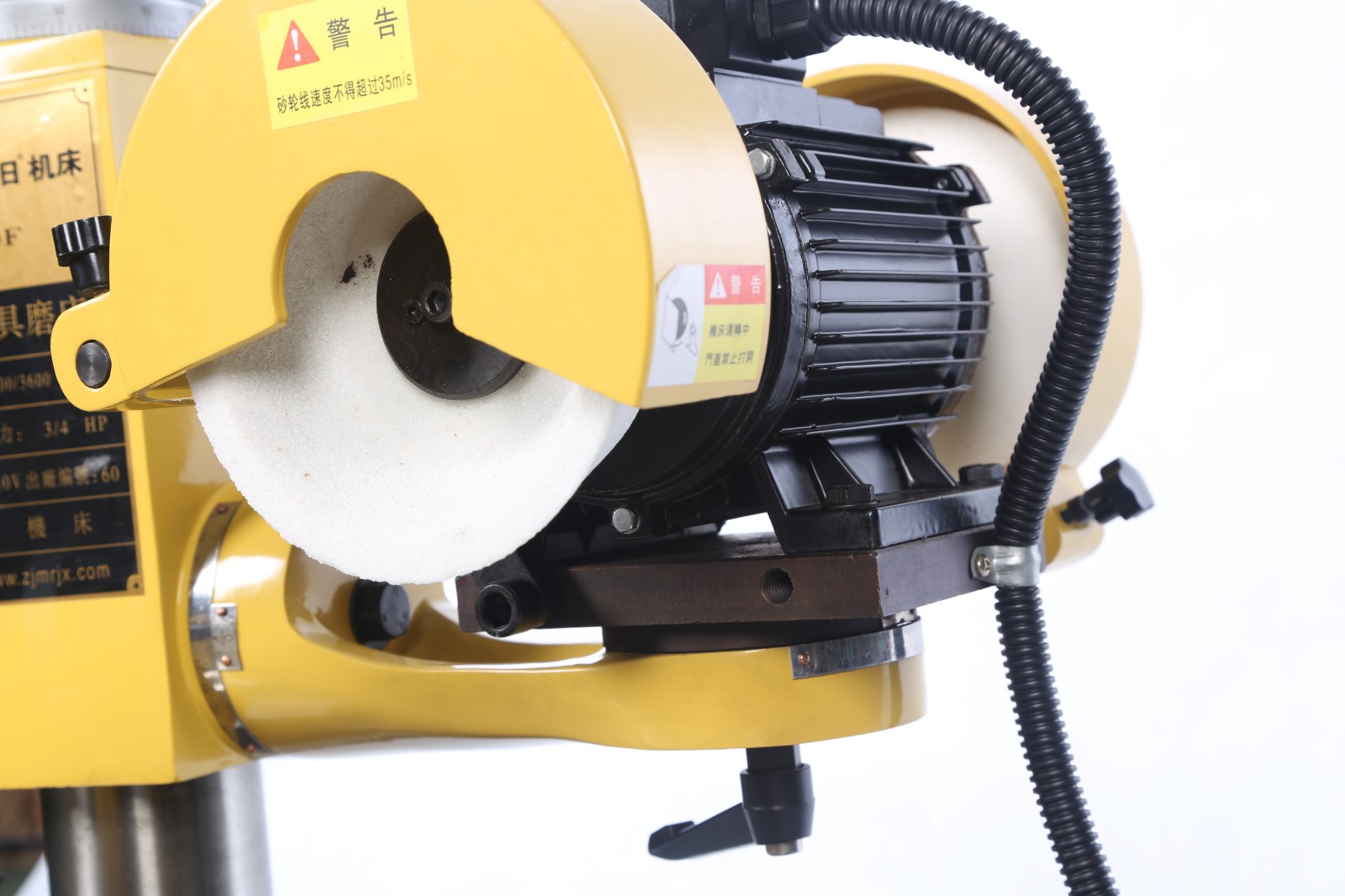

This universal tool and cutter grinder is a versatile machine designed for precision sharpening of a wide range of cutting tools, including end mills, lathe tools, gear cutting tools, and diamond cutting tools. It features a stable, robust construction utilizing dovetail or high-precision straight-line rolling guide rails for smooth, dexterous operation. The grinding head motor rotates 360° in the horizontal plane, allowing for rapid clockwise and anticlockwise wheel rotation to enhance safety and operational efficiency.
Performance Metrics
Key Performance Metrics
250 mm
Max Grinding Diameter
2,800 RPM
Grinding Head Speed
0.75 HP
Motor Power
Machine Dimensions & Capacity
Technical Specifications
| Feature | Specification |
|---|---|
| Worktable Area | 130 x 520 mm |
| Worktable Diameter | 300 mm |
| Worktable Travel | 150 mm |
| Wheel Head Elevation | 160 mm |
| Lateral Feed Distance | 190 mm |
| Head Holder Height | 135 mm |
| Spindle Taper | MO-Type 4# |
| Grinding Wheel Dimensions | 150 x 16 x 32 mm |
Physical Properties
Dimensions & Weight
- Dimensions: 65 x 65 x 70 cm
- Net Weight: 165 kg
- Gross Weight: 180 kg
Capabilities

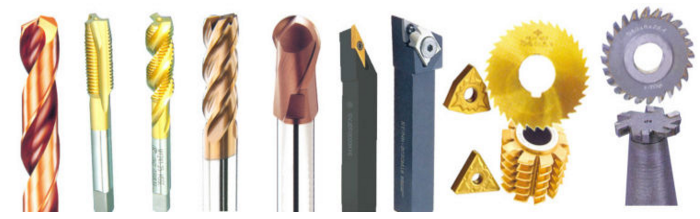

- Sharpening Scope
- End MillsLathe ToolsDisc CuttersGear Cutting ToolsDiamond Cutting ToolsSquare ToolsTapered Tools
