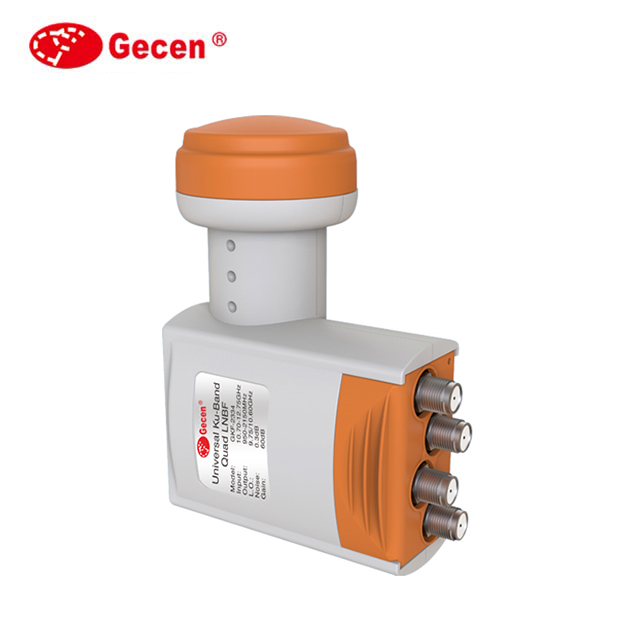

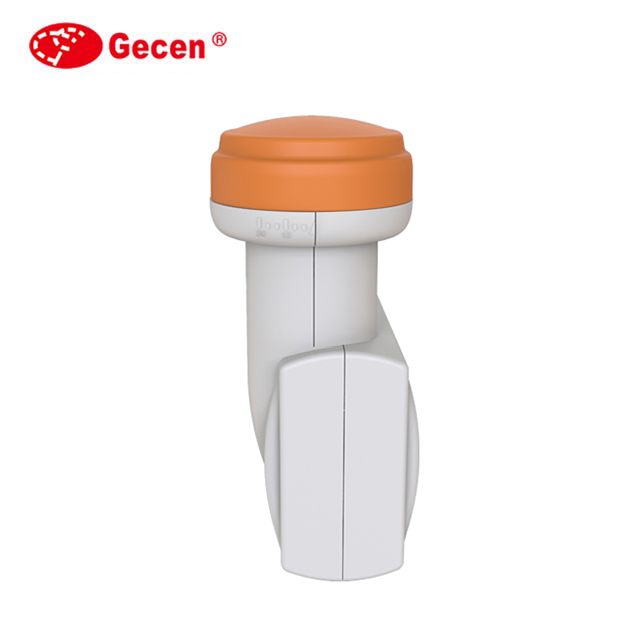

Universal Quad Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features UV-resistant weather protection housing and is extremely heat and cold resistant.
Technical Specifications
Product Overview
High-Performance Quad Ku-Band LNB
This Universal Quad Ku-Band LNB is engineered for reliable satellite TV reception, offering full compatibility with DVB-S2, HD, and UHD broadcasting standards. It features an integrated four-output design, allowing direct connectivity to multiple satellite receivers simultaneously. Built for durability, the unit includes a UV-resistant weather protection housing and a custom-fit cap to ensure consistent performance under extreme temperature conditions.
Technical Specifications
Input Frequency Range
- Low Band: 10.70 - 11.70 GHz
- High Band: 11.70 - 12.75 GHz
Output Frequency Range
- Low Band: 950 - 1950 MHz
- High Band: 1100 - 2150 MHz
Local Oscillator Frequency
- Low Band: 9.75 GHz
- High Band: 10.60 GHz
Performance Metrics
Key Performance Metrics
20 dB
Cross-Pol Isolation (Min.)
40 dB
Image Rejection (Min.)
0 dBm
P1dB Output Power (Min.)
- Gain Flatness
- ±0.5dB / 27MHz
- Output VSWR
- 2.0:1 (Typ.)
Product Features
- Key Advantages
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureLow Power ConsumptionHigh StabilityUV-Resistant
