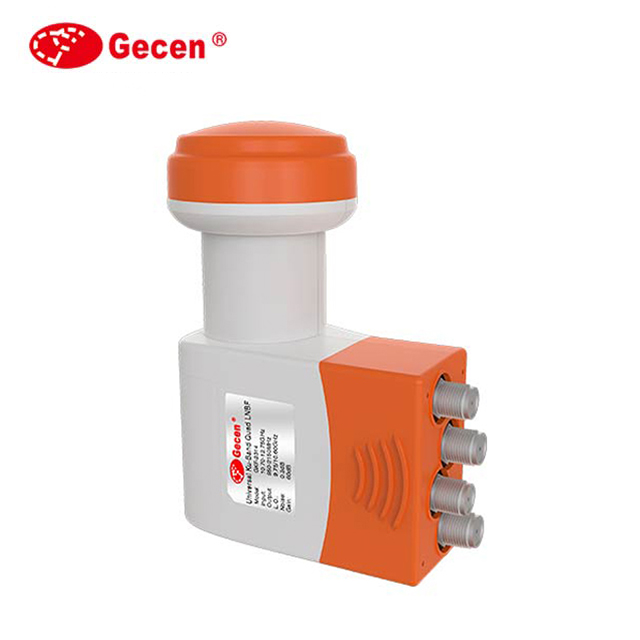

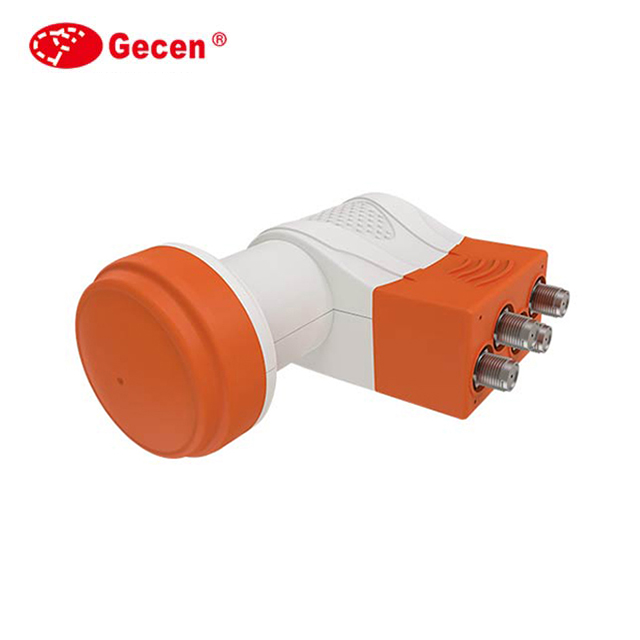

Universal Linear Quad Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features UV-resistant weather protection housing and is extremely heat and cold resistant.
Technical Specifications
Product Overview
Professional Ku-Band Quad LNB
This Universal Linear Quad Ku-Band LNB is engineered for high-performance satellite TV reception in both residential and commercial installations. It is fully DVB-S2 compliant, supporting both HD and UHD broadcast standards. Featuring four independent outputs, it provides reliable connectivity for multiple satellite receivers while maintaining excellent signal stability and low noise figures even in extreme weather conditions.
Key Features
- Core Advantages
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureLow Power ConsumptionUV-Resistant HousingWeather Resistant
Frequency Performance
Frequency Technical Data
| Parameter | Low Band | High Band |
|---|---|---|
| Input Range | 10.70~11.70 GHz | 11.70~12.75 GHz |
| Output Range | 950~1950 MHz | 1100~2150 MHz |
| L.O. Frequency | 9.75 GHz | 10.60 GHz |
Technical Specifications
Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
0 dBm
P1dB
Signal Quality
0.5 dB
Gain Flatness
2 :1
Output VSWR
