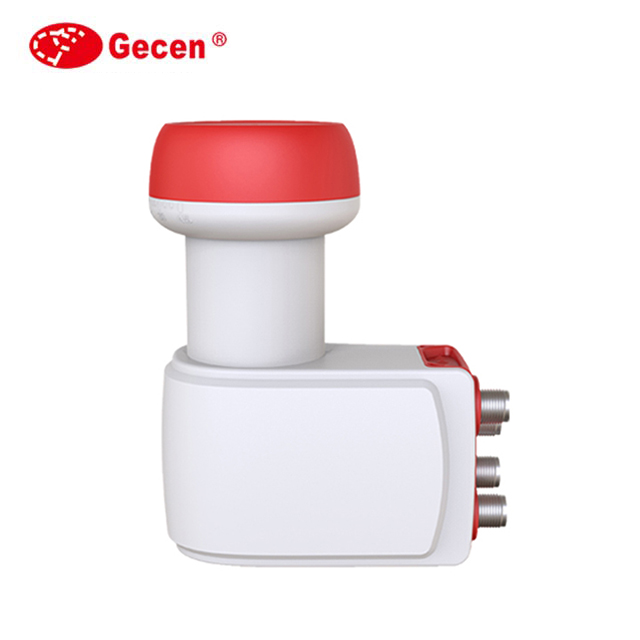

Universal Linear Quad Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant and features a low noise figure. Its UV-resistant housing with weather protection ensures durability in extreme conditions.
Technical Specifications
Product Overview
Universal Linear Quad Ku-Band LNB

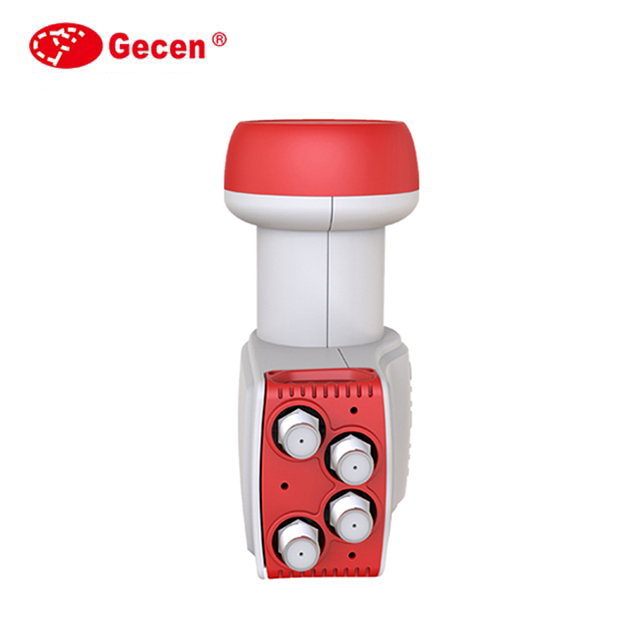

This high-performance Universal Linear Quad Ku-band LNB is designed for reliable satellite signal reception in both HD and UHD formats. It features four independent outputs, allowing seamless connection to multiple receivers or set-top boxes from a single dish. Built with a weather-resistant housing and protection cap, it ensures stable performance under extreme heat and cold conditions while maintaining a low noise figure.
Key Features
- Main Advantages
- DVB-S2 HD/UHD CompliantLow Noise FigureEnergy EfficientHigh Cross-Pol IsolationUV-Resistant HousingWeatherproof Design
Technical Specifications
Frequency Specifications
| Parameter | Low Band | High Band |
|---|---|---|
| Input Frequency | 10.70~11.70 GHz | 11.70~12.75 GHz |
| Output Frequency | 950~1950 MHz | 1100~2150 MHz |
| L.O. Frequency | 9.75 GHz | 10.60 GHz |
Performance Metrics
0.5 dB/27MHz
Gain Flatness
20 dB (Min)
Cross Pol. Isolation
40 dB (Min)
Image Rejection
0 dBm (Min)
P1dB
- Output VSWR
- 2.0:1 (Typ.)
