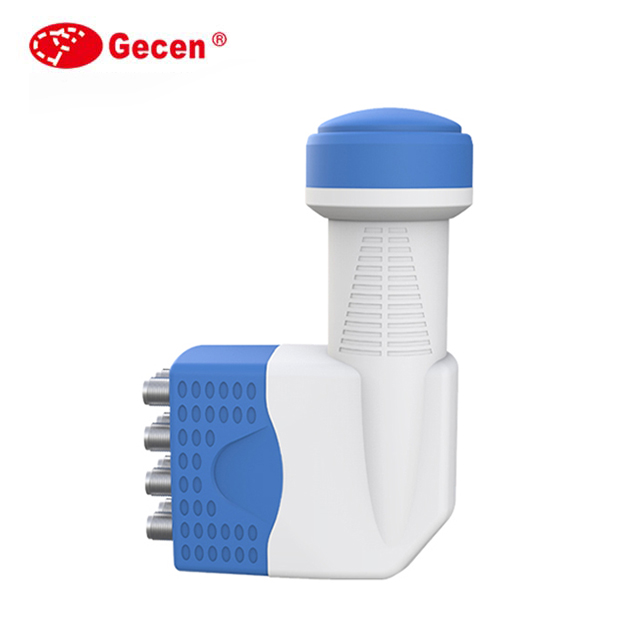

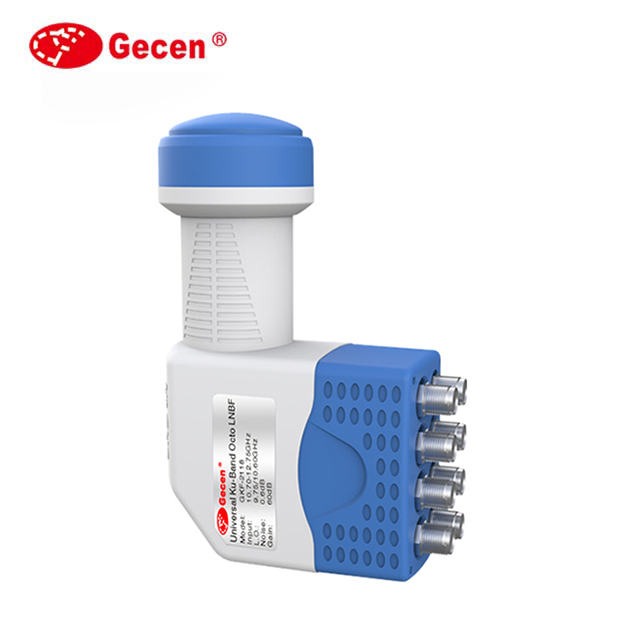

Universal Linear Octo Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant with low noise figure. It has eight outputs, allowing connection to multiple satellite receivers simultaneously.
Technical Specifications
Product Overview
Universal Linear Octo Ku-Band LNB
This Universal Ku-Band LNB is designed to deliver reliable satellite signal reception for HD and UHD DVB-S2 compliant systems. It features eight independent outputs, allowing seamless connection for multiple satellite receivers. Engineered with a low noise figure and high frequency stability, it provides professional-grade performance even in harsh environmental conditions.
Performance
Performance Metrics
20 dB
Cross Pol Isolation
40 dB
Image Rejection
2 Typ.
Output VSWR
- Key Features
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureLow Power ConsumptionHigh Cross-pol IsolationHigh Frequency StabilityUV-Resistant
Frequency Specifications
Input Frequency Range
- Low Band: 10.70-11.70 GHz
- High Band: 11.70-12.75 GHz
Output Frequency Range
- Low Band: 950-1950 MHz
- High Band: 1100-2150 MHz
- Local Oscillator Frequency
- 9.75 GHz
