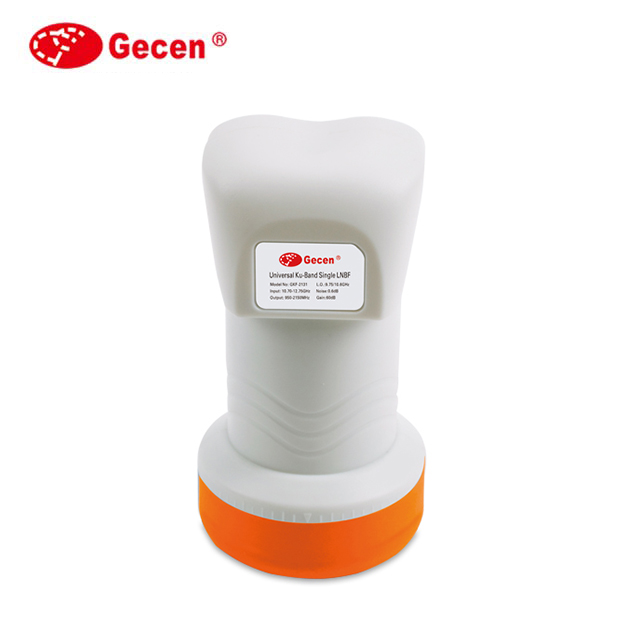

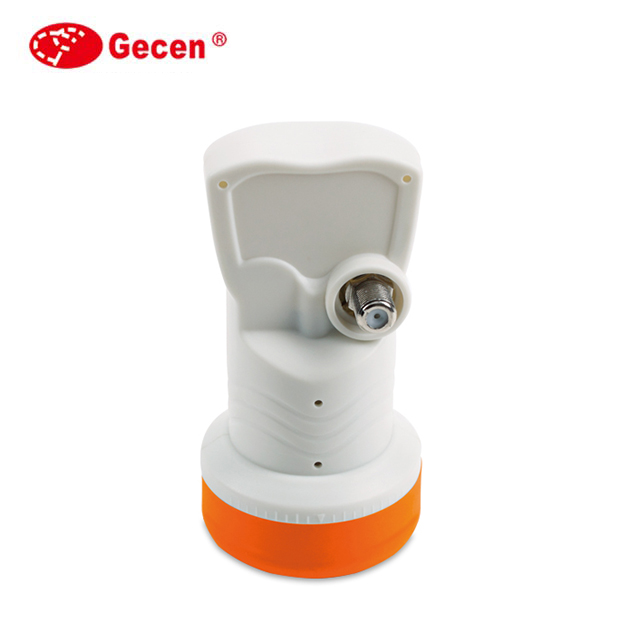

Universal Ku-Band Single LNB
This universal Ku-band single LNB is DVB-S2 compliant, supporting both HD and UHD. It features a low noise figure, high cross-polarization isolation, and is built with UV-resistant weather protection.
Technical Specifications
Product Overview
Universal Ku-Band Single LNB
This high-performance Universal Ku-Band Single LNB is engineered for reliable DVB-S2 satellite signal reception, supporting both HD and UHD formats. It features a robust, UV-resistant weather-protected housing with a custom-fit cap to ensure consistent performance under extreme heat and cold. Designed for efficiency, the unit offers a low noise figure, high frequency stability, and low power consumption for professional-grade satellite TV installations.
Key Features
- Main Advantages
- DVB-S2 CompliantHD & UHD ReadyLow Noise FigureUV-ResistantWeatherproofHigh Frequency Stability
Technical Specifications
Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
0 dBm
P1dB Output
100 mA
Typ. Current Consumption
Detailed Technical Data
| Parameter | Specification |
|---|---|
| Low Band Input Frequency | 10.70~11.70 GHz |
| High Band Input Frequency | 11.70~12.75 GHz |
| Low Band Output Frequency | 950~1950 MHz |
| High Band Output Frequency | 1100~2150 MHz |
| Gain Flatness | ±0.5dB/27MHz |
| Output VSWR | 2.0:1 (Typ.) |
| LO Frequency Stability | ±1.0MHz (Max.) @+25℃ |
