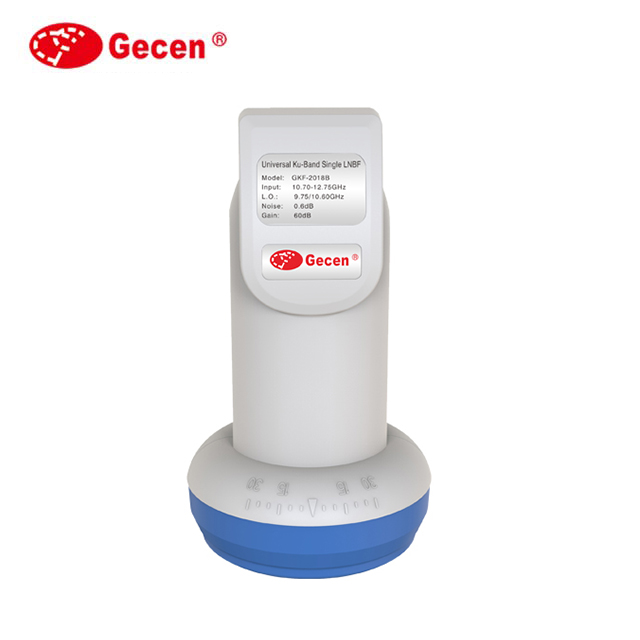

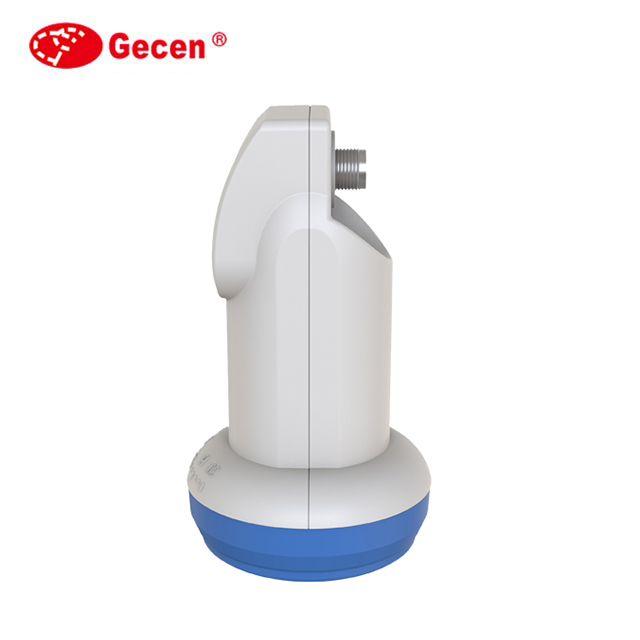

Universal Ku-Band Single LNB
This LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features UV-resistant weather protection housing.
Technical Specifications
Product Overview
Universal Ku-Band Single LNB
This Universal Ku-Band Single LNB is designed for professional satellite signal reception, offering full compatibility with DVB-S2, HD, and UHD broadcasting standards. Engineered for resilience, it features a UV-resistant weather-proof housing and a custom-fit cap to ensure consistent performance in extreme heat and cold. It provides reliable signal integrity through high cross-polarization isolation and exceptional frequency stability, making it an ideal solution for robust satellite TV systems.
Key Features
- Advanced Features
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureLow Power ConsumptionUV-Resistant HousingHigh Frequency Stability
Technical Specifications
Frequency Ranges
| Band | Input Range | Output Range | L.O. Frequency |
|---|---|---|---|
| Low Band | 10.70-11.70 GHz | 950-1950 MHz | 9.75 GHz |
| High Band | 11.70-12.75 GHz | 1100-2150 MHz | 10.60 GHz |
Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
0 dBm
P1dB
100 mA
DC Current Consumption
Signal Quality
- Gain Flatness: ±0.5dB/27MHz
- Output VSWR: 2.0:1 (Typ.)
- L.O. Frequency Stability: ±1.0MHz (Max.) at +25°C
